Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel

Pins -> Wire Lock Lynch -> Double Wire -> Square -> Stainless Steel

There are 6 products in the sub-categories of Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel. Browse the Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel products table.

Category Details

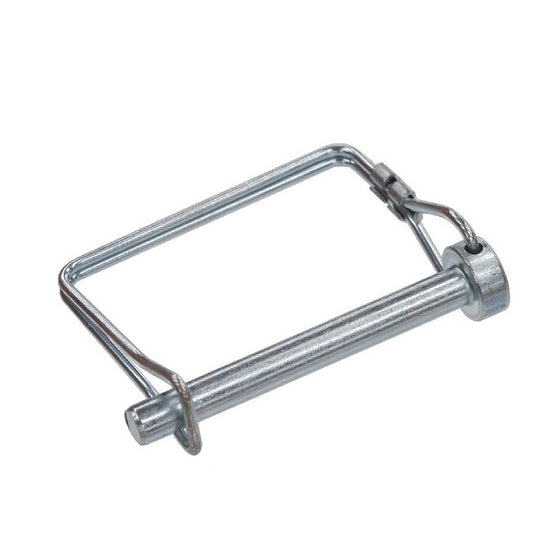

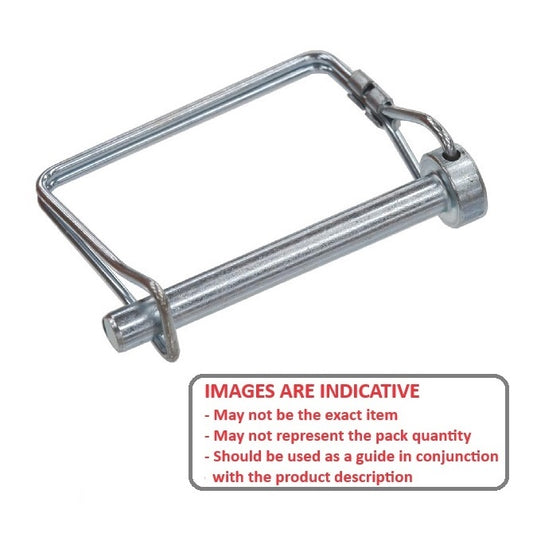

A selection of Stainless Steel Square Double Wire Wire Lock Lynch Pins. Also known as snapper pins

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Pins - Wire Lock Lynch - Double Wire - Square - Stainless Steel category on the Small Parts & Bearings online store.
    Pin Diameter (A) Grip Length (C) Wire Thickness (T) Clearance To Wire (E) Indicative
    Pin Diameter (A)
    6.35
    mm
    - 0.051 / - 0.178
    (Equiv. 0.25 in.)
    Grip Length (C)
    57.15
    mm
    + 0.00 / - 6.35
    (Equiv. 2.25 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    Clearance To Wire (E)
    41.3
    mm
    		Wire Lock Lynch Pins - 6.35x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Pin Length (B): 63.5 mm    Weight Per Piece: 39 g    Finish: Passivated
    Part Number: LYP-Q2-064-057-S4
    Wire Lock Lynch Pins - 6.35x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    100 Available Now | Further orders can be expected around Mon, Sep 22, 2025
    $6.14 AUD
    $6.14 AUD
    Each
    Quantity Required

    100 Available Now. Backorder if more than 100.
    Pin Diameter (A) Grip Length (C) Wire Thickness (T) Indicative
    Pin Diameter (A)
    6.35
    mm
    - 0.051 / - 0.178
    (Equiv. 0.25 in.)
    Grip Length (C)
    57.15
    mm
    + 0.00 / - 6.35
    (Equiv. 2.25 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    		Wire Lock Lynch Pins - 6.35x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Clearance To Wire (E): 41.3 mm    Pin Length (B): 63.5 mm    Weight Per Piece: 39 g    Finish: Passivated
    Part Number: LYP-Q2-064-057-S4
    Wire Lock Lynch Pins - 6.35x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    100 Available Now | Further orders can be expected around Mon, Sep 22, 2025
    $6.14 AUD
    $6.14 AUD
    Each
    Quantity Required

    100 Available Now. Backorder if more than 100.
    Pin Diameter (A)
    6.35
    mm
    - 0.051 / - 0.178
    (Equiv. 0.25 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    Clearance To Wire (E)
    41.3
    mm
    		Wire Lock Lynch Pins - 6.35x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Pin Length (B): 69.9 mm    Weight Per Piece: 39 g    Finish: Passivated
    Part Number: LYP-Q2-064-064-S4 (2 Pcs)
    Wire Lock Lynch Pins - 6.35x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    2 units (4 pcs) Available Now | Further orders can be expected around Thu, Oct 16, 2025
    $13.32 AUD
    $13.32 AUD
    Per 2
    Quantity Required

    2 units (4 pcs) Available Now. Backorder if more than 2.
    Pin Diameter (A)
    6.35
    mm
    - 0.051 / - 0.178
    (Equiv. 0.25 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    		Wire Lock Lynch Pins - 6.35x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Clearance To Wire (E): 41.3 mm    Pin Length (B): 69.9 mm    Weight Per Piece: 39 g    Finish: Passivated
    Part Number: LYP-Q2-064-064-S4 (2 Pcs)
    Wire Lock Lynch Pins - 6.35x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    2 units (4 pcs) Available Now | Further orders can be expected around Thu, Oct 16, 2025
    $13.32 AUD
    $13.32 AUD
    Per 2
    Quantity Required

    2 units (4 pcs) Available Now. Backorder if more than 2.
    Pin Diameter (A)
    7.94
    mm
    - 0.051 / - 0.178
    (Equiv. 0.313 in.)
    Grip Length (C)
    57.15
    mm
    + 0.00 / - 6.35
    (Equiv. 2.25 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    Clearance To Wire (E)
    44.5
    mm
    		Wire Lock Lynch Pins - 7.94x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Pin Length (B): 63.5 mm    Weight Per Piece: 48 g    Finish: Passivated
    Part Number: LYP-Q2-079-057-S4
    Wire Lock Lynch Pins - 7.94x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    Out of Stock | Backorder Now | Orders can be expected around Fri, May 15, 2026
    $8.05 AUD
    $9.65 AUD $8.05 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    7.94
    mm
    - 0.051 / - 0.178
    (Equiv. 0.313 in.)
    Grip Length (C)
    57.15
    mm
    + 0.00 / - 6.35
    (Equiv. 2.25 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    		Wire Lock Lynch Pins - 7.94x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Clearance To Wire (E): 44.5 mm    Pin Length (B): 63.5 mm    Weight Per Piece: 48 g    Finish: Passivated
    Part Number: LYP-Q2-079-057-S4
    Wire Lock Lynch Pins - 7.94x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    Out of Stock | Backorder Now | Orders can be expected around Fri, May 15, 2026
    $8.05 AUD
    $9.65 AUD $8.05 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    7.94
    mm
    - 0.051 / - 0.178
    (Equiv. 0.313 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    Clearance To Wire (E)
    44.5
    mm
    		Wire Lock Lynch Pins - 7.94x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Pin Length (B): 69.9 mm    Weight Per Piece: 54 g    Finish: Passivated
    Part Number: LYP-Q2-079-064-S4
    Wire Lock Lynch Pins - 7.94x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    Out of Stock | Backorder Now | Orders can be expected around Fri, May 15, 2026
    $8.41 AUD
    $10.09 AUD $8.41 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    7.94
    mm
    - 0.051 / - 0.178
    (Equiv. 0.313 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    		Wire Lock Lynch Pins - 7.94x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Clearance To Wire (E): 44.5 mm    Pin Length (B): 69.9 mm    Weight Per Piece: 54 g    Finish: Passivated
    Part Number: LYP-Q2-079-064-S4
    Wire Lock Lynch Pins - 7.94x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    Out of Stock | Backorder Now | Orders can be expected around Fri, May 15, 2026
    $8.41 AUD
    $10.09 AUD $8.41 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    57.15
    mm
    + 0.00 / - 6.35
    (Equiv. 2.25 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    Clearance To Wire (E)
    38.1
    mm
    		Wire Lock Lynch Pins - 9.53x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Pin Length (B): 63.5 mm    Weight Per Piece: 57 g    Finish: Passivated
    Part Number: LYP-Q2-095-057-S4
    Wire Lock Lynch Pins - 9.53x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    21 Available Now | Further orders can be expected around Mon, Sep 22, 2025
    $10.95 AUD
    $10.95 AUD
    Each
    Quantity Required

    21 Available Now. Backorder if more than 21.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    57.15
    mm
    + 0.00 / - 6.35
    (Equiv. 2.25 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    		Wire Lock Lynch Pins - 9.53x57.15x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Clearance To Wire (E): 38.1 mm    Pin Length (B): 63.5 mm    Weight Per Piece: 57 g    Finish: Passivated
    Part Number: LYP-Q2-095-057-S4
    Wire Lock Lynch Pins - 9.53x57.15x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    21 Available Now | Further orders can be expected around Mon, Sep 22, 2025
    $10.95 AUD
    $10.95 AUD
    Each
    Quantity Required

    21 Available Now. Backorder if more than 21.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    Clearance To Wire (E)
    38.1
    mm
    		Wire Lock Lynch Pins - 9.53x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Pin Length (B): 69.9 mm    Weight Per Piece: 63 g    Finish: Passivated
    Part Number: LYP-Q2-095-064-S4
    Wire Lock Lynch Pins - 9.53x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
    $11.32 AUD
    $13.58 AUD $11.32 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Pin Diameter (A)
    9.53
    mm
    - 0.051 / - 0.178
    (Equiv. 0.375 in.)
    Grip Length (C)
    63.50
    mm
    + 0.00 / - 6.35
    (Equiv. 2.5 in.)
    Wire Thickness (T)
    2.3
    mm

    (Equiv. 0.091 in.)
    		Wire Lock Lynch Pins - 9.53x63.5x2.3 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
    Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Clearance To Wire (E): 38.1 mm    Pin Length (B): 69.9 mm    Weight Per Piece: 63 g    Finish: Passivated
    Part Number: LYP-Q2-095-064-S4
    Wire Lock Lynch Pins - 9.53x63.5x2.3 mm Double Wire - Stainless Steel 304 Similar to A2, 18-8 HRB80 Pin
    Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025
    $11.32 AUD
    $13.58 AUD $11.32 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
