CCI-00953-CZY (PK-5)

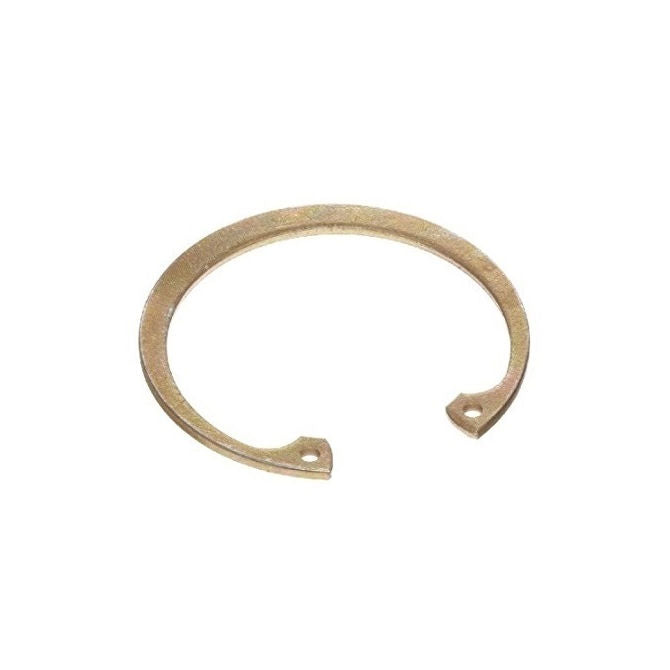

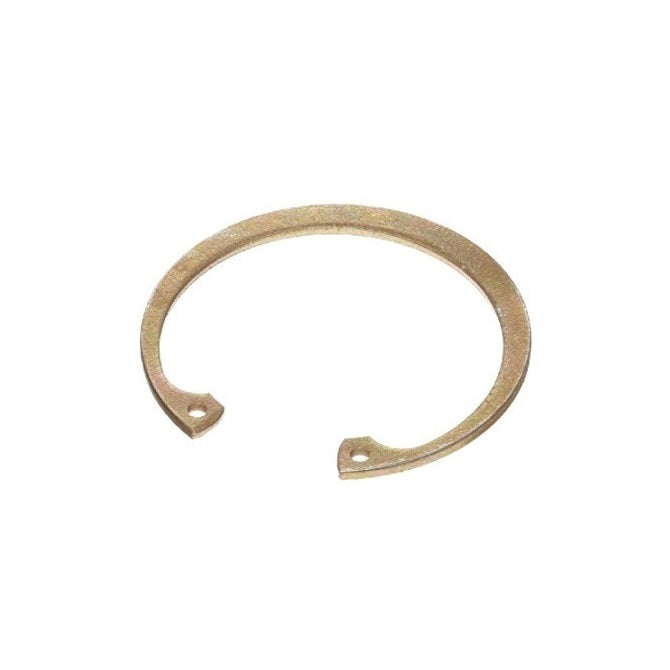

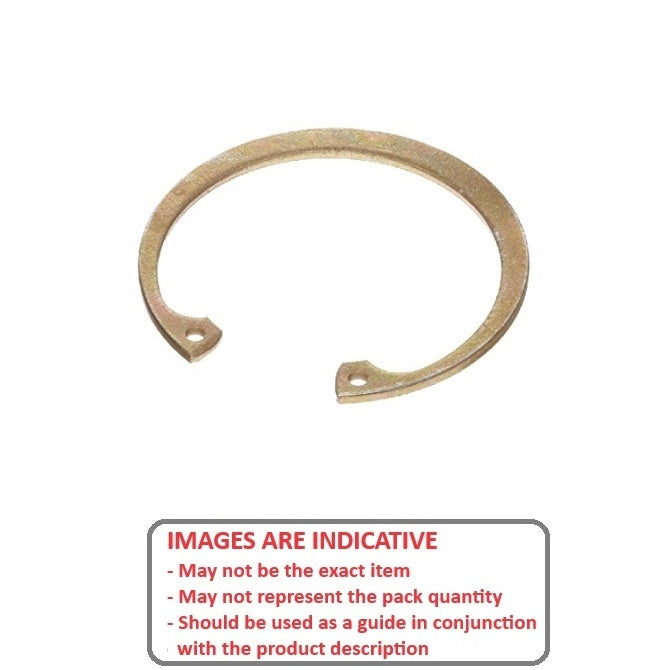

Internal Retaining Rings - 9.53x0.64x10.08 mm Circlips - Carbon Steel Zinc Plated Circlip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Order 50 or more packs of 5 (250 pcs)
for $0.77 AUD per 5 pack
Couldn't load pickup availability
3/8 inch Circlip - 9.53x0.64x10.08 mm Internal Retaining Rings - Carbon Steel Zinc Plated - Sold per pack of 5:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated
Product Details
Additional stock available from USA subject to Prior Sale = 971

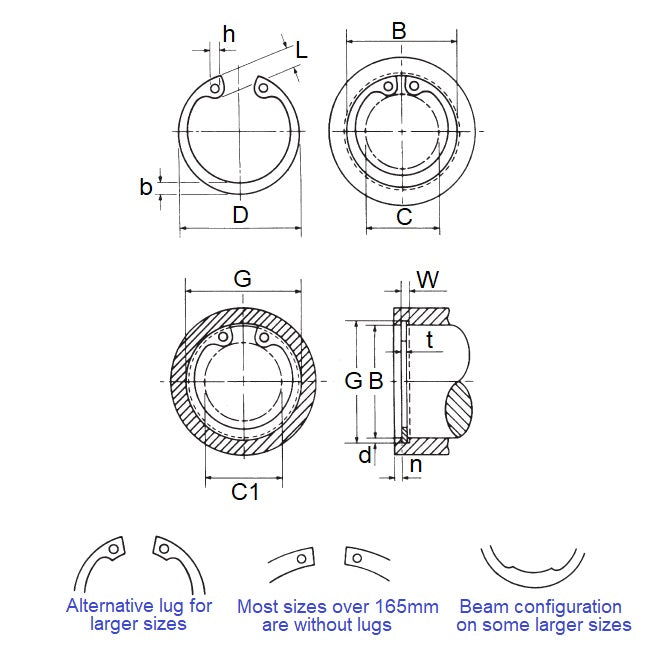

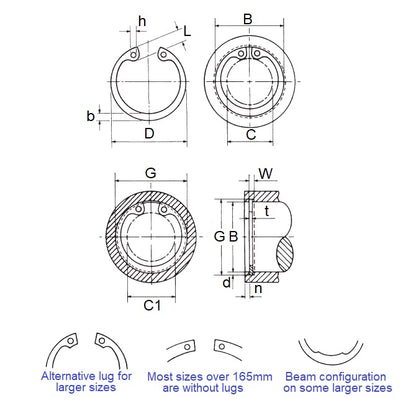

Housing Bore (B): 9.53mm
(9.53mm is 0.375 in.)
Carbon Steel Zinc Plated
- Housing Bore (B): 9.53mm
(9.53mm is 0.375 in.)
- Clip Thickness (T): 0.64mm
+ 0.00 / - 0.05
(0.64mm is 0.025 in.)
- Groove Dia. (Dg): 10.08mm
+/- 0.050
(10.08mm is 0.397 in.)
- Approx. Loose Circlip OD (Dr): 10.54mm
+ 0.25 / - 0.13
- Groove Width (W): 0.74mm
+ 0.08 / - 0.00
- Clearance in Bore (C): 5.08mm
- Clearance in Groove (C1): 5.59mm
- Min. Lug Diameter (h): 0.99mm
- Min. Extension (n): 0.84
- Standard: MIL-16625
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98409A131
- Huyett® HO-037-ZD
- NoCor® HO-037-ZD
- Small Parts RI-6
- HO037ZD
- RI6
- N13000037AZD
- N1300-0037AZD
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CCI00953CZY, CCI00953
