LCB-0095-016-022-TP

Ball Bearings Linear - 9.53 15.875 to 15.888 22.225 mm Standard Closed - Chrome Steel Bearing

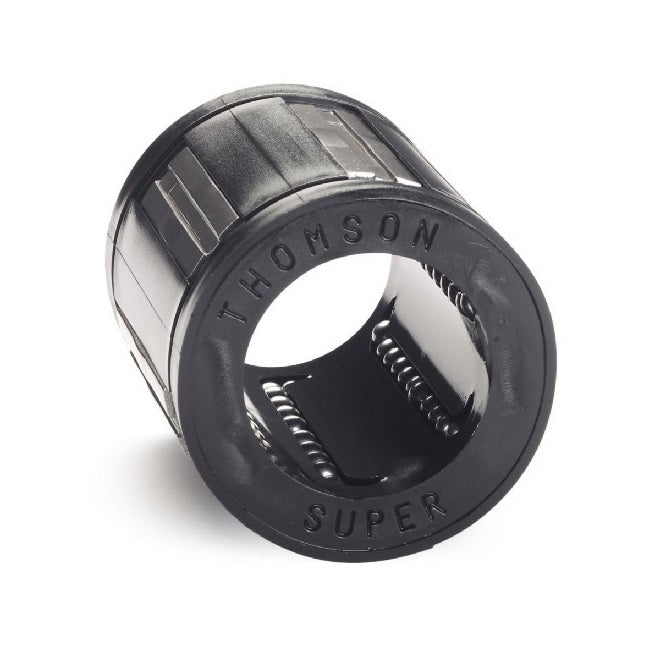

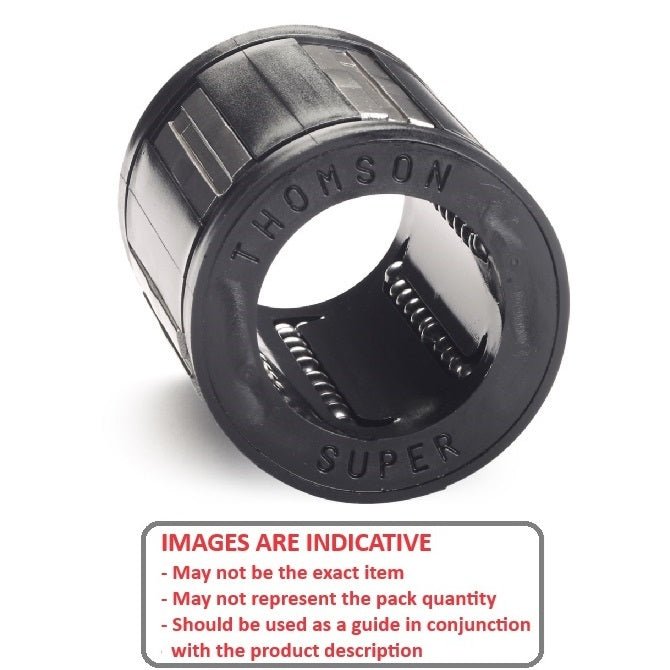

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Ball Bearings Linear - 9.53 15.875 to 15.888 - 22.225 -+0.00-0.38- - Chrome Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$10.00 AUD
$19.00 AUD $10.00 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 3 available now
Only 3 may be ordered online. If you need a large quantity, please contact us.

Base Category: Linear - Ball Bearings

Top Level Category: Linear - Ball Bearings - Standard Closed - Thomson Precision

Product Details

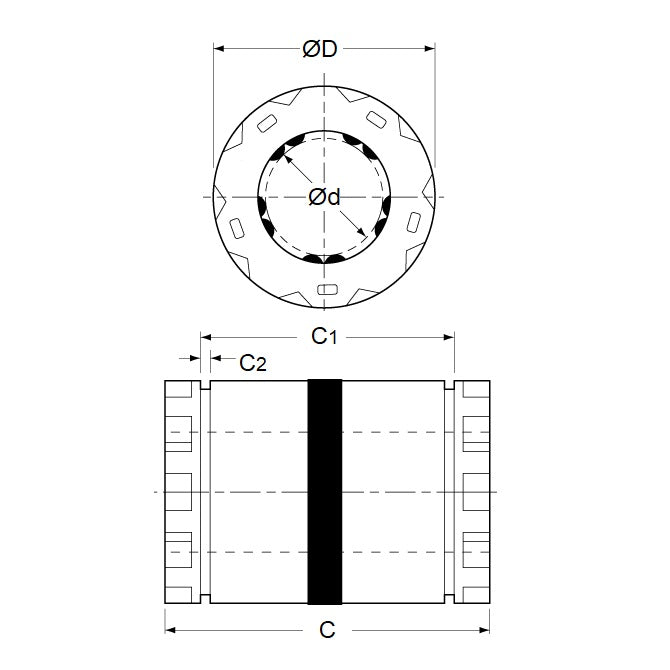

Nominal Shaft Size (T): 9.53mm
(9.53mm is 0.375 in.)

Chrome Steel
  • Nom. Outer Diameter (D): 15.875 to 15.888mm
    (15.875 to 15.888mm is 0.625 in.)
  • Length ( L / l ): 22.225mm
    +0.00-0.38
    (22.225mm is 0.875 in.)
  • Dynamic Load: 155N
  • Groove Distance (C1): 16.256 (+0.00-0.41)
  • Rec. Housing Bore (Press): 15.850 to 15.862mm
  • Rec. Shaft Diameter (T): 9.512 to 9.525mm
  • Groove Width (C2): 0.99mm
  • Ball Cicuits (Nr.): 4

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • QBC TA-61014
  • TA61014

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
