LCB-0095-016-022-TP - Datasheet
MBA
Category Information

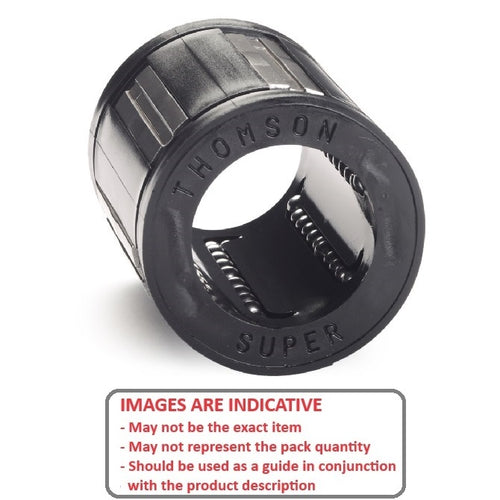

Linear - Ball Bearings - Standard Closed - Thomson PrecisionThomson Precision Standard Closed Ball Bearings Linear. For running on shafts fixed at the ends.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

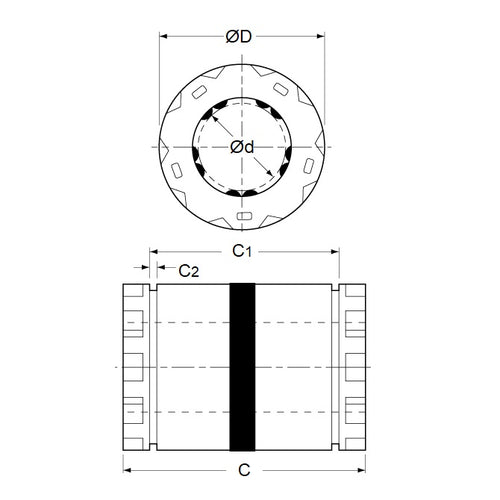

- Nominal Shaft Size (T)
:
9.53
mm
(Equiv. 0.375 in.) - Nom. Outer Diameter (D)
15.875 to 15.888
mm
(Equiv. 0.625 in.) - Length ( L / l )
22.225
mm
+0.00-0.38
(Equiv. 0.875 in.) - Dynamic Load 155 N
- Groove Distance (C1) 16.256 (+0.00-0.41)
- Rec. Housing Bore (Press) 15.850 to 15.862 mm
- Rec. Shaft Diameter (T) 9.512 to 9.525 mm
- Groove Width (C2) 0.99 mm
- Ball Cicuits (Nr.) 4
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- QBC TA-61014
- TA61014
