BLP-095-0508-T-PC (Each)
Ball Lock Pins - 9.53x50.8 mm - Carbon Steel No Shoulder Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Couldn't load pickup availability

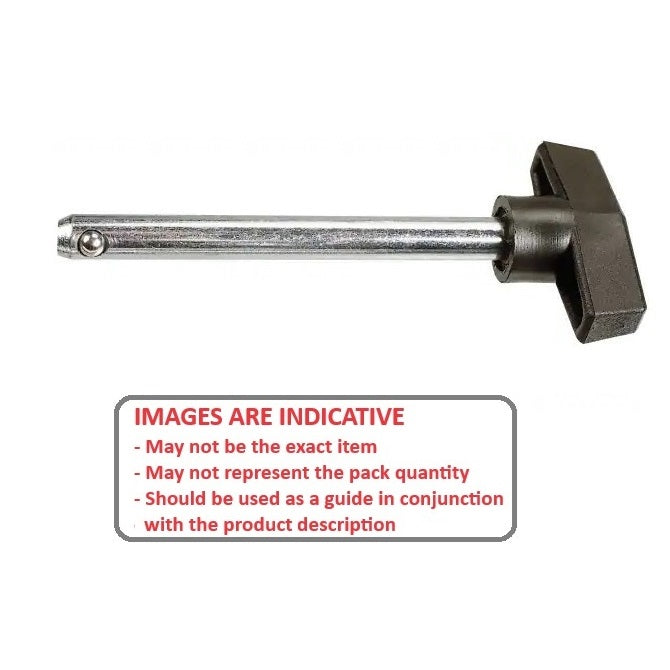

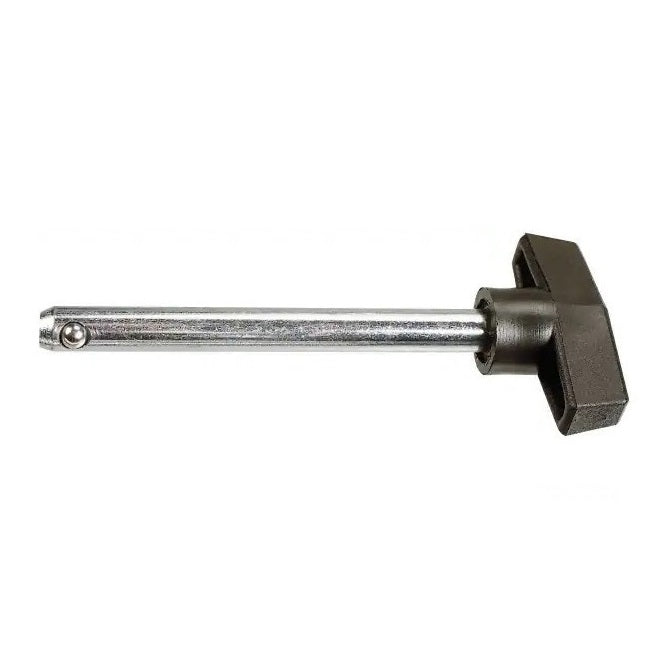

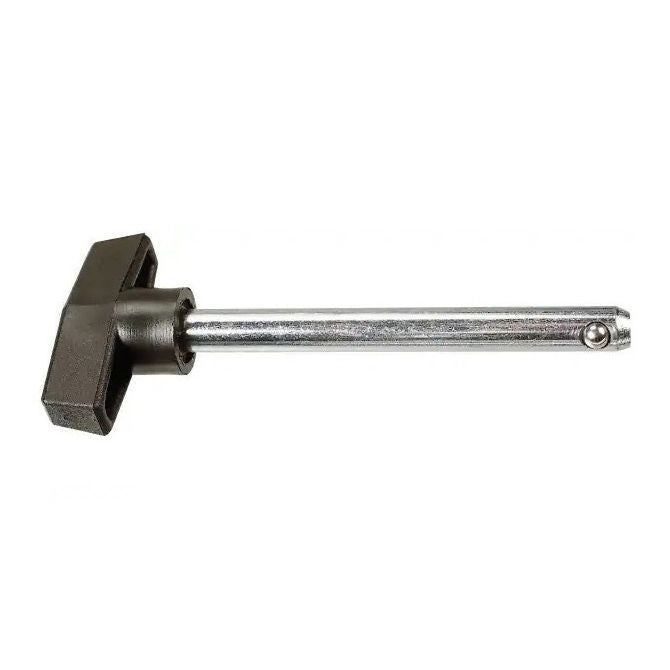

3/8x2 inch Pin - 9.53x50.8 mm - Carbon Steel Ball Lock Pins - Carbon Steel with Plastic Handle - Sold per Each:
Base Category: Pins - Ball Lock
Top Level Category: Pins - Ball Lock - No Shoulder - Tee Handle - Plastic Handle
Product Details
Deleted Item. Available while stocks last.
Nominal Diameter: 9.53mm
(9.53mm is 0.375 in.)
Carbon Steel with Plastic Handle
- Nominal Diameter: 9.53mm
(9.53mm is 0.375 in.)

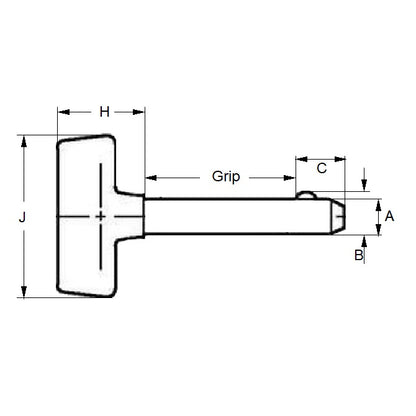

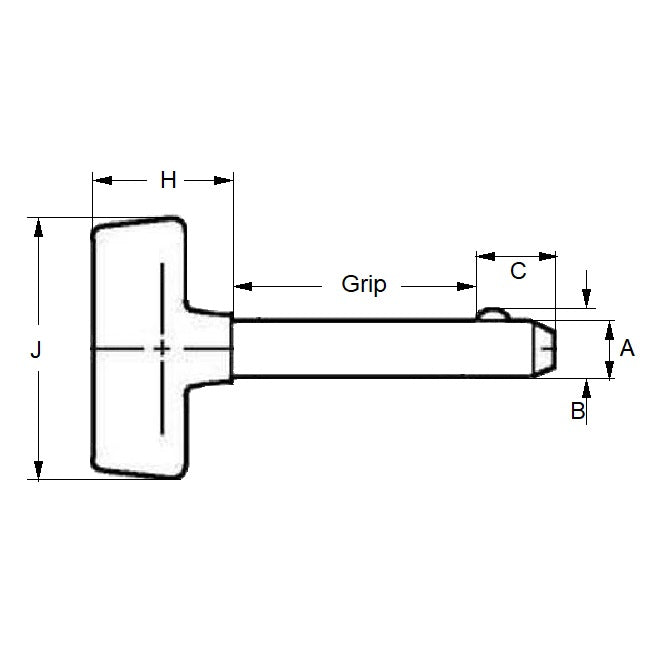

- Grip Length (B): 50.80mm
(50.80mm is 2 in.)
- Pin Material Grade: Carbon Steel
- Locking Ball to End (C): 12.70mm
- Open Ball Distance (B): 10.82mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 92490A654
- Reid Tool® FPF-610
- FPF610
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLP0950508TPC, BLP0950508
