BLP-095-1016-BT-S4 (Each)

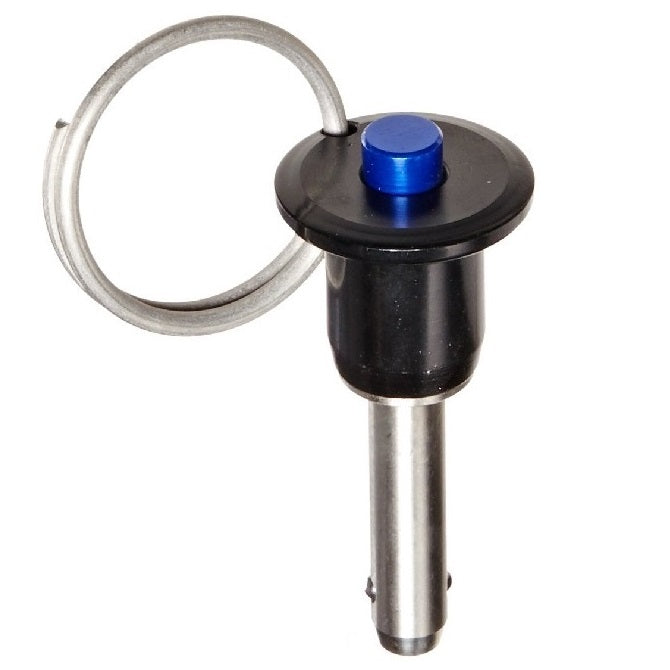

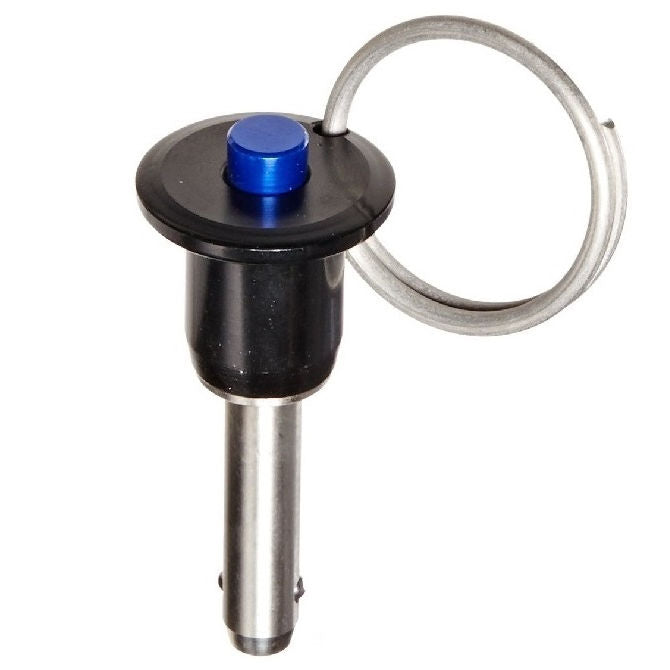

Ball Lock Pins - 9.53x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle Button Handle Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Order 50 or more
for $35.71 AUD Each
Couldn't load pickup availability
3/8x4 inch Pin - 9.53x101.6 mm - 304 Stainless Steel Shank / Aluminium Handle Ball Lock Pins - Stainless Steel 304 with Aluminium Handle - Sold per Each:
Base Category: Pins - Ball Lock
Top Level Category: Pins - Ball Lock - Button Handle - Commercial 304 Stainless
Product Details
Nominal Diameter: 9.53mm(9.53mm is 0.375 in.)
Stainless Steel 304 with Aluminium Handle
- Nominal Diameter: 9.53mm
(9.53mm is 0.375 in.)
- Grip Length (B): 101.60mm
(101.60mm is 4 in.)
- Pin Material Grade: 304 Stainless Steel Shank / Aluminium Handle

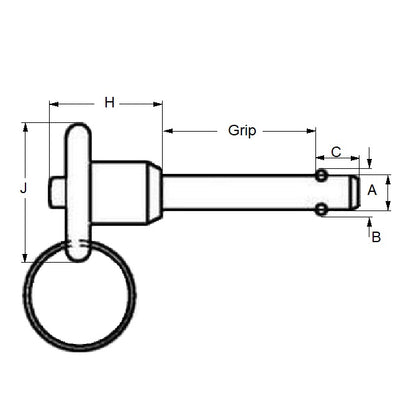

- Locking Ball to End (C): 9.27mm
- Open Ball Distance (B): 11.18mm
- Max. Handle Height (H): 26.42mm
- Max. Handle Diameter (J): 28.83mm
- Min. Handle Diameter (J): 22.23mm
- Pull Out Strength: 200.00Kg
- Calc. Double Shear Strength: 2000Kg
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 90985A317
- Reid Tool® CPB-100
- CPB100
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLP0951016BTS4, BLP0951016
