MB2-0010-041 (Each)

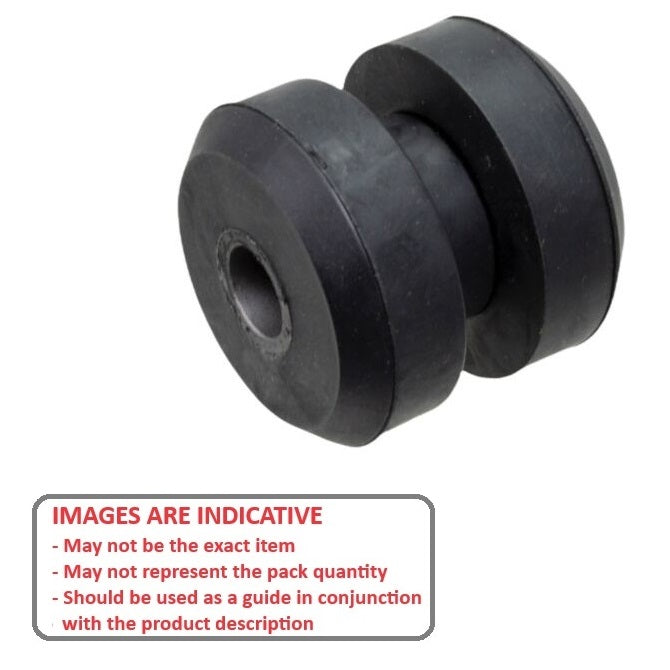

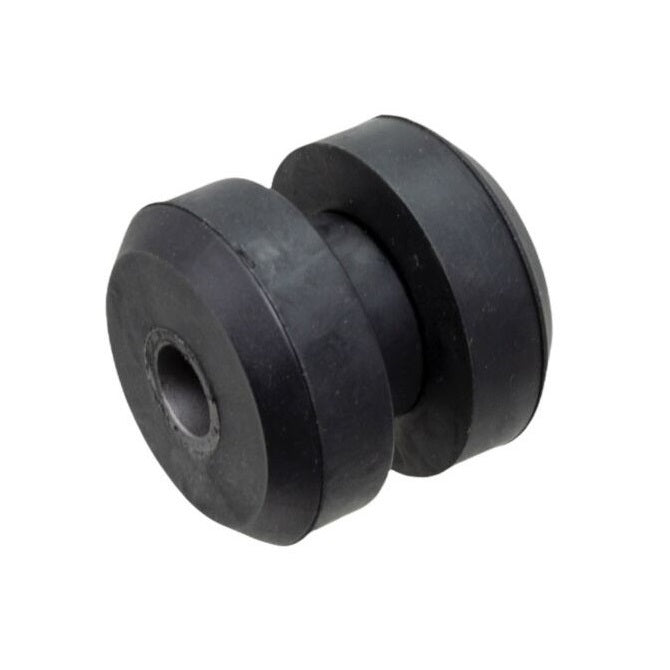

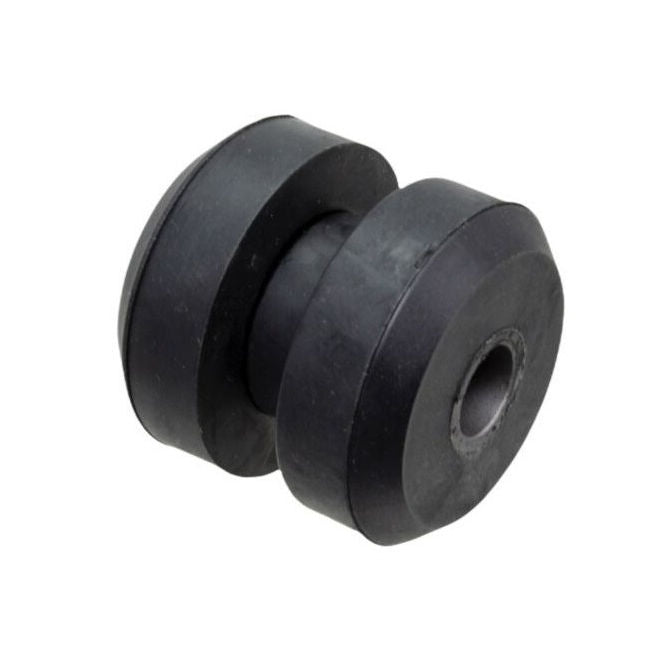

Bonded Mounts - 40.8 Kg - 9.9x33.3 mm Tee Bush Two Piece - Rubber Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more
for $16.65 AUD Each
40.8 Kg - 9.9x33.3 mm Bonded Mounts - Rubber - Sold per Each:
Base Category: Mounts - Bonded
Top Level Category: Mounts - Bonded - Tee Bush Two Piece
Product Details

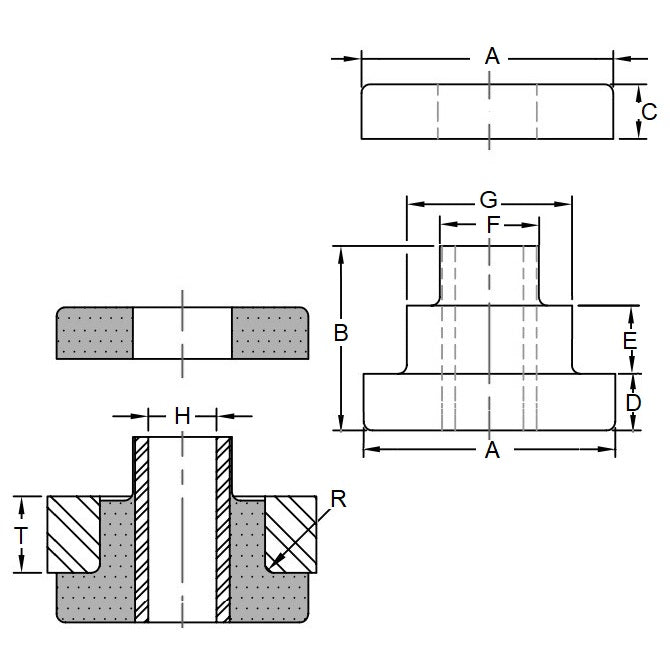

Nominal Load rating: 40.8KgRubber
- Nominal Load rating: 40.8Kg
- Bolt Hole Dia: 9.9mm
(9.9mm is 0.39 in.)
- Flange Dia (A): 33.3mm
(33.3mm is 1.311 in.)
- Main Flange Width (D): 12.3mm
- Support Flange Width (C): 12.3mm
- Main Part Length (B): 31.8mm
- Shoulder Length (E): 9.65mm
- Insert Dia. (F): 14.7mm
- Shoulder Dia. (G): 20.1mm
- R: 1.0mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 6309K32
- Reid Tool® VM-190-2
- VM1902
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
