MB2-0010-041 - Datasheet
MBA
Category Information

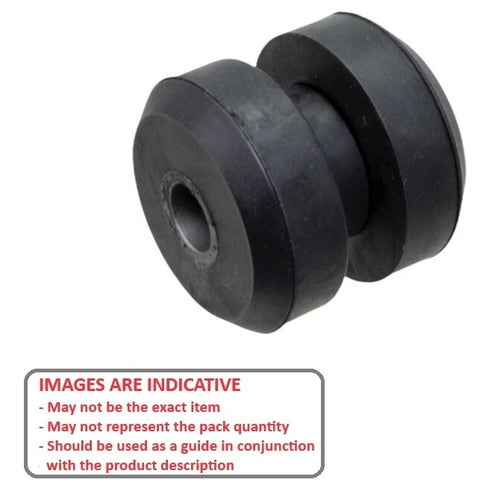

Mounts - Bonded - Tee Bush Two PieceTee Bush Two Piece Bonded Mounts. Steel insert overcoated with rubber joins the two pieces.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Load rating : 40.8 Kg
- Bolt Hole Dia
9.9
mm

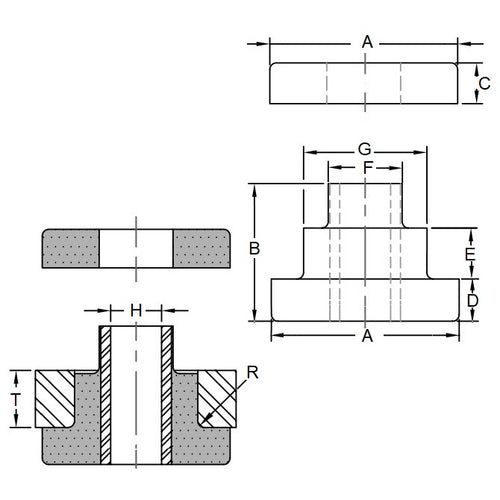

(Equiv. 0.39 in.) - Flange Dia (A)
33.3
mm
(Equiv. 1.311 in.) - Main Flange Width (D) 12.3 mm
- Support Flange Width (C) 12.3 mm
- Main Part Length (B) 31.8 mm
- Shoulder Length (E) 9.65 mm
- Insert Dia. (F) 14.7 mm
- Shoulder Dia. (G) 20.1 mm
- R 1.0 mm
- Material Rubber
Product Compliance and Data
Additional Resources
Cross References
- 6309K32
- VM-190-2
- VM1902
