DS-095-038-HDS (Each)

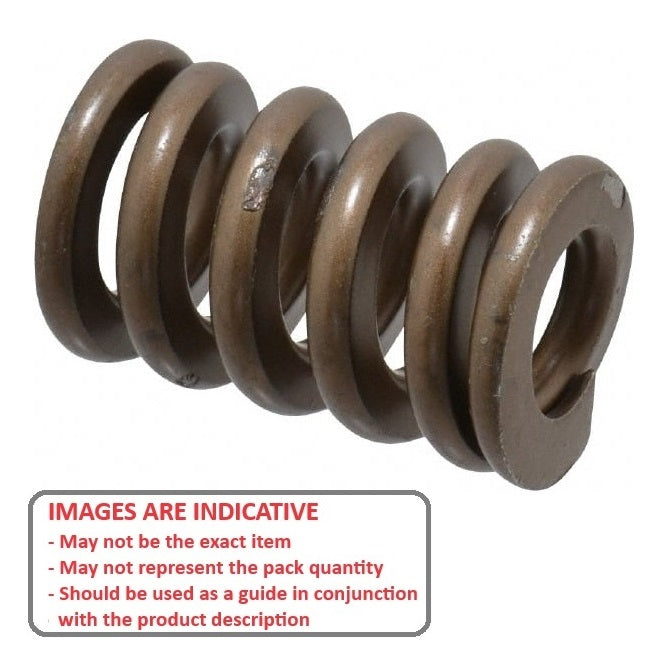

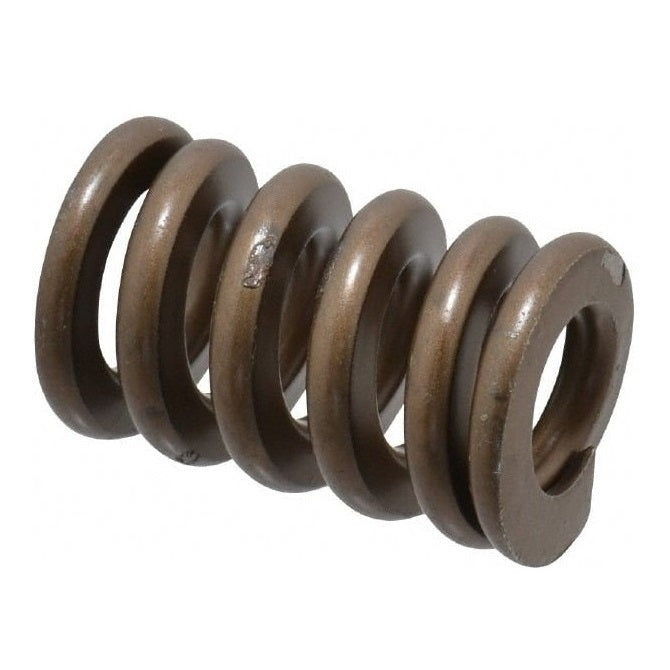

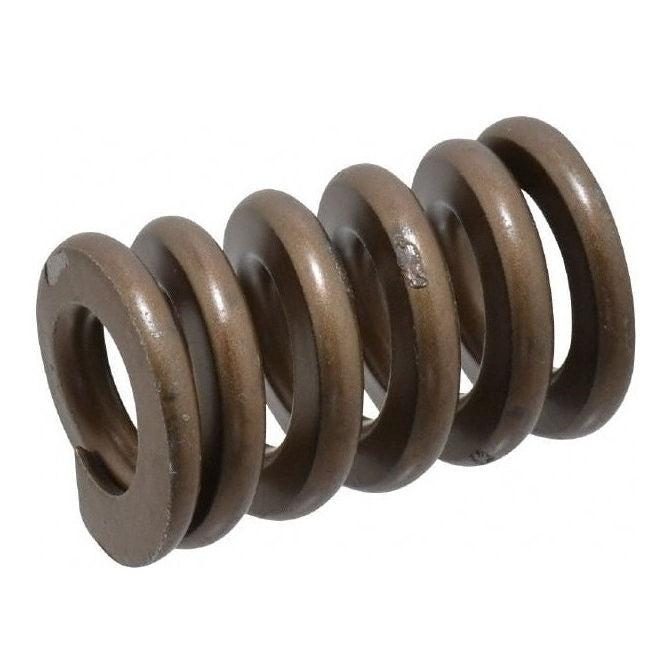

Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spings Catalogue PDF
Order 50 or more
for $14.69 AUD Each
3/8x3/16x1-1/2 inch Spring - 9.53x4.763x38.1 mm Die Springs - Chrome Silicon - Sold per Each:
Base Category: Springs - Die
Top Level Category: Springs - Die - Imperial - Heavy Duty - Chrome Silicon
Product Details

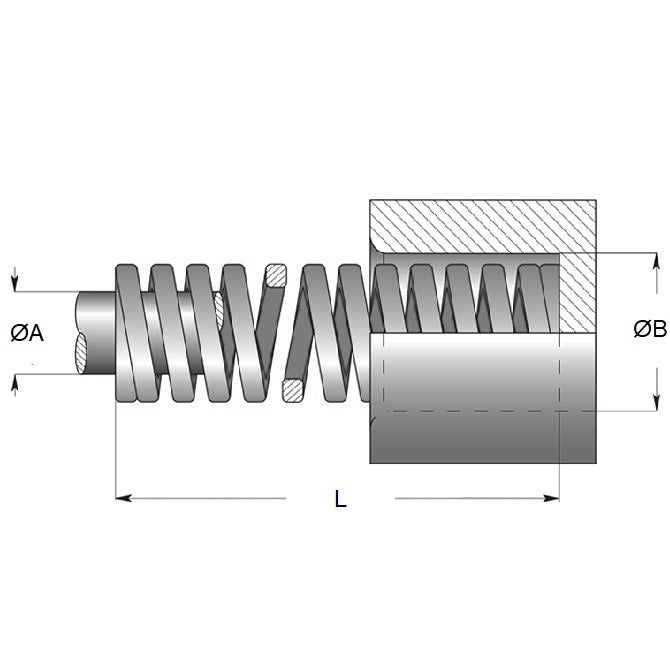

Hole Diameter (B): 9.53mm(9.53mm is 0.375 in.)
Chrome Silicon
- Hole Diameter (B): 9.53mm
(9.53mm is 0.375 in.)
- Rod Diameter (A): 4.763mm
(4.763mm is 0.188 in.)
- Length (L): 38.100mm
(38.100mm is 1.5 in.)
- Optimum Deflection: 15Percent
- Optimum Deflection: 5.7mm
- Load at Optimal: 79.8N
- Maximum Deflection: 25Percent
- Maximum Deflection: 9.5mm
- Load at Maximum: 133.0N
- Spring Rate: 14.0N/mm
- Colour Code: Gold
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 9588K15
- Reid Tool® JS-703A
- JS703A
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DS095038HDS, DS095
