Springs - Die - Imperial - Heavy Duty - Chrome Silicon

Springs -> Die -> Imperial -> Heavy Duty -> Chrome Silicon

There are 31 products in the sub-categories of Springs - Die - Imperial - Heavy Duty - Chrome Silicon. Scroll down or follow the link to Springs - Die - Imperial - Heavy Duty - Chrome Silicon in the products table to see all these items combined into a handy table with filters.

Category Details

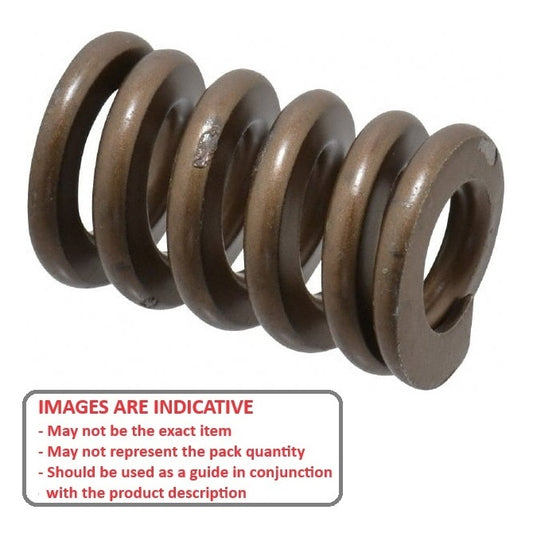

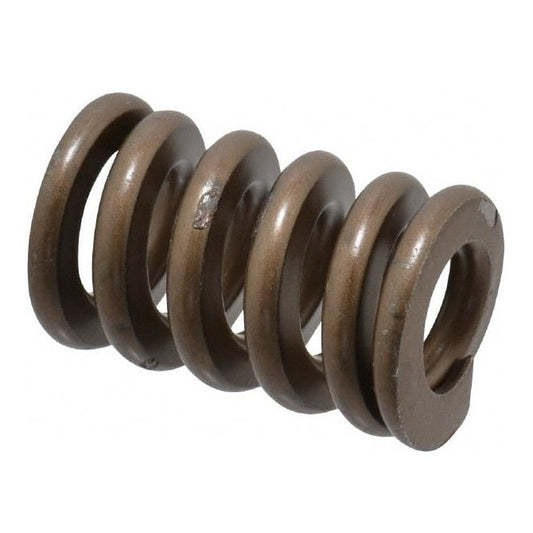

A selection of Chrome Silicon Heavy Duty Imperial Die Springs. Colour coded gold. Chrome silicon die springs.

  • Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
  • Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
  • Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
  • Longer lasting than high carbon steel. Shot peened to reduce working stress and to improve the surface.
  • Maximum deflection is 30 percent of the length
  • Efficient operating range is 15 to 20 percent of the length

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Springs - Die - Imperial - Heavy Duty - Chrome Silicon category on the Small Parts & Bearings online store.
Hole Diameter (B) Rod Diameter (A) Length (L) Optimum Deflection Optimum Deflection Load at Optimal Indicative
Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
9.53
mm
Rod Diameter (A)
4.763
mm
Length (L)
25.400
mm
Optimum Deflection
15
Percent
Optimum Deflection
3.8
mm
Load at Optimal
77.1
N
Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 129.9 N    Spring Rate: 20.3 N/mm    Colour Code: Gold
Part Number: DS-095-025-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$12.68 AUD
$15.22 AUD $12.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Hole Diameter (B) Rod Diameter (A) Length (L) Optimum Deflection Indicative
Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
9.53
mm
Rod Diameter (A)
4.763
mm
Length (L)
25.400
mm
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x25.4 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 3.8 mm    Load at Optimal: 77.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 129.9 N    Spring Rate: 20.3 N/mm    Colour Code: Gold
Part Number: DS-095-025-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$12.68 AUD
$15.22 AUD $12.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
9.53
mm
Rod Diameter (A)
4.763
mm
Length (L)
38.100
mm
Optimum Deflection
15
Percent
Optimum Deflection
5.7
mm
Load at Optimal
79.8
N
Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 133.0 N    Spring Rate: 14.0 N/mm    Colour Code: Gold
Part Number: DS-095-038-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$14.68 AUD
$17.62 AUD $14.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
9.53
mm
Rod Diameter (A)
4.763
mm
Length (L)
38.100
mm
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x38.1 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 5.7 mm    Load at Optimal: 79.8 N    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 133.0 N    Spring Rate: 14.0 N/mm    Colour Code: Gold
Part Number: DS-095-038-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$14.68 AUD
$17.62 AUD $14.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
9.53
mm
Rod Diameter (A)
4.763
mm
Length (L)
63.500
mm
Optimum Deflection
15
Percent
Optimum Deflection
9.5
mm
Load at Optimal
83.6
N
Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 139.9 N    Spring Rate: 8.8 N/mm    Colour Code: Gold
Part Number: DS-095-064-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$20.23 AUD
$24.27 AUD $20.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
9.53
mm
Rod Diameter (A)
4.763
mm
Length (L)
63.500
mm
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 9.5 mm    Load at Optimal: 83.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 139.9 N    Spring Rate: 8.8 N/mm    Colour Code: Gold
Part Number: DS-095-064-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$20.23 AUD
$24.27 AUD $20.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
9.53
mm
Rod Diameter (A)
4.763
mm
Length (L)
76.200
mm
Optimum Deflection
15
Percent
Optimum Deflection
11.4
mm
Load at Optimal
82.1
N
Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 137.5 N    Spring Rate: 7.2 N/mm    Colour Code: Gold
Part Number: DS-095-076-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$23.86 AUD
$28.64 AUD $23.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
9.53
mm
Rod Diameter (A)
4.763
mm
Length (L)
76.200
mm
Optimum Deflection
15
Percent
Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 11.4 mm    Load at Optimal: 82.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 137.5 N    Spring Rate: 7.2 N/mm    Colour Code: Gold
Part Number: DS-095-076-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$23.86 AUD
$28.64 AUD $23.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
12.70
mm
Rod Diameter (A)
7.144
mm
Length (L)
38.100
mm
Optimum Deflection
15
Percent
Optimum Deflection
5.7
mm
Load at Optimal
147.6
N
Die Springs - 12.7x7.144x38.1 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 246.1 N    Spring Rate: 25.9 N/mm    Colour Code: Gold
Part Number: DS-127-038-HDS (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$18.23 AUD
$18.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
12.70
mm
Rod Diameter (A)
7.144
mm
Length (L)
38.100
mm
Optimum Deflection
15
Percent
Die Springs - 12.7x7.144x38.1 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 5.7 mm    Load at Optimal: 147.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 246.1 N    Spring Rate: 25.9 N/mm    Colour Code: Gold
Part Number: DS-127-038-HDS (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026
$18.23 AUD
$18.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Die Springs - 12.7x7.144x88.9 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
12.70
mm
Rod Diameter (A)
7.144
mm
Length (L)
88.900
mm
Optimum Deflection
15
Percent
Optimum Deflection
13.3
mm
Load at Optimal
139.7
N
Die Springs - 12.7x7.144x88.9 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 22.2 mm    Load at Maximum: 233.1 N    Spring Rate: 10.5 N/mm    Colour Code: Gold
Part Number: DS-127-089-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$23.68 AUD
$28.42 AUD $23.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 12.7x7.144x88.9 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
12.70
mm
Rod Diameter (A)
7.144
mm
Length (L)
88.900
mm
Optimum Deflection
15
Percent
Die Springs - 12.7x7.144x88.9 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 13.3 mm    Load at Optimal: 139.7 N    Maximum Deflection: 25 Percent    Maximum Deflection: 22.2 mm    Load at Maximum: 233.1 N    Spring Rate: 10.5 N/mm    Colour Code: Gold
Part Number: DS-127-089-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$23.68 AUD
$28.42 AUD $23.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
25.400
mm
Optimum Deflection
15
Percent
Optimum Deflection
3.8
mm
Load at Optimal
282.3
N
Die Springs - 15.88x8.731x25.4 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 475.5 N    Spring Rate: 74.3 N/mm    Colour Code: Gold
Part Number: DS-159-025-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$16.32 AUD
$19.58 AUD $16.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x25.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
25.400
mm
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x25.4 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 3.8 mm    Load at Optimal: 282.3 N    Maximum Deflection: 25 Percent    Maximum Deflection: 6.4 mm    Load at Maximum: 475.5 N    Spring Rate: 74.3 N/mm    Colour Code: Gold
Part Number: DS-159-025-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$16.32 AUD
$19.58 AUD $16.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
38.100
mm
Optimum Deflection
15
Percent
Optimum Deflection
5.7
mm
Load at Optimal
279.9
N
Die Springs - 15.88x8.731x38.1 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 466.5 N    Spring Rate: 49.1 N/mm    Colour Code: Gold
Part Number: DS-159-038-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$18.95 AUD
$22.75 AUD $18.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
38.100
mm
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x38.1 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 5.7 mm    Load at Optimal: 279.9 N    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 466.5 N    Spring Rate: 49.1 N/mm    Colour Code: Gold
Part Number: DS-159-038-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$18.95 AUD
$22.75 AUD $18.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x44.45 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
44.450
mm
Optimum Deflection
15
Percent
Optimum Deflection
6.7
mm
Load at Optimal
282.1
N
Die Springs - 15.88x8.731x44.45 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 467.3 N    Spring Rate: 42.1 N/mm    Colour Code: Gold
Part Number: DS-159-044-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$21.77 AUD
$26.13 AUD $21.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x44.45 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
44.450
mm
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x44.45 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 6.7 mm    Load at Optimal: 282.1 N    Maximum Deflection: 25 Percent    Maximum Deflection: 11.1 mm    Load at Maximum: 467.3 N    Spring Rate: 42.1 N/mm    Colour Code: Gold
Part Number: DS-159-044-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$21.77 AUD
$26.13 AUD $21.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
50.800
mm
Optimum Deflection
15
Percent
Optimum Deflection
7.6
mm
Load at Optimal
277.4
N
Die Springs - 15.88x8.731x50.8 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 463.6 N    Spring Rate: 36.5 N/mm    Colour Code: Gold
Part Number: DS-159-051-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$21.59 AUD
$25.91 AUD $21.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
50.800
mm
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x50.8 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 7.6 mm    Load at Optimal: 277.4 N    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 463.6 N    Spring Rate: 36.5 N/mm    Colour Code: Gold
Part Number: DS-159-051-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$21.59 AUD
$25.91 AUD $21.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x76.2 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
76.200
mm
Optimum Deflection
15
Percent
Optimum Deflection
11.4
mm
Load at Optimal
279.3
N
Die Springs - 15.88x8.731x76.2 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 468.0 N    Spring Rate: 24.5 N/mm    Colour Code: Gold
Part Number: DS-159-076-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$24.50 AUD
$29.40 AUD $24.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 15.88x8.731x76.2 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
15.88
mm
Rod Diameter (A)
8.731
mm
Length (L)
76.200
mm
Optimum Deflection
15
Percent
Die Springs - 15.88x8.731x76.2 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 11.4 mm    Load at Optimal: 279.3 N    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 468.0 N    Spring Rate: 24.5 N/mm    Colour Code: Gold
Part Number: DS-159-076-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$24.50 AUD
$29.40 AUD $24.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
38.100
mm
Optimum Deflection
15
Percent
Optimum Deflection
5.7
mm
Load at Optimal
689.7
N
Die Springs - 19.05x9.525x38.1 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 1149.5 N    Spring Rate: 121.0 N/mm    Colour Code: Gold
Part Number: DS-191-038-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$29.86 AUD
$35.84 AUD $29.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x38.1 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
38.100
mm
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x38.1 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 5.7 mm    Load at Optimal: 689.7 N    Maximum Deflection: 25 Percent    Maximum Deflection: 9.5 mm    Load at Maximum: 1149.5 N    Spring Rate: 121.0 N/mm    Colour Code: Gold
Part Number: DS-191-038-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$29.86 AUD
$35.84 AUD $29.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
50.800
mm
Optimum Deflection
15
Percent
Optimum Deflection
7.6
mm
Load at Optimal
686.3
N
Die Springs - 19.05x9.525x50.8 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 1146.8 N    Spring Rate: 90.3 N/mm    Colour Code: Gold
Part Number: DS-191-051-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$32.41 AUD
$38.89 AUD $32.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
50.800
mm
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x50.8 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 7.6 mm    Load at Optimal: 686.3 N    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 1146.8 N    Spring Rate: 90.3 N/mm    Colour Code: Gold
Part Number: DS-191-051-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$32.41 AUD
$38.89 AUD $32.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
63.500
mm
Optimum Deflection
15
Percent
Optimum Deflection
9.5
mm
Load at Optimal
666.0
N
Die Springs - 19.05x9.525x63.5 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 1114.6 N    Spring Rate: 70.1 N/mm    Colour Code: Gold
Part Number: DS-191-064-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$35.68 AUD
$42.82 AUD $35.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
63.500
mm
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x63.5 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 9.5 mm    Load at Optimal: 666.0 N    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 1114.6 N    Spring Rate: 70.1 N/mm    Colour Code: Gold
Part Number: DS-191-064-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$35.68 AUD
$42.82 AUD $35.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x76.2 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
76.200
mm
Optimum Deflection
15
Percent
Optimum Deflection
11.4
mm
Load at Optimal
658.9
N
Die Springs - 19.05x9.525x76.2 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 1104.0 N    Spring Rate: 57.8 N/mm    Colour Code: Gold
Part Number: DS-191-076-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$36.95 AUD
$44.35 AUD $36.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x76.2 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
76.200
mm
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x76.2 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 11.4 mm    Load at Optimal: 658.9 N    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 1104.0 N    Spring Rate: 57.8 N/mm    Colour Code: Gold
Part Number: DS-191-076-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$36.95 AUD
$44.35 AUD $36.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x88.9 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
88.900
mm
Optimum Deflection
15
Percent
Optimum Deflection
13.3
mm
Load at Optimal
675.6
N
Die Springs - 19.05x9.525x88.9 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 22.2 mm    Load at Maximum: 1127.8 N    Spring Rate: 50.8 N/mm    Colour Code: Gold
Part Number: DS-191-089-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$43.14 AUD
$51.76 AUD $43.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x88.9 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
88.900
mm
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x88.9 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 13.3 mm    Load at Optimal: 675.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 22.2 mm    Load at Maximum: 1127.8 N    Spring Rate: 50.8 N/mm    Colour Code: Gold
Part Number: DS-191-089-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$43.14 AUD
$51.76 AUD $43.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x101.6 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
101.600
mm
Optimum Deflection
15
Percent
Optimum Deflection
15.2
mm
Load at Optimal
665.8
N
Die Springs - 19.05x9.525x101.6 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 25.4 mm    Load at Maximum: 1112.5 N    Spring Rate: 43.8 N/mm    Colour Code: Gold
Part Number: DS-191-102-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$46.32 AUD
$55.58 AUD $46.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x101.6 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
101.600
mm
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x101.6 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 15.2 mm    Load at Optimal: 665.8 N    Maximum Deflection: 25 Percent    Maximum Deflection: 25.4 mm    Load at Maximum: 1112.5 N    Spring Rate: 43.8 N/mm    Colour Code: Gold
Part Number: DS-191-102-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$46.32 AUD
$55.58 AUD $46.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x139.7 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
139.700
mm
Optimum Deflection
15
Percent
Optimum Deflection
21.0
mm
Load at Optimal
810.6
N
Die Springs - 19.05x9.525x139.7 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 34.9 mm    Load at Maximum: 1347.1 N    Spring Rate: 38.6 N/mm    Colour Code: Gold
Part Number: DS-191-140-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$56.95 AUD
$68.35 AUD $56.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 19.05x9.525x139.7 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
19.05
mm
Rod Diameter (A)
9.525
mm
Length (L)
139.700
mm
Optimum Deflection
15
Percent
Die Springs - 19.05x9.525x139.7 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 21.0 mm    Load at Optimal: 810.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 34.9 mm    Load at Maximum: 1347.1 N    Spring Rate: 38.6 N/mm    Colour Code: Gold
Part Number: DS-191-140-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$56.95 AUD
$68.35 AUD $56.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
50.800
mm
Optimum Deflection
15
Percent
Optimum Deflection
7.6
mm
Load at Optimal
1162.0
N
Die Springs - 25.4x12.7x50.8 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 1941.8 N    Spring Rate: 152.9 N/mm    Colour Code: Gold
Part Number: DS-254-051-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$40.50 AUD
$48.60 AUD $40.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x50.8 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
50.800
mm
Optimum Deflection
15
Percent
Die Springs - 25.4x12.7x50.8 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 7.6 mm    Load at Optimal: 1162.0 N    Maximum Deflection: 25 Percent    Maximum Deflection: 12.7 mm    Load at Maximum: 1941.8 N    Spring Rate: 152.9 N/mm    Colour Code: Gold
Part Number: DS-254-051-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$40.50 AUD
$48.60 AUD $40.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
63.500
mm
Optimum Deflection
15
Percent
Optimum Deflection
9.5
mm
Load at Optimal
1107.7
N
Die Springs - 25.4x12.7x63.5 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 1853.9 N    Spring Rate: 116.6 N/mm    Colour Code: Gold
Part Number: DS-254-064-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$44.14 AUD
$52.96 AUD $44.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x63.5 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
63.500
mm
Optimum Deflection
15
Percent
Die Springs - 25.4x12.7x63.5 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 9.5 mm    Load at Optimal: 1107.7 N    Maximum Deflection: 25 Percent    Maximum Deflection: 15.9 mm    Load at Maximum: 1853.9 N    Spring Rate: 116.6 N/mm    Colour Code: Gold
Part Number: DS-254-064-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$44.14 AUD
$52.96 AUD $44.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x76.2 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
76.200
mm
Optimum Deflection
15
Percent
Optimum Deflection
11.4
mm
Load at Optimal
1087.6
N
Die Springs - 25.4x12.7x76.2 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 1822.1 N    Spring Rate: 95.4 N/mm    Colour Code: Gold
Part Number: DS-254-076-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$46.68 AUD
$56.02 AUD $46.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x76.2 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
76.200
mm
Optimum Deflection
15
Percent
Die Springs - 25.4x12.7x76.2 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 11.4 mm    Load at Optimal: 1087.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 19.1 mm    Load at Maximum: 1822.1 N    Spring Rate: 95.4 N/mm    Colour Code: Gold
Part Number: DS-254-076-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$46.68 AUD
$56.02 AUD $46.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x88.9 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
88.900
mm
Optimum Deflection
15
Percent
Optimum Deflection
13.3
mm
Load at Optimal
1062.7
N
Die Springs - 25.4x12.7x88.9 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 22.2 mm    Load at Maximum: 1773.8 N    Spring Rate: 79.9 N/mm    Colour Code: Gold
Part Number: DS-254-089-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$55.14 AUD
$66.16 AUD $55.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x88.9 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
88.900
mm
Optimum Deflection
15
Percent
Die Springs - 25.4x12.7x88.9 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 13.3 mm    Load at Optimal: 1062.7 N    Maximum Deflection: 25 Percent    Maximum Deflection: 22.2 mm    Load at Maximum: 1773.8 N    Spring Rate: 79.9 N/mm    Colour Code: Gold
Part Number: DS-254-089-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$55.14 AUD
$66.16 AUD $55.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x101.6 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
101.600
mm
Optimum Deflection
15
Percent
Optimum Deflection
15.2
mm
Load at Optimal
1065.5
N
Die Springs - 25.4x12.7x101.6 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 25.4 mm    Load at Maximum: 1780.5 N    Spring Rate: 70.1 N/mm    Colour Code: Gold
Part Number: DS-254-102-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$59.05 AUD
$70.85 AUD $59.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x101.6 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
101.600
mm
Optimum Deflection
15
Percent
Die Springs - 25.4x12.7x101.6 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 15.2 mm    Load at Optimal: 1065.5 N    Maximum Deflection: 25 Percent    Maximum Deflection: 25.4 mm    Load at Maximum: 1780.5 N    Spring Rate: 70.1 N/mm    Colour Code: Gold
Part Number: DS-254-102-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$59.05 AUD
$70.85 AUD $59.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x152.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
152.400
mm
Optimum Deflection
15
Percent
Optimum Deflection
22.9
mm
Load at Optimal
1252.6
N
Die Springs - 25.4x12.7x152.4 mm - Chrome Silicon
Material: Chrome Silicon    Maximum Deflection: 25 Percent    Maximum Deflection: 38.1 mm    Load at Maximum: 2084.1 N    Spring Rate: 54.7 N/mm    Colour Code: Gold
Part Number: DS-254-152-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$80.14 AUD
$96.16 AUD $80.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Die Springs - 25.4x12.7x152.4 mm Imperial - Chrome Silicon Spring
Hole Diameter (B)
25.40
mm
Rod Diameter (A)
12.700
mm
Length (L)
152.400
mm
Optimum Deflection
15
Percent
Die Springs - 25.4x12.7x152.4 mm - Chrome Silicon
Material: Chrome Silicon    Optimum Deflection: 22.9 mm    Load at Optimal: 1252.6 N    Maximum Deflection: 25 Percent    Maximum Deflection: 38.1 mm    Load at Maximum: 2084.1 N    Spring Rate: 54.7 N/mm    Colour Code: Gold
Part Number: DS-254-152-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026
$80.14 AUD
$96.16 AUD $80.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
