SFR6A-ZZ-MC3

Name: SFR6A-ZZ-MC3 - Single Row Ball Bearings - 9.525x22.225x7.142 mm Flanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: SFR6AZZMC3
Price: 10.59 AUD
Availability: BackOrder

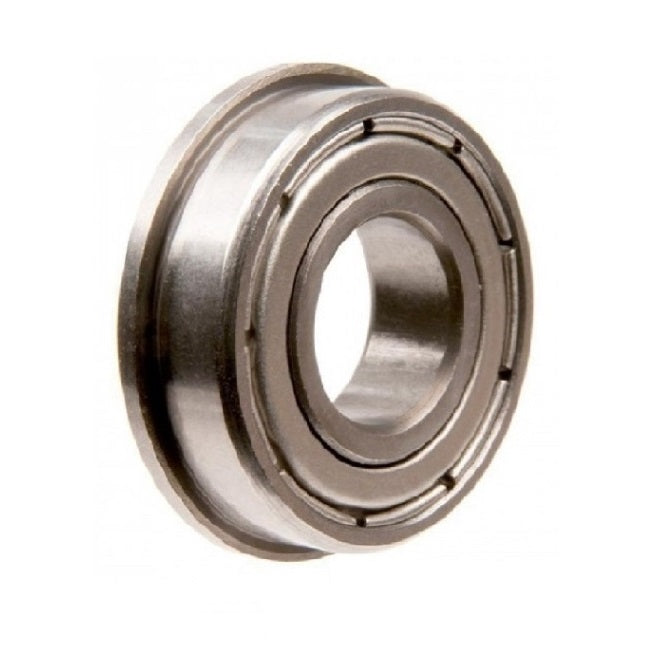

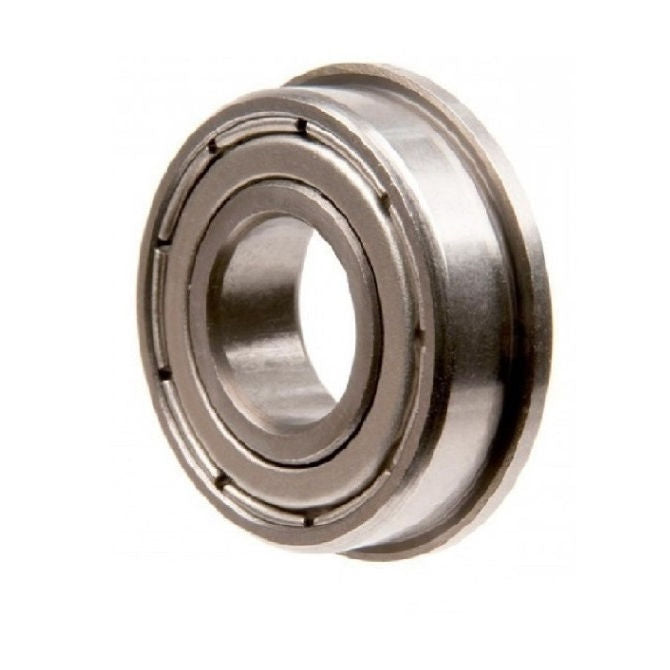

Single Row Ball Bearings - 9.525x22.225x7.142 mm Flanged - Stainless Steel AISI 440C Bearing

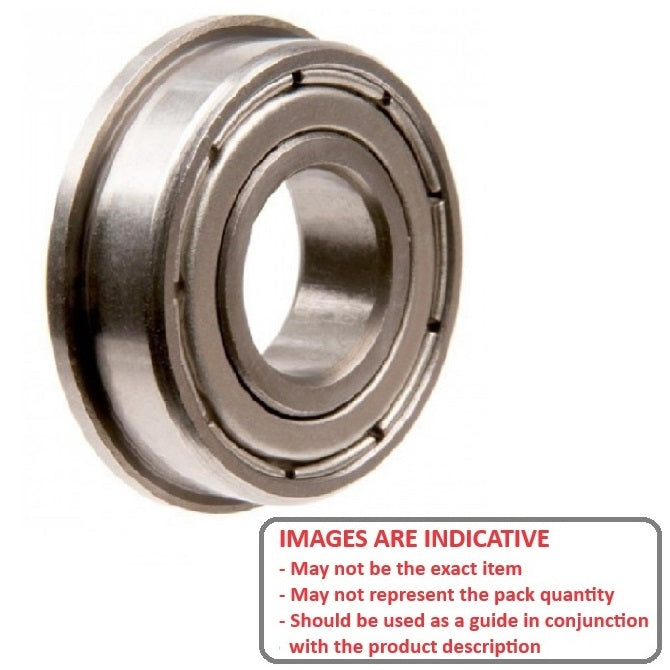

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$10.59 AUD

Each
Backorder
Order 50 or more for $9.53 AUD Each

More stock due Sep 18, 2025: Qty 118

Product Details

ID (d): 9.525mm
_{+ 0.000 / - 0.0075}
_{(9.525mm is 0.375 in.)}

Stainless Steel AISI 440C

OD (D): 22.225mm
_{+ 0.000 / - 0.010}
_{(22.225mm is 0.875 in.)}
Width (B): 7.142mm
_{+ 0.000 / - 0.125}
_{(7.142mm is 0.281 in.)}
Flange Diameter (DF): 24.613mm
Flange Width (BF): 1.575mm
Precision Grade: Abec 1
Closure Type: ZZ
Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

FAFNIR AFS3KDD
FAFNIR ASF3KDD
NTN FLWR6-ZZ
Stainless FR6AZZMC3
Stainless FR6A-ZZ-MC3
GRW SFBR3-8-2Z
Similar Part SFR6
Shielded Width A SFR6/7.14
Shielded SFR6A / 7
Nachi SFR6-ZZ
MPB SR6FC-ZZ
NHBB SSFR6PP
NHBB SSFR6PPD
ADR WFY3-8-ZZ
WFY38ZZ
SR6FCZZ
SSR1F-1438-ZZ
SS-R1F-1438-ZZ
SSR1F1438ZZ
SFR6AZZMC3
SFR6SS
SFR6A-ZZMC3
SFR6ZZ
SFBR382Z
DD-R1F-1438-ZZ
DMB-99
DMB99
DDR1F-1438-ZZ
DDRIF1438ZZ
DDR1F1438ZZ
DDRIF-1438ZZ
FLWR6ZZ
RKZ12028X
FR6ABASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
