SFR6A-2RS-MC3 (Each)

3/8x7/8x9/32 inch Bearing - 9.525x22.225x7.142 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per Each:

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

Product Details

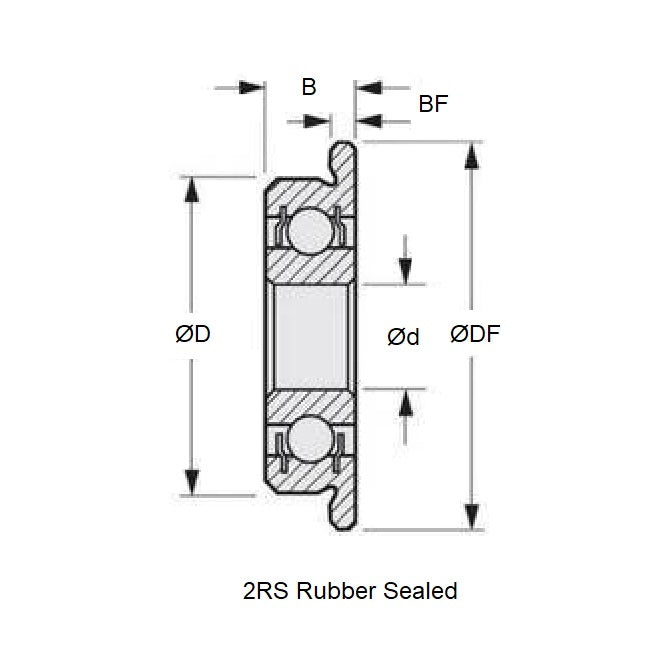

ID (d): 9.525mm
_{+ 0.000 / - 0.0075
(9.525mm is 0.375 in.)}

Stainless Steel AISI 440C

• ID (d): 9.525mm
  _{+ 0.000 / - 0.0075
  (9.525mm is 0.375 in.)}

• O.D. (D): 22.225mm
  _{+ 0.000 / - 0.010
  (22.225mm is 0.875 in.)}

• Width (B): 7.142mm
  _{+ 0.000 / - 0.125
  (7.142mm is 0.281 in.)}

• Flange Diameter (DF): 24.613mm
• Flange Width (BF): 1.575mm
• Precision Grade: Abec 1
• Closure Type: 2RS
• Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• FAFNIR® AFS3KPP
• Stainless FR6A2RSMC3
• Stainless FR6A-2RS-MC3
• Stainless FR6ARSMC3
• Stainless FR6A-RS-MC3
• Sealed Width A SFR6 / 7
• ISO SFR62RS
• ISO SFR6-2RS
• Nachi® SFR6-2RS
• Sealed SFR6A / 7
• ISO SFR6RS
• ISO SFR6-RS
• Nachi® SFR6-RS
• Sealed Width A SSFR6 / 7
• ISO SSFR62RS
• ISO SSFR6-2RS
• Nachi® SSFR6-2RS
• Sealed SSFR6A / 7
• ISO SSFR6RS
• ISO SSFR6-RS
• Nachi® SSFR6-RS
• SSFR6ARSMC3
• SSFR6A-2RSMC3
• SSFR6A-RSMC3
• SSFR6A2RSMC3
• FR6ABASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SFR6A2RSMC3, FR6A
