SHLD095-006-SKT-J-C (Each)

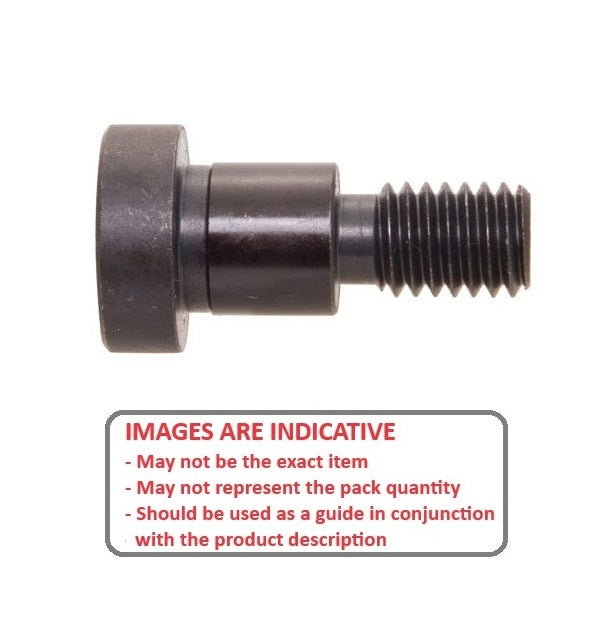

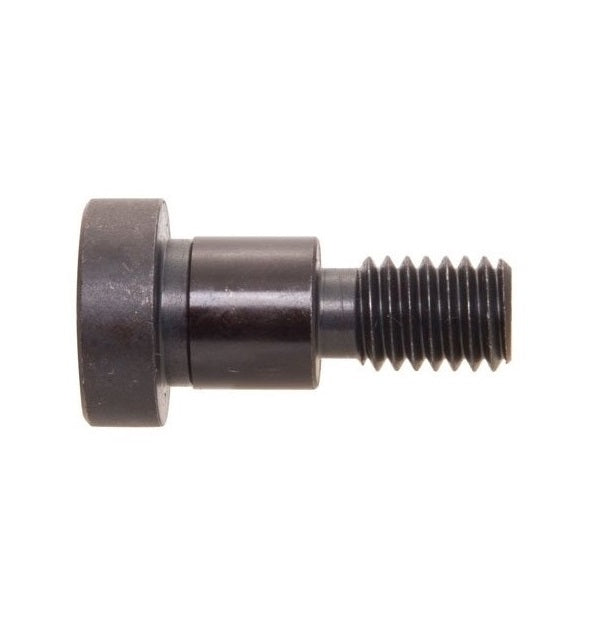

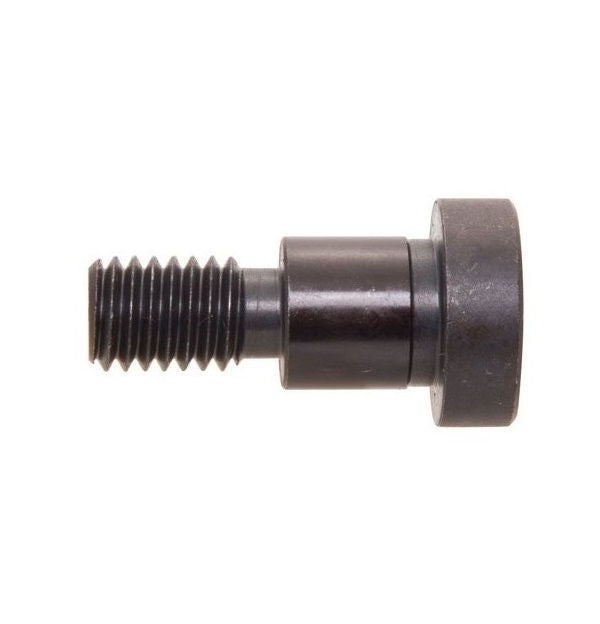

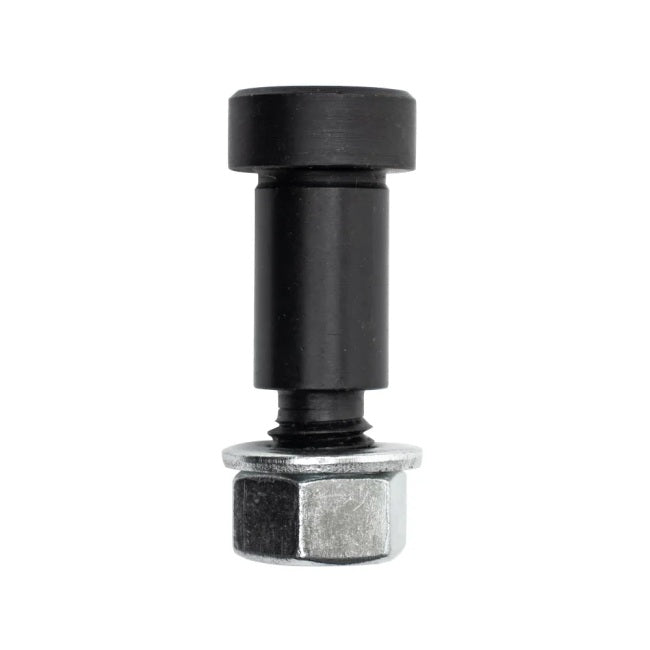

Shoulder Screws - 9.525x6.35 mm - 1/4-20 UNC Jig and Fixture - Steel 4140L Heat Treated Screw
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesalePDF Screws Catalogue
Washers
Nuts
Order 50 or more
for $29.01 AUD Each
3/8x1/4 inch Screw - 9.525x6.35 mm - 1/4-20 UNC Shoulder Screws - Steel 4140L Heat Treated - Sold per Each:
Base Category: Screws - Shoulder
Top Level Category: Screws - Shoulder - Jig and Fixture
Product Details

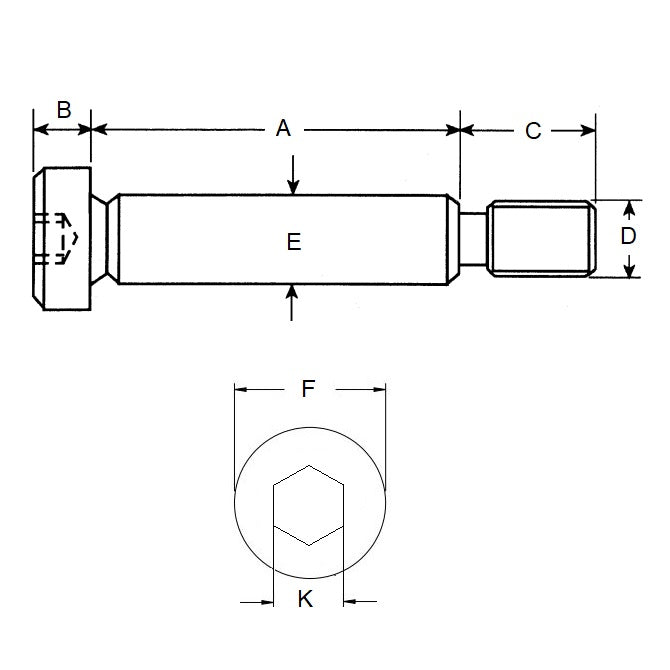

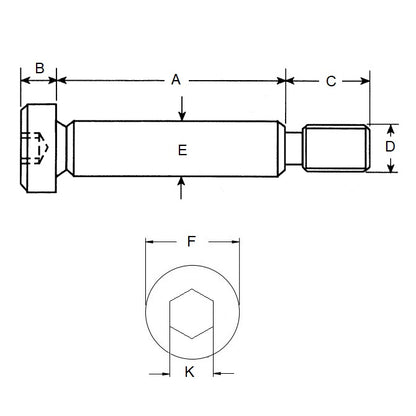

Shoulder Diameter (E): 9.525mm- 0.051 / - 0.102
(9.525mm is 0.375 in.)
Steel 4140L Heat Treated
- Shoulder Diameter (E): 9.525mm
- 0.051 / - 0.102
(9.525mm is 0.375 in.)
- Shoulder Length (A): 6.350mm
(6.350mm is 0.25 in.)
- Thread (D): 1/4-20 UNC
- Max. Thread Length (C): 9.53mm
- Head Height (B): 4.76mm
- Head Diameter (F): 15.88mm
- Hex Key Size: 4.75mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® SS-1
- SS1
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SHLD095006SKTJC, SHLD095006SKT
