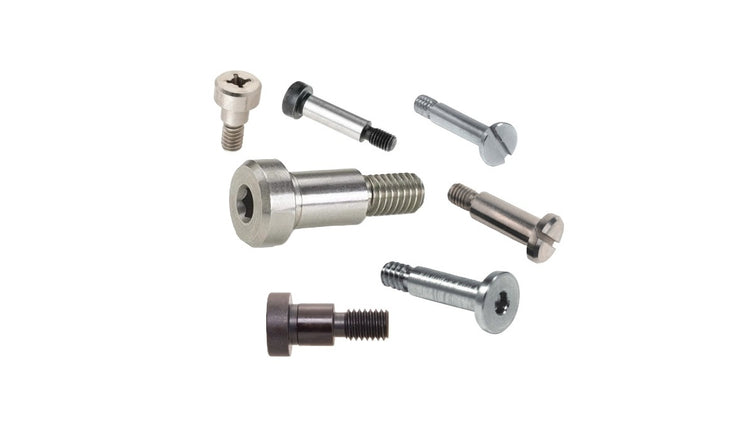

Collection: Screws - Shoulder

Screws -> Shoulder

There are 562 products in the sub-categories of Screws - Shoulder. Scroll down or follow the link to Screws - Shoulder in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

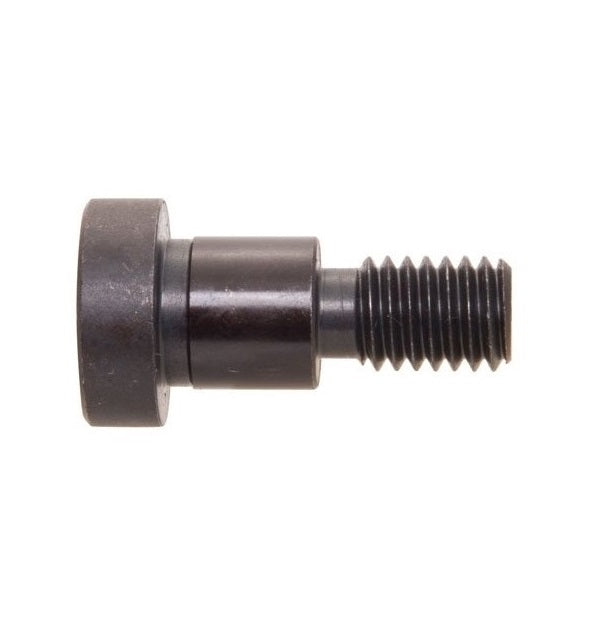

Shoulder Screws - 6.35x6.35 mm - 10-24 UNC Jig and Fixture - Steel 4140L Heat Treated

Screws - Shoulder - Jig and Fixture

A selection of Jig and Fixture Shoulder Screws. Used in construction of...

Screws - Shoulder - Jig and Fixture

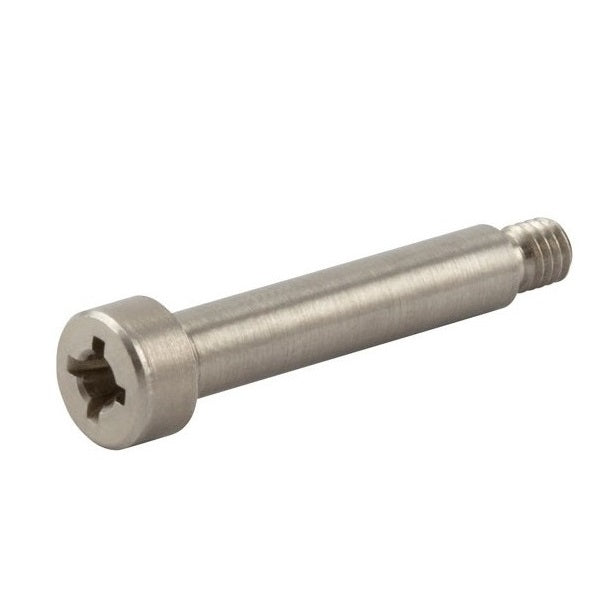

Shoulder Screws - 4x6 mm - M3x0.5 Phillips - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

Screws - Shoulder - Phillips

This category includes various types of shoulder screws.Also known as Pivot Pin,...

Screws - Shoulder - Phillips

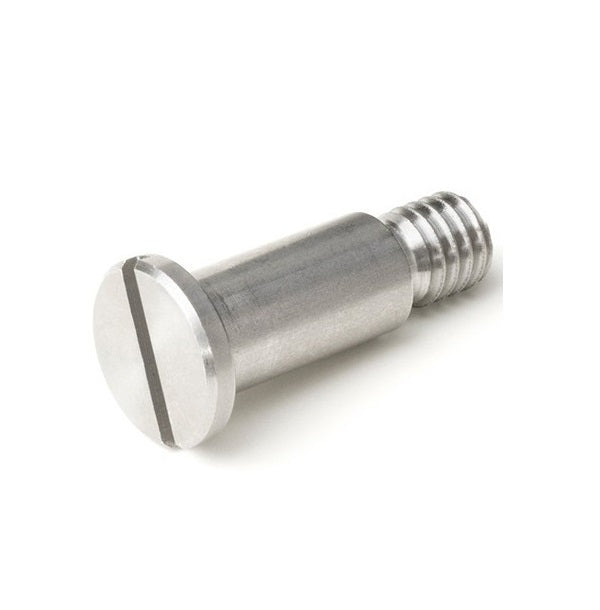

Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

Screws - Shoulder - Slotted

This category includes various types of shoulder screws.Also known as Pivot Pin,...

Screws - Shoulder - Slotted

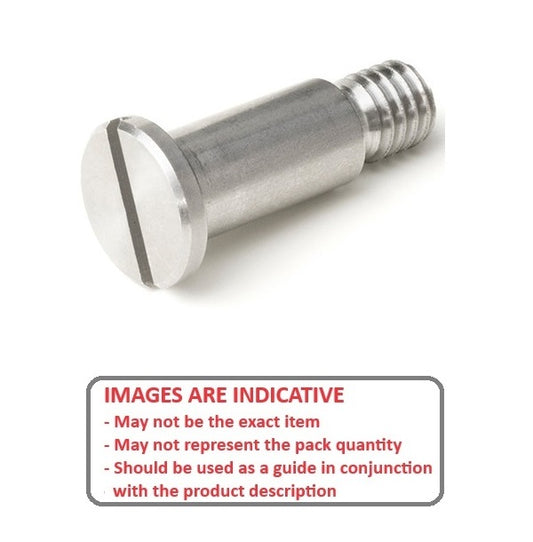

Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

Screws - Shoulder - Slotted Shallow Head

This category includes various types of shoulder screws.Also known as Pivot Pin,...

Screws - Shoulder - Slotted Shallow Head

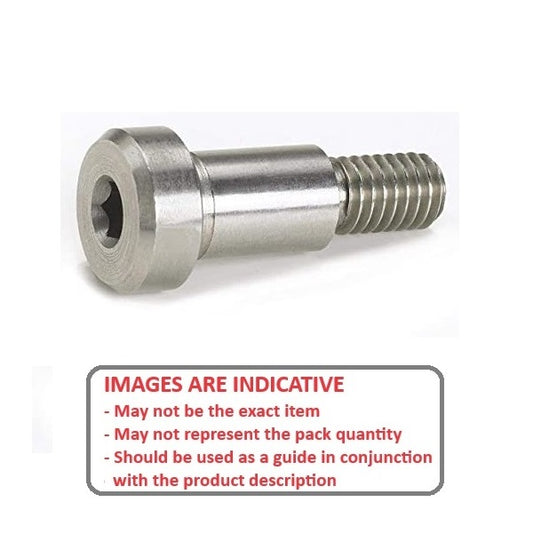

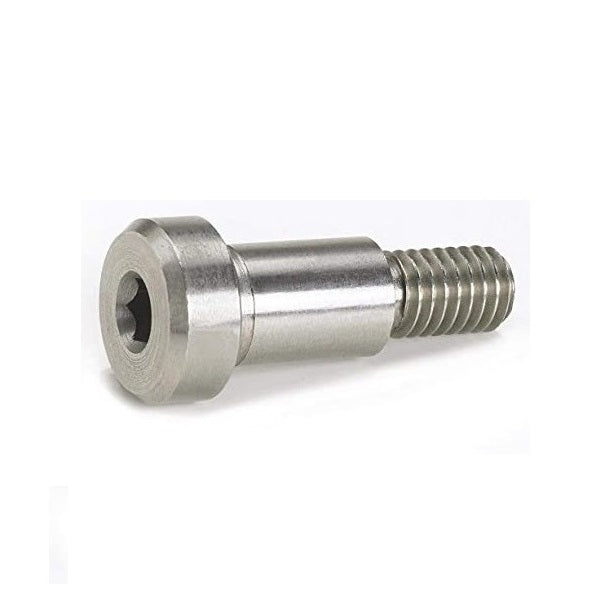

Shoulder Screws - 3.175x3.18 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

Screws - Shoulder - Socket Head

This category includes various types of shoulder screws.Also known as Pivot Pin,...

Screws - Shoulder - Socket Head

Category Details

This category includes various types of shoulder screws.

Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Screws - Shoulder category on the Small Parts & Bearings online store.

Shoulder Diameter (E)	Shoulder Length (A)	Thread (D)	Max. Thread Length (C)	Head Height (B)	Head Diameter (F)
Shoulder Diameter (E) 2.381 mm _{- 0.006 / - 0.024} (Equiv. 0.094 in.)	Shoulder Length (A) 3.300 mm (Equiv. 0.13 in.)	Thread (D) 2-56 UNC	Max. Thread Length (C) 5.54 mm	Head Height (B) 1.59 mm	Head Diameter (F) 4.76 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD024-003-SLL-A-S3 (50 Pcs) Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E)	Shoulder Length (A)	Thread (D)	Max. Thread Length (C)	Indicative Image
Shoulder Diameter (E) 2.381 mm _{- 0.006 / - 0.024} (Equiv. 0.094 in.)	Shoulder Length (A) 3.300 mm (Equiv. 0.13 in.)	Thread (D) 2-56 UNC	Max. Thread Length (C) 5.54 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 1.59 mm Head Diameter (F): 4.76 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD024-003-SLL-A-S3 (50 Pcs) Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD024-003-SLL-A-S3 (50 Pcs) --- Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD024-003-SLL-A-S3 (50 Pcs) --- Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 2.381 mm _{- 0.006 / - 0.024} (Equiv. 0.094 in.)	Shoulder Length (A) 3.300 mm (Equiv. 0.13 in.)	Thread (D) 2-56 UNC	Max. Thread Length (C) 5.54 mm	Head Height (B) 1.59 mm	Head Diameter (F) 5.56 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD024-003-SLL-B-S3 (50 Pcs) Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 2.381 mm _{- 0.006 / - 0.024} (Equiv. 0.094 in.)	Shoulder Length (A) 3.300 mm (Equiv. 0.13 in.)	Thread (D) 2-56 UNC	Max. Thread Length (C) 5.54 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 1.59 mm Head Diameter (F): 5.56 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD024-003-SLL-B-S3 (50 Pcs) Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD024-003-SLL-B-S3 (50 Pcs) --- Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD024-003-SLL-B-S3 (50 Pcs) --- Shoulder Screws - 2.381x3.3 mm - 2-56 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.000 mm _{+ 0.000 / - 0.024} (Equiv. 0.118 in.)	Shoulder Length (A) 3.800 mm (Equiv. 0.15 in.)	Thread (D) M2x0.4	Max. Thread Length (C) 5.65 mm	Head Height (B) 1.50 mm	Head Diameter (F) 5.00 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD030-004-SLL-S3 (50 Pcs) Shoulder Screws - 3x3.8 mm - M2x0.4 Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.000 mm _{+ 0.000 / - 0.024} (Equiv. 0.118 in.)	Shoulder Length (A) 3.800 mm (Equiv. 0.15 in.)	Thread (D) M2x0.4	Max. Thread Length (C) 5.65 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 1.50 mm Head Diameter (F): 5.00 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD030-004-SLL-S3 (50 Pcs) Shoulder Screws - 3x3.8 mm - M2x0.4 Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD030-004-SLL-S3 (50 Pcs) --- Shoulder Screws - 3x3.8 mm - M2x0.4 Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD030-004-SLL-S3 (50 Pcs) --- Shoulder Screws - 3x3.8 mm - M2x0.4 Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.006 / - 0.024} (Equiv. 0.125 in.)	Shoulder Length (A) 2.500 mm (Equiv. 0.098 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 6.46 mm	Head Height (B) 1.59 mm	Head Diameter (F) 4.76 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD032-003-SLL-S3 (50 Pcs) Shoulder Screws - 3.175x2.5 mm - 4-40 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.006 / - 0.024} (Equiv. 0.125 in.)	Shoulder Length (A) 2.500 mm (Equiv. 0.098 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 6.46 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 1.59 mm Head Diameter (F): 4.76 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD032-003-SLL-S3 (50 Pcs) Shoulder Screws - 3.175x2.5 mm - 4-40 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-003-SLL-S3 (50 Pcs) --- Shoulder Screws - 3.175x2.5 mm - 4-40 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-003-SLL-S3 (50 Pcs) --- Shoulder Screws - 3.175x2.5 mm - 4-40 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 3.180 mm (Equiv. 0.125 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-003-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x3.18 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $194.59 AUD Regular price Sale price $194.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 3.180 mm (Equiv. 0.125 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-003-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x3.18 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $194.59 AUD Regular price Sale price $194.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-003-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.18 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-003-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.18 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $194.59 AUD Regular price Sale price $194.59 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 3.200 mm (Equiv. 0.126 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-003-SL-P-S3 (50 Pcs) Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $216.77 AUD Regular price Sale price $216.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 3.200 mm (Equiv. 0.126 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-003-SL-P-S3 (50 Pcs) Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $216.77 AUD Regular price Sale price $216.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-003-SL-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-003-SL-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $216.77 AUD Regular price Sale price $216.77 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 3.200 mm (Equiv. 0.126 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-003-SL-S3 Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw 34 Available Now \| Further orders can be expected around Mon, Sep 15, 2025 Regular price $3.59 AUD Regular price ~~$6.41 AUD~~ Sale price $3.59 AUD Unit price per Each Quantity Required 34 Available Now. Backorder if more than 34.
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 3.200 mm (Equiv. 0.126 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-003-SL-S3 Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw 34 Available Now \| Further orders can be expected around Mon, Sep 15, 2025 Regular price $3.59 AUD Regular price ~~$6.41 AUD~~ Sale price $3.59 AUD Unit price per Each Quantity Required 34 Available Now. Backorder if more than 34.
SHLD032-003-SL-S3 --- Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Sale SHLD032-003-SL-S3 --- Shoulder Screws - 3.175x3.2 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $3.59 AUD Regular price ~~$6.41 AUD~~ Sale price $3.59 AUD Unit price per 34 Available Now Sale
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 3.210 mm (Equiv. 0.126 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-003-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x3.21 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $263.05 AUD Regular price Sale price $263.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 3.210 mm (Equiv. 0.126 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-003-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x3.21 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $263.05 AUD Regular price Sale price $263.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-003-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.21 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-003-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.21 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $263.05 AUD Regular price Sale price $263.05 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.006 / - 0.024} (Equiv. 0.125 in.)	Shoulder Length (A) 3.700 mm (Equiv. 0.146 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 7.25 mm	Head Height (B) 1.59 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD032-004-SLL-S3 (50 Pcs) Shoulder Screws - 3.175x3.7 mm - 4-40 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.006 / - 0.024} (Equiv. 0.125 in.)	Shoulder Length (A) 3.700 mm (Equiv. 0.146 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 7.25 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 1.59 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted Shallow Head
Part Number: SHLD032-004-SLL-S3 (50 Pcs) Shoulder Screws - 3.175x3.7 mm - 4-40 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-004-SLL-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.7 mm - 4-40 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-004-SLL-S3 (50 Pcs) --- Shoulder Screws - 3.175x3.7 mm - 4-40 UNC Slotted Shallow Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $442.05 AUD Regular price Sale price $442.05 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 4.780 mm (Equiv. 0.188 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-005-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x4.78 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $194.59 AUD Regular price Sale price $194.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 4.780 mm (Equiv. 0.188 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-005-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x4.78 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $194.59 AUD Regular price Sale price $194.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-005-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x4.78 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-005-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x4.78 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $194.59 AUD Regular price Sale price $194.59 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 4.800 mm (Equiv. 0.189 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-005-SKT-P-S3 Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw 2 Available Now \| Further orders can be expected around Sat, Nov 01, 2025 Regular price $3.95 AUD Regular price ~~$7.16 AUD~~ Sale price $3.95 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 4.800 mm (Equiv. 0.189 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-005-SKT-P-S3 Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw 2 Available Now \| Further orders can be expected around Sat, Nov 01, 2025 Regular price $3.95 AUD Regular price ~~$7.16 AUD~~ Sale price $3.95 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
SHLD032-005-SKT-P-S3 --- Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Sale SHLD032-005-SKT-P-S3 --- Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $3.95 AUD Regular price ~~$7.16 AUD~~ Sale price $3.95 AUD Unit price per 2 Available Now Sale
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 4.800 mm (Equiv. 0.189 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-005-SL-P-S3 (50 Pcs) Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $253.32 AUD Regular price Sale price $253.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 4.800 mm (Equiv. 0.189 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-005-SL-P-S3 (50 Pcs) Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $253.32 AUD Regular price Sale price $253.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-005-SL-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-005-SL-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $253.32 AUD Regular price Sale price $253.32 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 4.800 mm (Equiv. 0.189 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-005-SL-S3 (5 Pcs) Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $36.95 AUD Regular price Sale price $36.95 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 4.800 mm (Equiv. 0.189 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-005-SL-S3 (5 Pcs) Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $36.95 AUD Regular price Sale price $36.95 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
SHLD032-005-SL-S3 (5 Pcs) --- Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-005-SL-S3 (5 Pcs) --- Shoulder Screws - 3.175x4.8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $36.95 AUD Regular price Sale price $36.95 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 6.350 mm (Equiv. 0.25 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-006-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x6.35 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 6.350 mm (Equiv. 0.25 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-006-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x6.35 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-006-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x6.35 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-006-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x6.35 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 6.390 mm (Equiv. 0.252 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-006-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x6.39 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $367.86 AUD Regular price Sale price $367.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 6.390 mm (Equiv. 0.252 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-006-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x6.39 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $367.86 AUD Regular price Sale price $367.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-006-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x6.39 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-006-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x6.39 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $367.86 AUD Regular price Sale price $367.86 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 6.400 mm (Equiv. 0.252 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-006-SL-P-S3 Shoulder Screws - 3.175x6.4 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw 1 Available Now \| Further orders can be expected around Sat, Nov 01, 2025 Regular price $3.86 AUD Regular price ~~$6.88 AUD~~ Sale price $3.86 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 6.400 mm (Equiv. 0.252 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-006-SL-P-S3 Shoulder Screws - 3.175x6.4 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw 1 Available Now \| Further orders can be expected around Sat, Nov 01, 2025 Regular price $3.86 AUD Regular price ~~$6.88 AUD~~ Sale price $3.86 AUD Unit price per Each Quantity Required 1 Available Now. Backorder if more than 1.
SHLD032-006-SL-P-S3 --- Shoulder Screws - 3.175x6.4 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Sale SHLD032-006-SL-P-S3 --- Shoulder Screws - 3.175x6.4 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $3.86 AUD Regular price ~~$6.88 AUD~~ Sale price $3.86 AUD Unit price per 1 Available Now Sale
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 6.400 mm (Equiv. 0.252 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-006-SL-S3 Shoulder Screws - 3.175x6.4 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 6.400 mm (Equiv. 0.252 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-006-SL-S3 Shoulder Screws - 3.175x6.4 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SHLD032-006-SL-S3 --- Shoulder Screws - 3.175x6.4 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-006-SL-S3 --- Shoulder Screws - 3.175x6.4 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 7.930 mm (Equiv. 0.312 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-008-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x7.93 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $220.50 AUD Regular price Sale price $220.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 7.930 mm (Equiv. 0.312 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-008-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x7.93 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $220.50 AUD Regular price Sale price $220.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-008-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x7.93 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-008-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x7.93 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $220.50 AUD Regular price Sale price $220.50 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 7.980 mm (Equiv. 0.314 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-008-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x7.98 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $282.86 AUD Regular price Sale price $282.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 7.980 mm (Equiv. 0.314 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-008-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x7.98 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $282.86 AUD Regular price Sale price $282.86 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-008-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x7.98 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-008-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x7.98 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $282.86 AUD Regular price Sale price $282.86 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 8.000 mm (Equiv. 0.315 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-008-SL-P-S3 (50 Pcs) Shoulder Screws - 3.175x8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $255.41 AUD Regular price Sale price $255.41 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 8.000 mm (Equiv. 0.315 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-008-SL-P-S3 (50 Pcs) Shoulder Screws - 3.175x8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $255.41 AUD Regular price Sale price $255.41 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-008-SL-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-008-SL-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $255.41 AUD Regular price Sale price $255.41 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 8.000 mm (Equiv. 0.315 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-008-SL-S3 Shoulder Screws - 3.175x8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw 6 Available Now \| Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.50 AUD Regular price ~~$7.35 AUD~~ Sale price $3.50 AUD Unit price per Each Quantity Required 6 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 8.000 mm (Equiv. 0.315 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-008-SL-S3 Shoulder Screws - 3.175x8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw 6 Available Now \| Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.50 AUD Regular price ~~$7.35 AUD~~ Sale price $3.50 AUD Unit price per Each Quantity Required 6 Available Now. These are priced to quit. Please contact us for a quote if you require more.
SHLD032-008-SL-S3 --- Shoulder Screws - 3.175x8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Sale SHLD032-008-SL-S3 --- Shoulder Screws - 3.175x8 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $3.50 AUD Regular price ~~$7.35 AUD~~ Sale price $3.50 AUD Unit price per 6 Available Now Sale
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 9.500 mm (Equiv. 0.374 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-010-SL-S3 Shoulder Screws - 3.175x9.5 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.025 / - 0.127} (Equiv. 0.125 in.)	Shoulder Length (A) 9.500 mm (Equiv. 0.374 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: Slotted Drive mm Category: Screws - Shoulder - Slotted
Part Number: SHLD032-010-SL-S3 Shoulder Screws - 3.175x9.5 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SHLD032-010-SL-S3 --- Shoulder Screws - 3.175x9.5 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-010-SL-S3 --- Shoulder Screws - 3.175x9.5 mm - 4-40 UNC Slotted - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $5.41 AUD Regular price Sale price $5.41 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 9.530 mm (Equiv. 0.375 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-010-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x9.53 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{+ 0.000 / - 0.076} (Equiv. 0.125 in.)	Shoulder Length (A) 9.530 mm (Equiv. 0.375 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.97 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-010-SKT-S3 (50 Pcs) Shoulder Screws - 3.175x9.53 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-010-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x9.53 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-010-SKT-S3 (50 Pcs) --- Shoulder Screws - 3.175x9.53 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $249.41 AUD Regular price Sale price $249.41 AUD Unit price per Out of stock! Backorder Now
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 9.560 mm (Equiv. 0.376 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm	Head Height (B) 3.18 mm	Head Diameter (F) 6.35 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-010-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x9.56 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $287.41 AUD Regular price Sale price $287.41 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shoulder Diameter (E) 3.175 mm _{- 0.013 / - 0.038} (Equiv. 0.125 in.)	Shoulder Length (A) 9.560 mm (Equiv. 0.376 in.)	Thread (D) 4-40 UNC	Max. Thread Length (C) 3.96 mm
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 Head Height (B): 3.18 mm Head Diameter (F): 6.35 mm Hex Key Size: 1.98 mm Category: Screws - Shoulder - Socket Head
Part Number: SHLD032-010-SKT-P-S3 (50 Pcs) Shoulder Screws - 3.175x9.56 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Nov 01, 2025 Regular price $287.41 AUD Regular price Sale price $287.41 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
SHLD032-010-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x9.56 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw SHLD032-010-SKT-P-S3 (50 Pcs) --- Shoulder Screws - 3.175x9.56 mm - 4-40 UNC Socket Head - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Screw Regular price $287.41 AUD Regular price Sale price $287.41 AUD Unit price per Out of stock! Backorder Now

Country/region

Collection: Screws - Shoulder

Category Details

Filter

Filter

Subscribe to our emails
