TR-095-110-040-S3

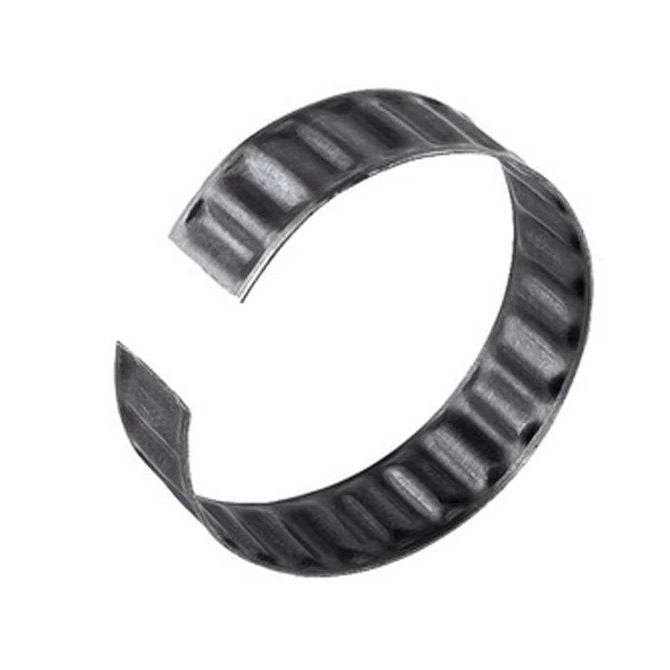

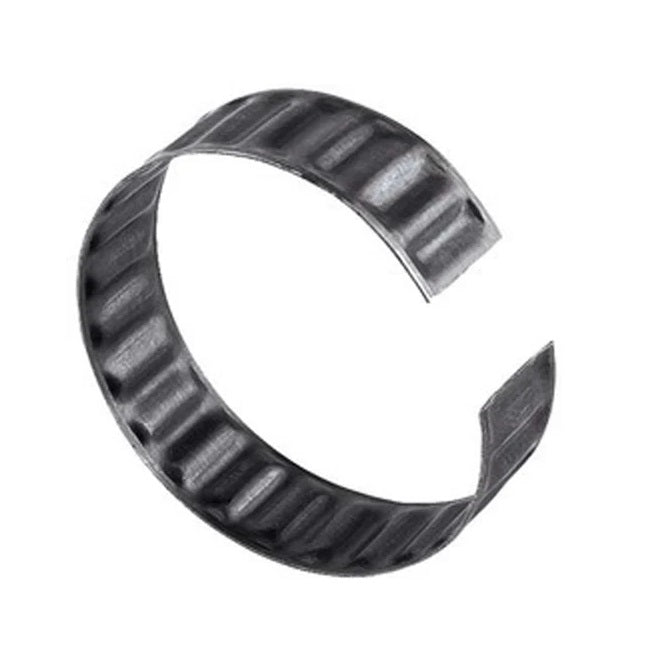

Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Ring

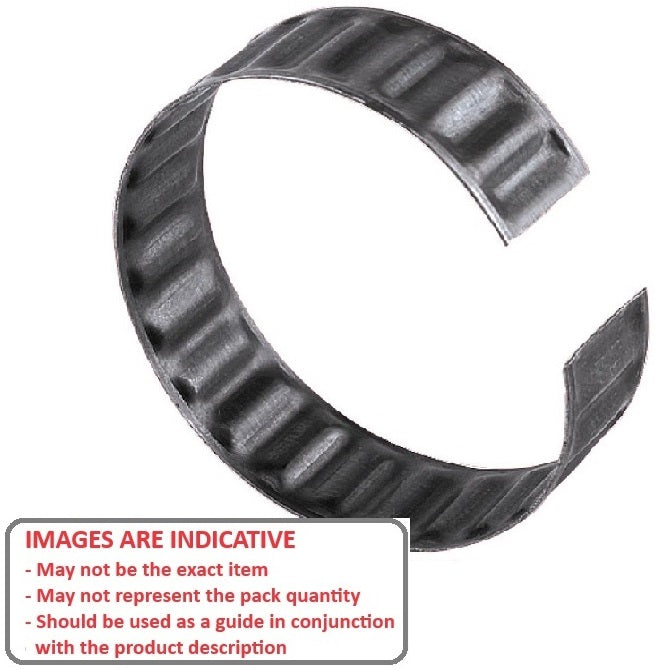

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Tolerance Retaining Rings - 9.50 to 9.48 10.97 to 10.90 4 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$34.50 AUD
$88.18 AUD $34.50 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 2 available now
Order 50 or more for $31.05 AUD
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Dec 09, 2025

Base Category: Retaining Rings - Tolerance

Top Level Category: Retaining Rings - Tolerance

Product Details

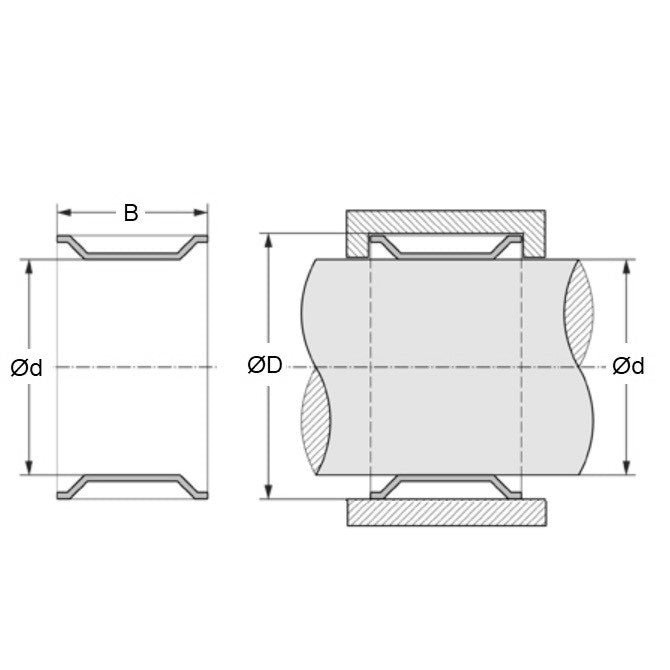

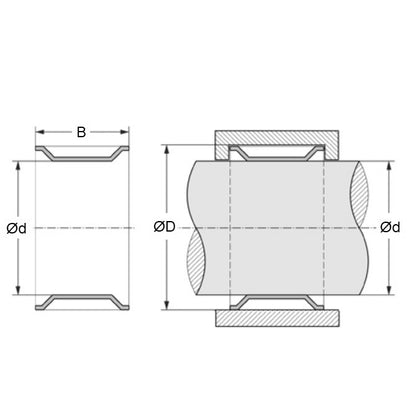

Inner Part OD (d): 9.50 to 9.48mm
(9.50 to 9.48mm is 0.374 in.)

Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
  • Inner Part OD (d): 9.50 to 9.48mm
    (9.50 to 9.48mm is 0.374 in.)
  • Housing ID (D): 10.97 to 10.90mm
    (10.97 to 10.90mm is 0.432 in.)
  • Ring Width (B): 4.00mm
    (4.00mm is 0.157 in.)
  • Outer Part ID (DT) mm: 10.82 to 10.77For Torque Transfer
  • Max. Design Torque: 0.90N.m
  • Style: For bearing OD
  • Max. Radial Load: 180N
  • Max. Design Thrust: 200N
  • To Suit OD of Bearing: R2

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 3547K11
  • TR0951100403
  • S77RH1M095X04

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
