TR-095-110-040-S3 - Datasheet
MBA
Category Information

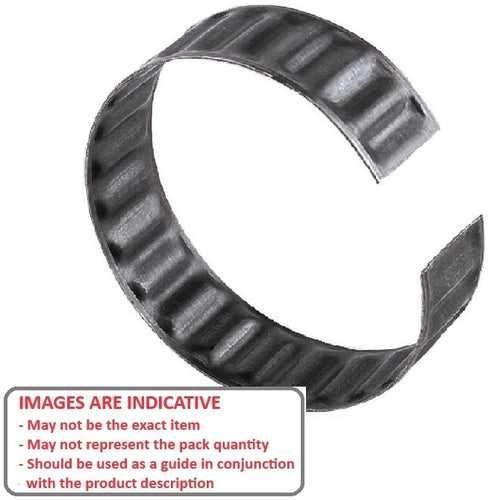

Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

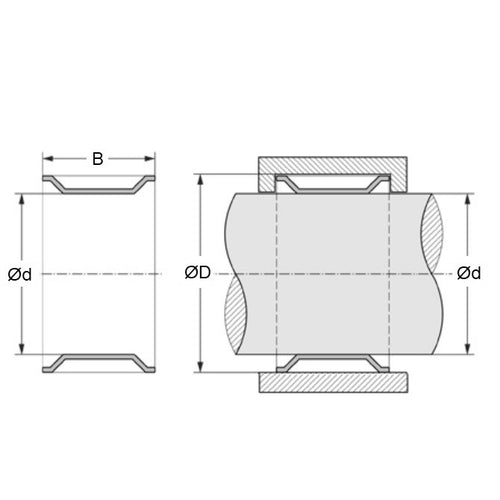

- Inner Part OD (d)
:
9.50 to 9.48
mm
(Equiv. 0.374 in.) - Housing ID (D)
10.97 to 10.90
mm
(Equiv. 0.432 in.) - Ring Width (B)
4.00
mm
(Equiv. 0.157 in.) - Outer Part ID (DT) mm 10.82 to 10.77 For Torque Transfer
- Max. Design Torque 0.90 N.m
- Style For bearing OD
- Max. Radial Load 180 N
- Max. Design Thrust 200 N
- To Suit OD of Bearing R2
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 3547K11
- TR0951100403
- S77RH1M095X04
