CS-0914-0381-12-M-C (Each)
Compression Springs - 9.14x38.1x1.19 mm Music Wire - Carbon Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleSpings Catalogue PDF
Assortment Kits
Order 50 or more
for $5.61 AUD Each
Couldn't load pickup availability
9.14x38.1x1.19 mm Compression Springs - Carbon Spring Steel - Sold per Each:
Base Category: Springs - Compression
Top Level Category: Springs - Compression - Music Wire
Product Details

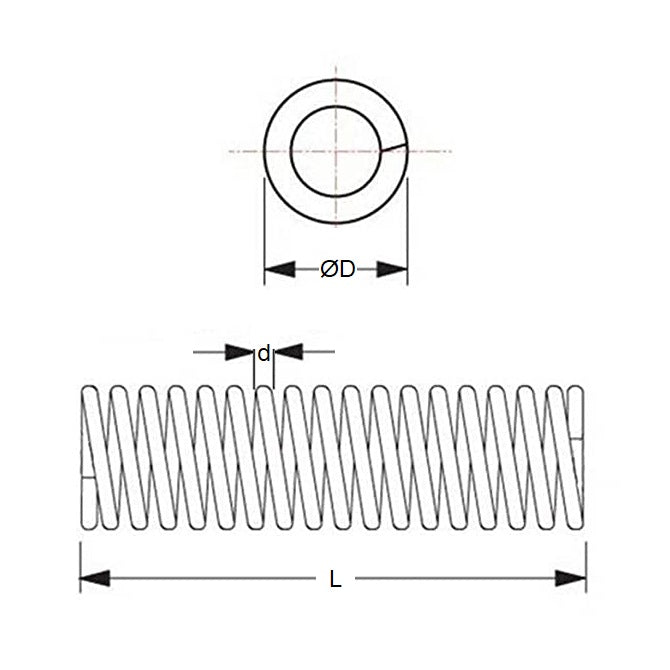

Spring OD (D0): 9.14mm+/- 0.203
(9.14mm is 0.36 in.)
Carbon Spring Steel
- Spring OD (D0): 9.14mm
+/- 0.203
(9.14mm is 0.36 in.)
- Free Length (L0): 38.1mm
+/- 1.27
(38.1mm is 1.5 in.)
- Wire Diameter (d): 1.19mm
+/- 0.018
(1.19mm is 0.047 in.)
- Rate (P/f): 3.8N/mm
- Approx. ID: 6.8mm
- End Type: Closed
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ASI C0360-049-1500
- Reid Tool® S-1265
- C03600491500
- S1265
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CS0914038112MC, CS09140381
