Collection: Springs - Compression - Music Wire

Springs (With Images)

Compression

Music Wire
Stainless Steel

614 Products in this selection

This category includes short and long lengths
Standard springs may or may not be supplied with ends ground flush.
If the end type is important to your application please contact us for more information or a special quote.

Miniature Bearings Australia (Minibearings)

Additional resources:
Spings Catalogue PDF
Assortment Kits

A more concise listing may be found on the Smallparts store at Springs - Compression - Music Wire. Smallparts promote the most popular MBA products.

Spring OD (D0)	Free Length (L0)	Wire Diameter (d)	Loaded Height (L1)	Load at L1	Rate (P/f)	Indicative Image

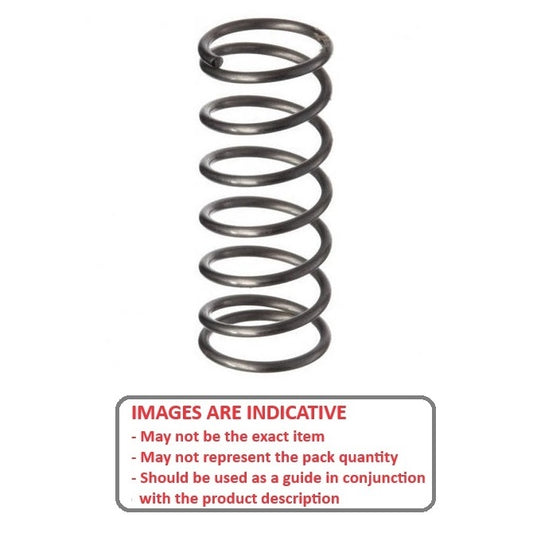

Spring OD (D0) 2.24 mm +/- 0.076 _{(0.088 in.)}	Free Length (L0) 6.4 mm +/- 0.38 _{(0.252 in.)}	Wire Diameter (d) 0.25 mm +/- 0.015 _{(0.01 in.)}			Rate (P/f) 0.9 N/mm
Material: Carbon Spring Steel mm: 1.7 Approx. ID End Type: Closed
Part Number: CS-0224-0064-02-M-C (200 Pcs) Compression Springs - 2.24x6.4x0.25 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200
Spring OD (D0)	Free Length (L0)	Wire Diameter (d)	Loaded Height (L1)	Indicative Image
Spring OD (D0) 2.24 mm +/- 0.076 _{(0.088 in.)}	Free Length (L0) 6.4 mm +/- 0.38 _{(0.252 in.)}	Wire Diameter (d) 0.25 mm +/- 0.015 _{(0.01 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.9 N/mm mm: 1.7 Approx. ID End Type: Closed
Part Number: CS-0224-0064-02-M-C (200 Pcs) Compression Springs - 2.24x6.4x0.25 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 20, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200 View the product page first if you are unsure.
CS-0224-0064-02-M-C (200 Pcs) --- Compression Springs - 2.24x6.4x0.25 mm Music Wire - Carbon Spring Steel Sale CS-0224-0064-02-M-C (200 Pcs) --- Compression Springs - 2.24x6.4x0.25 mm Music Wire - Carbon Spring Steel Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 2.24 mm +/- 0.076 _{(0.088 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.25 mm +/- 0.015 _{(0.01 in.)}			Rate (P/f) 0.5 N/mm
Material: Carbon Spring Steel mm: 1.7 Approx. ID End Type: Closed
Part Number: CS-0224-0127-02-M-C (200 Pcs) Compression Springs - 2.24x12.7x0.25 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200
Spring OD (D0) 2.24 mm +/- 0.076 _{(0.088 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.25 mm +/- 0.015 _{(0.01 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.5 N/mm mm: 1.7 Approx. ID End Type: Closed
Part Number: CS-0224-0127-02-M-C (200 Pcs) Compression Springs - 2.24x12.7x0.25 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200 View the product page first if you are unsure.
CS-0224-0127-02-M-C (200 Pcs) --- Compression Springs - 2.24x12.7x0.25 mm Music Wire - Carbon Spring Steel Sale CS-0224-0127-02-M-C (200 Pcs) --- Compression Springs - 2.24x12.7x0.25 mm Music Wire - Carbon Spring Steel Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 2.24 mm +/- 0.076 _{(0.088 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.25 mm +/- 0.015 _{(0.01 in.)}			Rate (P/f) 0.3 N/mm
Material: Carbon Spring Steel mm: 1.7 Approx. ID End Type: Closed
Part Number: CS-0224-0191-02-M-C (500 Pcs) Compression Springs - 2.24x19.1x0.25 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $3,126.59 AUD Regular price Sale price $3,126.59 AUD Unit price per Per 500
Spring OD (D0) 2.24 mm +/- 0.076 _{(0.088 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.25 mm +/- 0.015 _{(0.01 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.3 N/mm mm: 1.7 Approx. ID End Type: Closed
Part Number: CS-0224-0191-02-M-C (500 Pcs) Compression Springs - 2.24x19.1x0.25 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $3,126.59 AUD Regular price Sale price $3,126.59 AUD Unit price per Per 500 View the product page first if you are unsure.
CS-0224-0191-02-M-C (500 Pcs) --- Compression Springs - 2.24x19.1x0.25 mm - Carbon Spring Steel CS-0224-0191-02-M-C (500 Pcs) --- Compression Springs - 2.24x19.1x0.25 mm - Carbon Spring Steel Regular price $3,126.59 AUD Regular price Sale price $3,126.59 AUD Unit price per Out of stock! Backorder Now
Spring OD (D0) 2.24 mm +/- 0.076 _{(0.088 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.30 mm +/- 0.015 _{(0.012 in.)}			Rate (P/f) 0.5 N/mm
Material: Carbon Spring Steel mm: 1.6 Approx. ID End Type: Closed
Part Number: CS-0224-0191-03-M-C Compression Springs - 2.24x19.1x0.3 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $11.14 AUD Regular price ~~$13.36 AUD~~ Sale price $11.14 AUD Unit price per Each
Spring OD (D0) 2.24 mm +/- 0.076 _{(0.088 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.30 mm +/- 0.015 _{(0.012 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.5 N/mm mm: 1.6 Approx. ID End Type: Closed
Part Number: CS-0224-0191-03-M-C Compression Springs - 2.24x19.1x0.3 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $11.14 AUD Regular price ~~$13.36 AUD~~ Sale price $11.14 AUD Unit price per Each View the product page first if you are unsure.
CS-0224-0191-03-M-C --- Compression Springs - 2.24x19.1x0.3 mm - Carbon Spring Steel Sale CS-0224-0191-03-M-C --- Compression Springs - 2.24x19.1x0.3 mm - Carbon Spring Steel Regular price $11.14 AUD Regular price ~~$13.36 AUD~~ Sale price $11.14 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 2.38 mm +/- 0.076 _{(0.094 in.)}	Free Length (L0) 41.3 mm +/- 1.27 _{(1.626 in.)}	Wire Diameter (d) 0.45 mm +/- 0.015 _{(0.018 in.)}			Rate (P/f) 1.5 N/mm
Material: Carbon Spring Steel Solid Height (Sh): 18.540 mm mm: 1.5 Approx. ID End Type: Closed
Part Number: CS-0238-0413-05-M-C Compression Springs - 2.38x41.3x0.45 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.23 AUD Regular price ~~$5.07 AUD~~ Sale price $4.23 AUD Unit price per Each
Spring OD (D0) 2.38 mm +/- 0.076 _{(0.094 in.)}	Free Length (L0) 41.3 mm +/- 1.27 _{(1.626 in.)}	Wire Diameter (d) 0.45 mm +/- 0.015 _{(0.018 in.)}
Material: Carbon Spring Steel Rate (P/f): 1.5 N/mm Solid Height (Sh): 18.540 mm mm: 1.5 Approx. ID End Type: Closed
Part Number: CS-0238-0413-05-M-C Compression Springs - 2.38x41.3x0.45 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.23 AUD Regular price ~~$5.07 AUD~~ Sale price $4.23 AUD Unit price per Each View the product page first if you are unsure.
CS-0238-0413-05-M-C --- Compression Springs - 2.38x41.3x0.45 mm - Carbon Spring Steel Sale CS-0238-0413-05-M-C --- Compression Springs - 2.38x41.3x0.45 mm - Carbon Spring Steel Regular price $4.23 AUD Regular price ~~$5.07 AUD~~ Sale price $4.23 AUD Unit price per Out of stock! Backorder Now Sale

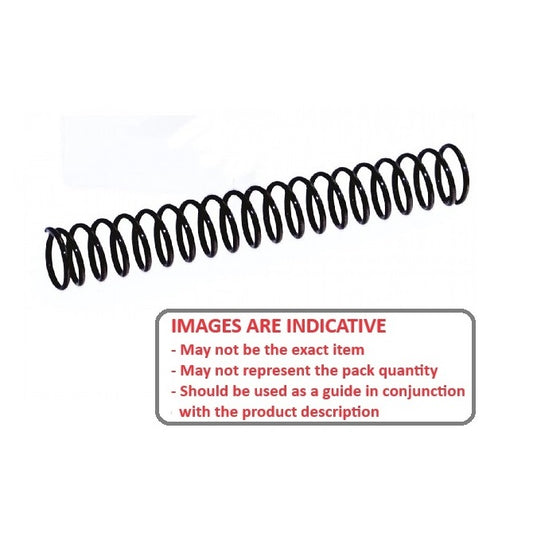

Spring OD (D0) 2.38 mm +/- 0.076 _{(0.094 in.)}	Free Length (L0) 254.0 mm +/- 7.62 _{(10 in.)}	Wire Diameter (d) 0.25 mm +/- 0.015 _{(0.01 in.)}
Material: Carbon Spring Steel mm: 1.9 Approx. ID End Type: Open
Part Number: CS-0238-2540-03-M (200 Pcs) Compression Springs - 2.38x254x0.25 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,226.77 AUD Regular price ~~$1,472.13 AUD~~ Sale price $1,226.77 AUD Unit price per Per 200
Spring OD (D0) 2.38 mm +/- 0.076 _{(0.094 in.)}	Free Length (L0) 254.0 mm +/- 7.62 _{(10 in.)}	Wire Diameter (d) 0.25 mm +/- 0.015 _{(0.01 in.)}
Material: Carbon Spring Steel mm: 1.9 Approx. ID End Type: Open
Part Number: CS-0238-2540-03-M (200 Pcs) Compression Springs - 2.38x254x0.25 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,226.77 AUD Regular price ~~$1,472.13 AUD~~ Sale price $1,226.77 AUD Unit price per Per 200 View the product page first if you are unsure.
CS-0238-2540-03-M (200 Pcs) --- Compression Springs - 2.38x254x0.25 mm Music Wire - Carbon Spring Steel Sale CS-0238-2540-03-M (200 Pcs) --- Compression Springs - 2.38x254x0.25 mm Music Wire - Carbon Spring Steel Regular price $1,226.77 AUD Regular price ~~$1,472.13 AUD~~ Sale price $1,226.77 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 2.38 mm +/- 0.076 _{(0.094 in.)}	Free Length (L0) 254.0 mm +/- 7.62 _{(10 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}
Material: Carbon Spring Steel mm: 1.7 Approx. ID End Type: Open
Part Number: CS-0238-2540-04-M Compression Springs - 2.38x254x0.36 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each
Spring OD (D0) 2.38 mm +/- 0.076 _{(0.094 in.)}	Free Length (L0) 254.0 mm +/- 7.62 _{(10 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}
Material: Carbon Spring Steel mm: 1.7 Approx. ID End Type: Open
Part Number: CS-0238-2540-04-M Compression Springs - 2.38x254x0.36 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each View the product page first if you are unsure.
CS-0238-2540-04-M --- Compression Springs - 2.38x254x0.36 mm - Carbon Spring Steel CS-0238-2540-04-M --- Compression Springs - 2.38x254x0.36 mm - Carbon Spring Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Out of stock! Backorder Now

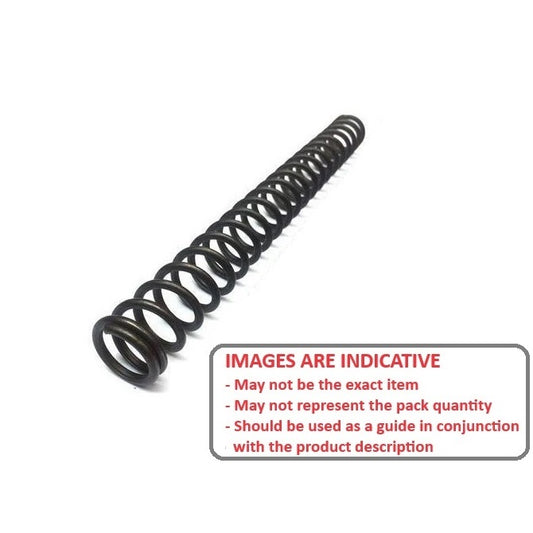

Spring OD (D0) 2.39 mm _{(0.094 in.)}	Free Length (L0) 914 mm _{(35.984 in.)}	Wire Diameter (d) 0.33 mm _{(0.013 in.)}			Rate (P/f) 0.4 N/mm
Material: Music Wire mm: 1.7 Approx. ID End Type: Closed
Part Number: CS-0239-9144-03-M Compression Springs - 2.39x914x0.33 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each
Spring OD (D0) 2.39 mm _{(0.094 in.)}	Free Length (L0) 914 mm _{(35.984 in.)}	Wire Diameter (d) 0.33 mm _{(0.013 in.)}
Material: Music Wire Rate (P/f): 0.4 N/mm mm: 1.7 Approx. ID End Type: Closed
Part Number: CS-0239-9144-03-M Compression Springs - 2.39x914x0.33 mm - Music Wire Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Each View the product page first if you are unsure.
CS-0239-9144-03-M --- Compression Springs - 2.39x914x0.33 mm - Music Wire Sale CS-0239-9144-03-M --- Compression Springs - 2.39x914x0.33 mm - Music Wire Regular price $17.95 AUD Regular price ~~$21.55 AUD~~ Sale price $17.95 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.30 mm +/- 0.015 _{(0.012 in.)}			Rate (P/f) 0.4 N/mm
Material: Carbon Spring Steel mm: 2.5 Approx. ID End Type: Closed
Part Number: CS-0305-0127-03-M-C (5 Pcs) Compression Springs - 3.05x12.7x0.3 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $76.68 AUD Regular price ~~$92.02 AUD~~ Sale price $76.68 AUD Unit price per Per 5
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.30 mm +/- 0.015 _{(0.012 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.4 N/mm mm: 2.5 Approx. ID End Type: Closed
Part Number: CS-0305-0127-03-M-C (5 Pcs) Compression Springs - 3.05x12.7x0.3 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $76.68 AUD Regular price ~~$92.02 AUD~~ Sale price $76.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CS-0305-0127-03-M-C (5 Pcs) --- Compression Springs - 3.05x12.7x0.3 mm - Carbon Spring Steel Sale CS-0305-0127-03-M-C (5 Pcs) --- Compression Springs - 3.05x12.7x0.3 mm - Carbon Spring Steel Regular price $76.68 AUD Regular price ~~$92.02 AUD~~ Sale price $76.68 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}			Rate (P/f) 0.9 N/mm
Material: Carbon Spring Steel mm: 2.3 Approx. ID End Type: Closed
Part Number: CS-0305-0127-036-M-C Compression Springs - 3.05x12.7x0.36 mm - Carbon Spring Steel 2 Available Immediately \| Further orders can be expected around Tue, Jul 15, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.9 N/mm mm: 2.3 Approx. ID End Type: Closed
Part Number: CS-0305-0127-036-M-C Compression Springs - 3.05x12.7x0.36 mm - Carbon Spring Steel 2 Available Immediately \| Further orders can be expected around Tue, Jul 15, 2025 Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per Each View the product page first if you are unsure.
CS-0305-0127-036-M-C --- Compression Springs - 3.05x12.7x0.36 mm - Carbon Spring Steel CS-0305-0127-036-M-C --- Compression Springs - 3.05x12.7x0.36 mm - Carbon Spring Steel Regular price $6.86 AUD Regular price Sale price $6.86 AUD Unit price per 2 Available Now
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.41 mm +/- 0.015 _{(0.016 in.)}			Rate (P/f) 1.5 N/mm
Material: Carbon Spring Steel mm: 2.2 Approx. ID End Type: Closed
Part Number: CS-0305-0127-04-M-C (5 Pcs) Compression Springs - 3.05x12.7x0.41 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Per 5
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.41 mm +/- 0.015 _{(0.016 in.)}
Material: Carbon Spring Steel Rate (P/f): 1.5 N/mm mm: 2.2 Approx. ID End Type: Closed
Part Number: CS-0305-0127-04-M-C (5 Pcs) Compression Springs - 3.05x12.7x0.41 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Per 5 View the product page first if you are unsure.
CS-0305-0127-04-M-C (5 Pcs) --- Compression Springs - 3.05x12.7x0.41 mm - Carbon Spring Steel Sale CS-0305-0127-04-M-C (5 Pcs) --- Compression Springs - 3.05x12.7x0.41 mm - Carbon Spring Steel Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.46 mm +/- 0.015 _{(0.018 in.)}			Rate (P/f) 2.3 N/mm
Material: Carbon Spring Steel mm: 2.1 Approx. ID End Type: Closed
Part Number: CS-0305-0127-046-M-C (5 Pcs) Compression Springs - 3.05x12.7x0.46 mm - Carbon Spring Steel 1 pack (5 pcs) Available Immediately \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.89 AUD Regular price ~~$22.11 AUD~~ Sale price $5.89 AUD Unit price per Per 5
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.46 mm +/- 0.015 _{(0.018 in.)}
Material: Carbon Spring Steel Rate (P/f): 2.3 N/mm mm: 2.1 Approx. ID End Type: Closed
Part Number: CS-0305-0127-046-M-C (5 Pcs) Compression Springs - 3.05x12.7x0.46 mm - Carbon Spring Steel 1 pack (5 pcs) Available Immediately \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.89 AUD Regular price ~~$22.11 AUD~~ Sale price $5.89 AUD Unit price per Per 5
CS-0305-0127-046-M-C (5 Pcs) --- Compression Springs - 3.05x12.7x0.46 mm - Carbon Spring Steel Sale CS-0305-0127-046-M-C (5 Pcs) --- Compression Springs - 3.05x12.7x0.46 mm - Carbon Spring Steel Regular price $5.89 AUD Regular price ~~$22.11 AUD~~ Sale price $5.89 AUD Unit price per 1 Available Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.51 mm +/- 0.015 _{(0.02 in.)}			Rate (P/f) 3.8 N/mm
Material: Carbon Spring Steel mm: 2.0 Approx. ID End Type: Closed
Part Number: CS-0305-0127-05-M-C (200 Pcs) Compression Springs - 3.05x12.7x0.51 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,597.23 AUD Regular price ~~$1,916.67 AUD~~ Sale price $1,597.23 AUD Unit price per Per 200
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.51 mm +/- 0.015 _{(0.02 in.)}
Material: Carbon Spring Steel Rate (P/f): 3.8 N/mm mm: 2.0 Approx. ID End Type: Closed
Part Number: CS-0305-0127-05-M-C (200 Pcs) Compression Springs - 3.05x12.7x0.51 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,597.23 AUD Regular price ~~$1,916.67 AUD~~ Sale price $1,597.23 AUD Unit price per Per 200 View the product page first if you are unsure.
CS-0305-0127-05-M-C (200 Pcs) --- Compression Springs - 3.05x12.7x0.51 mm Music Wire - Carbon Spring Steel Sale CS-0305-0127-05-M-C (200 Pcs) --- Compression Springs - 3.05x12.7x0.51 mm Music Wire - Carbon Spring Steel Regular price $1,597.23 AUD Regular price ~~$1,916.67 AUD~~ Sale price $1,597.23 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.56 mm +/- 0.015 _{(0.022 in.)}			Rate (P/f) 5.5 N/mm
Material: Carbon Spring Steel mm: 1.9 Approx. ID End Type: Closed
Part Number: CS-0305-0127-06-M-C (5 Pcs) Compression Springs - 3.05x12.7x0.56 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 5
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 12.7 mm +/- 0.38 _{(0.5 in.)}	Wire Diameter (d) 0.56 mm +/- 0.015 _{(0.022 in.)}
Material: Carbon Spring Steel Rate (P/f): 5.5 N/mm mm: 1.9 Approx. ID End Type: Closed
Part Number: CS-0305-0127-06-M-C (5 Pcs) Compression Springs - 3.05x12.7x0.56 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CS-0305-0127-06-M-C (5 Pcs) --- Compression Springs - 3.05x12.7x0.56 mm - Carbon Spring Steel CS-0305-0127-06-M-C (5 Pcs) --- Compression Springs - 3.05x12.7x0.56 mm - Carbon Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}			Rate (P/f) 0.6 N/mm
Material: Carbon Spring Steel Solid Height (Sh): 5.970 mm mm: 2.3 Approx. ID End Type: Closed
Part Number: CS-0305-0191-04-M-C Compression Springs - 3.05x19.1x0.36 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.14 AUD Regular price ~~$4.96 AUD~~ Sale price $4.14 AUD Unit price per Each
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.6 N/mm Solid Height (Sh): 5.970 mm mm: 2.3 Approx. ID End Type: Closed
Part Number: CS-0305-0191-04-M-C Compression Springs - 3.05x19.1x0.36 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.14 AUD Regular price ~~$4.96 AUD~~ Sale price $4.14 AUD Unit price per Each View the product page first if you are unsure.
CS-0305-0191-04-M-C --- Compression Springs - 3.05x19.1x0.36 mm - Carbon Spring Steel Sale CS-0305-0191-04-M-C --- Compression Springs - 3.05x19.1x0.36 mm - Carbon Spring Steel Regular price $4.14 AUD Regular price ~~$4.96 AUD~~ Sale price $4.14 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.46 mm +/- 0.015 _{(0.018 in.)}			Rate (P/f) 1.5 N/mm
Material: Carbon Spring Steel Solid Height (Sh): 9.120 mm mm: 2.1 Approx. ID End Type: Closed
Part Number: CS-0305-0191-05-M-C (5 Pcs) Compression Springs - 3.05x19.1x0.46 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Per 5
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.46 mm +/- 0.015 _{(0.018 in.)}
Material: Carbon Spring Steel Rate (P/f): 1.5 N/mm Solid Height (Sh): 9.120 mm mm: 2.1 Approx. ID End Type: Closed
Part Number: CS-0305-0191-05-M-C (5 Pcs) Compression Springs - 3.05x19.1x0.46 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CS-0305-0191-05-M-C (5 Pcs) --- Compression Springs - 3.05x19.1x0.46 mm - Carbon Spring Steel Sale CS-0305-0191-05-M-C (5 Pcs) --- Compression Springs - 3.05x19.1x0.46 mm - Carbon Spring Steel Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.56 mm +/- 0.015 _{(0.022 in.)}			Rate (P/f) 3.5 N/mm
Material: Carbon Spring Steel Solid Height (Sh): 11.710 mm mm: 1.9 Approx. ID End Type: Closed
Part Number: CS-0305-0191-06-M-C (5 Pcs) Compression Springs - 3.05x19.1x0.56 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Per 5
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 19.1 mm +/- 0.64 _{(0.752 in.)}	Wire Diameter (d) 0.56 mm +/- 0.015 _{(0.022 in.)}
Material: Carbon Spring Steel Rate (P/f): 3.5 N/mm Solid Height (Sh): 11.710 mm mm: 1.9 Approx. ID End Type: Closed
Part Number: CS-0305-0191-06-M-C (5 Pcs) Compression Springs - 3.05x19.1x0.56 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Per 5 View the product page first if you are unsure.
CS-0305-0191-06-M-C (5 Pcs) --- Compression Springs - 3.05x19.1x0.56 mm - Carbon Spring Steel Sale CS-0305-0191-06-M-C (5 Pcs) --- Compression Springs - 3.05x19.1x0.56 mm - Carbon Spring Steel Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 25.4 mm +/- 0.64 _{(1 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}			Rate (P/f) 0.4 N/mm
Material: Carbon Spring Steel mm: 2.3 Approx. ID End Type: Closed
Part Number: CS-031-025-036-M-C (200 Pcs) Compression Springs - 3.05x25.4x0.36 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 25.4 mm +/- 0.64 _{(1 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.4 N/mm mm: 2.3 Approx. ID End Type: Closed
Part Number: CS-031-025-036-M-C (200 Pcs) Compression Springs - 3.05x25.4x0.36 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200 View the product page first if you are unsure.
CS-031-025-036-M-C (200 Pcs) --- Compression Springs - 3.05x25.4x0.36 mm Music Wire - Carbon Spring Steel Sale CS-031-025-036-M-C (200 Pcs) --- Compression Springs - 3.05x25.4x0.36 mm Music Wire - Carbon Spring Steel Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 25.4 mm +/- 0.64 _{(1 in.)}	Wire Diameter (d) 0.41 mm +/- 0.015 _{(0.016 in.)}			Rate (P/f) 0.7 N/mm
Material: Carbon Spring Steel mm: 2.2 Approx. ID End Type: Closed
Part Number: CS-0305-0254-04-M-C (200 Pcs) Compression Springs - 3.05x25.4x0.41 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 25.4 mm +/- 0.64 _{(1 in.)}	Wire Diameter (d) 0.41 mm +/- 0.015 _{(0.016 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.7 N/mm mm: 2.2 Approx. ID End Type: Closed
Part Number: CS-0305-0254-04-M-C (200 Pcs) Compression Springs - 3.05x25.4x0.41 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200 View the product page first if you are unsure.
CS-0305-0254-04-M-C (200 Pcs) --- Compression Springs - 3.05x25.4x0.41 mm Music Wire - Carbon Spring Steel Sale CS-0305-0254-04-M-C (200 Pcs) --- Compression Springs - 3.05x25.4x0.41 mm Music Wire - Carbon Spring Steel Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 25.4 mm +/- 0.64 _{(1 in.)}	Wire Diameter (d) 0.46 mm +/- 0.015 _{(0.018 in.)}			Rate (P/f) 1.1 N/mm
Material: Carbon Spring Steel mm: 2.1 Approx. ID End Type: Closed
Part Number: CS-0305-0254-05-M-C (200 Pcs) Compression Springs - 3.05x25.4x0.46 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 25.4 mm +/- 0.64 _{(1 in.)}	Wire Diameter (d) 0.46 mm +/- 0.015 _{(0.018 in.)}
Material: Carbon Spring Steel Rate (P/f): 1.1 N/mm mm: 2.1 Approx. ID End Type: Closed
Part Number: CS-0305-0254-05-M-C (200 Pcs) Compression Springs - 3.05x25.4x0.46 mm Music Wire - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jul 15, 2025 Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Per 200 View the product page first if you are unsure.
CS-0305-0254-05-M-C (200 Pcs) --- Compression Springs - 3.05x25.4x0.46 mm Music Wire - Carbon Spring Steel Sale CS-0305-0254-05-M-C (200 Pcs) --- Compression Springs - 3.05x25.4x0.46 mm Music Wire - Carbon Spring Steel Regular price $1,050.59 AUD Regular price ~~$1,260.71 AUD~~ Sale price $1,050.59 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 25.4 mm +/- 0.64 _{(1 in.)}	Wire Diameter (d) 0.56 mm +/- 0.015 _{(0.022 in.)}			Rate (P/f) 2.6 N/mm
Material: Carbon Spring Steel mm: 1.9 Approx. ID End Type: Closed
Part Number: CS-0305-0254-06-M-C Compression Springs - 3.05x25.4x0.56 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $3.23 AUD Regular price ~~$3.87 AUD~~ Sale price $3.23 AUD Unit price per Each
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 25.4 mm +/- 0.64 _{(1 in.)}	Wire Diameter (d) 0.56 mm +/- 0.015 _{(0.022 in.)}
Material: Carbon Spring Steel Rate (P/f): 2.6 N/mm mm: 1.9 Approx. ID End Type: Closed
Part Number: CS-0305-0254-06-M-C Compression Springs - 3.05x25.4x0.56 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $3.23 AUD Regular price ~~$3.87 AUD~~ Sale price $3.23 AUD Unit price per Each View the product page first if you are unsure.
CS-0305-0254-06-M-C --- Compression Springs - 3.05x25.4x0.56 mm - Carbon Spring Steel Sale CS-0305-0254-06-M-C --- Compression Springs - 3.05x25.4x0.56 mm - Carbon Spring Steel Regular price $3.23 AUD Regular price ~~$3.87 AUD~~ Sale price $3.23 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 31.8 mm +/- 1.27 _{(1.252 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}			Rate (P/f) 0.4 N/mm
Material: Carbon Spring Steel Solid Height (Sh): 9.350 mm mm: 2.3 Approx. ID End Type: Closed
Part Number: CS-0305-0318-04-M-C Compression Springs - 3.05x31.8x0.36 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Each
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 31.8 mm +/- 1.27 _{(1.252 in.)}	Wire Diameter (d) 0.36 mm +/- 0.015 _{(0.014 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.4 N/mm Solid Height (Sh): 9.350 mm mm: 2.3 Approx. ID End Type: Closed
Part Number: CS-0305-0318-04-M-C Compression Springs - 3.05x31.8x0.36 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Each View the product page first if you are unsure.
CS-0305-0318-04-M-C --- Compression Springs - 3.05x31.8x0.36 mm - Carbon Spring Steel Sale CS-0305-0318-04-M-C --- Compression Springs - 3.05x31.8x0.36 mm - Carbon Spring Steel Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 31.8 mm +/- 1.27 _{(1.252 in.)}	Wire Diameter (d) 0.46 mm +/- 0.015 _{(0.018 in.)}			Rate (P/f) 0.9 N/mm
Material: Carbon Spring Steel Solid Height (Sh): 14.200 mm mm: 2.1 Approx. ID End Type: Closed
Part Number: CS-0305-0318-05-M-C Compression Springs - 3.05x31.8x0.46 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Each
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 31.8 mm +/- 1.27 _{(1.252 in.)}	Wire Diameter (d) 0.46 mm +/- 0.015 _{(0.018 in.)}
Material: Carbon Spring Steel Rate (P/f): 0.9 N/mm Solid Height (Sh): 14.200 mm mm: 2.1 Approx. ID End Type: Closed
Part Number: CS-0305-0318-05-M-C Compression Springs - 3.05x31.8x0.46 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Each View the product page first if you are unsure.
CS-0305-0318-05-M-C --- Compression Springs - 3.05x31.8x0.46 mm - Carbon Spring Steel Sale CS-0305-0318-05-M-C --- Compression Springs - 3.05x31.8x0.46 mm - Carbon Spring Steel Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Out of stock! Backorder Now Sale
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 31.8 mm +/- 1.27 _{(1.252 in.)}	Wire Diameter (d) 0.56 mm +/- 0.015 _{(0.022 in.)}			Rate (P/f) 2.0 N/mm
Material: Carbon Spring Steel Solid Height (Sh): 18.770 mm mm: 1.9 Approx. ID End Type: Closed
Part Number: CS-0305-0318-06-M-C Compression Springs - 3.05x31.8x0.56 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Each
Spring OD (D0) 3.05 mm +/- 0.127 _{(0.12 in.)}	Free Length (L0) 31.8 mm +/- 1.27 _{(1.252 in.)}	Wire Diameter (d) 0.56 mm +/- 0.015 _{(0.022 in.)}
Material: Carbon Spring Steel Rate (P/f): 2.0 N/mm Solid Height (Sh): 18.770 mm mm: 1.9 Approx. ID End Type: Closed
Part Number: CS-0305-0318-06-M-C Compression Springs - 3.05x31.8x0.56 mm - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Aug 19, 2025 Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Each View the product page first if you are unsure.
CS-0305-0318-06-M-C --- Compression Springs - 3.05x31.8x0.56 mm - Carbon Spring Steel Sale CS-0305-0318-06-M-C --- Compression Springs - 3.05x31.8x0.56 mm - Carbon Spring Steel Regular price $4.32 AUD Regular price ~~$5.18 AUD~~ Sale price $4.32 AUD Unit price per Out of stock! Backorder Now Sale

Miniature Bearings Australia Pty Ltd - 3/8 Boyland Avenue, Coopers Plains, Queensland, Australia. (abn: 94 069 113 800)
