S688A-ZZ-MC4-AF12 (PK-100)

Name: Single Row Ball Bearings - 8x16x5 mm Unflanged - Stainless Steel AISI 440C Bearing (Sold Per PK-100) - - S688A-ZZ-MC4-AF12
Brand: MBA
SKU: S688AZZMC4AF12
Price: 486.05 AUD
Availability: BackOrder

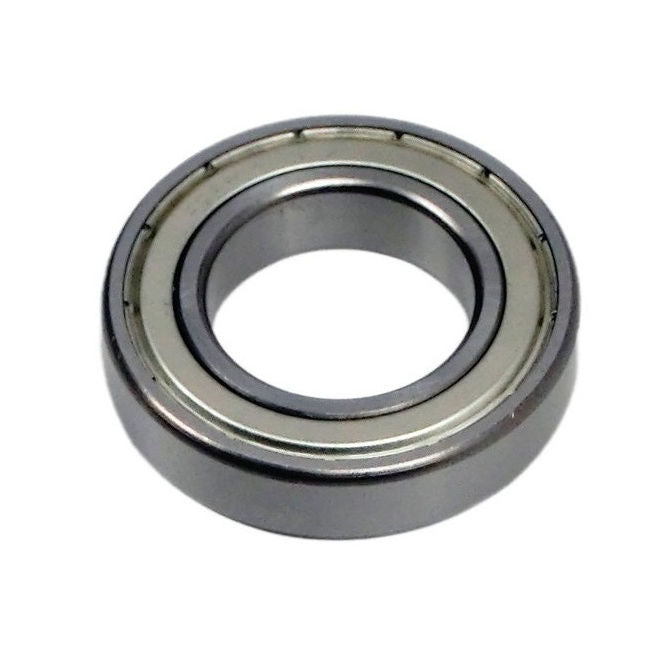

Single Row Ball Bearings - 8x16x5 mm Unflanged - Stainless Steel AISI 440C Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$486.05 AUD

Priced, Stocked and Sold Per 100 Units

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $437.45 AUD

Product Details

ID (d): 8.000mm
_{+ 0.000 / - 0.0075}
_{(8.000mm is 0.315 in.)}

Stainless Steel AISI 440C

ID (d): 8.000mm
_{+ 0.000 / - 0.0075}
_{(8.000mm is 0.315 in.)}
OD (D): 16.000mm
_{+ 0.000 / - 0.0075}
_{(16.000mm is 0.63 in.)}
Width (B): 5.000mm
_{+ 0.000 / - 0.125}
_{(5.000mm is 0.197 in.)}
Precision Grade: Abec 1
Closure Type: ZZ
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ISO S688ZZMC4AF2
ISO S688-ZZMC4-AF2
ISO SS688ZZMC4AF2
ISO SS688-ZZMC4-AF2
688A
688ABASIC

Used for

Fishing Reel Parts
Daiwa - 3500 - 4000 - Bearing 8-16-5mm
Daiwa - Jupiter Series - Bearing 8-16-5mm
Daiwa - Regal Series S - X - Z - Bearing 8-16-5mm
Duro - 0.040 inch Line Game Reel - Handle Bearing 8-16-5mm
Duro - 0.040 inch Line Game Reel - Spool Bearing 8-16-5mm
Jarvis Walker - 3500 Ultra Power Long Cast - Spool Bearing 8-16-5mm
Jarvis Walker - Freespooler 4000 - Handle Bearing 8-16-5mm
Jarvis Walker - Freespooler 4000 - Spool Shaft Bearing 8-16-5mm
Penn - 330 GTI - Main Pinion Bearing 8-16-5mm
Penn - 4400-SS - Main Gear Bearing 8-16-5mm
Penn - 4400-SS - Rotor Bearing 8-16-5mm
Shakespeare - 0.040 inch Line Game Reel - Handle Bearing 8-16-5mm
Shakespeare - 0.040 inch Line Game Reel - Spool Bearing 8-16-5mm
Shina - 5X800 - Bearing 8-16-5mm
Tica - Arief / GR4000H / GR4500H / GR4000HBH - Spool Bearing 8-16-5mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
