S688A-ZZ-MC3

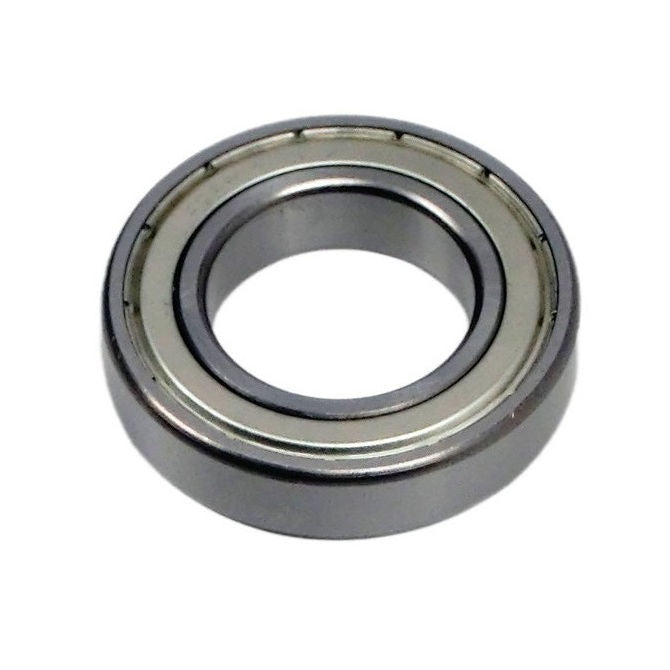

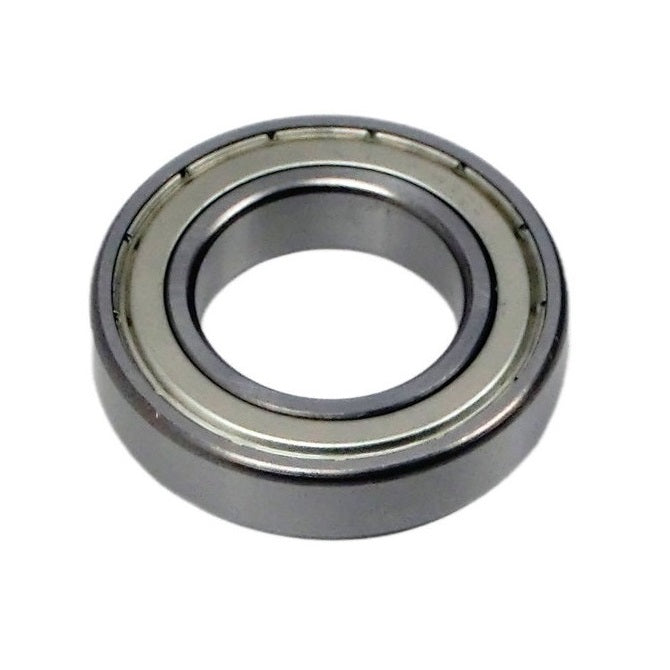

Single Row Ball Bearings - 8x16x5 mm Unflanged - Stainless Steel AISI 440C Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 8x16x5 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$4.77 AUD
$4.77 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 186 available now
Order 50 or more for $4.29 AUD
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Nov 10, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Product Details

ID (d): 8.000mm
+ 0.000 / - 0.0075
(8.000mm is 0.315 in.)

Stainless Steel AISI 440C
  • ID (d): 8.000mm
    + 0.000 / - 0.0075
    (8.000mm is 0.315 in.)
  • OD (D): 16.000mm
    + 0.000 / - 0.0075
    (16.000mm is 0.63 in.)
  • Width (B): 5.000mm
    + 0.000 / - 0.125
    (5.000mm is 0.197 in.)
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Stainless 688AZZMC3
  • Stainless 688A-ZZ-MC3
  • ALTPART
  • 7804K117
  • SHIMANO BNT0583
  • SHIMANO RD11319
  • SHIMANO RD8128
  • GRW S688-003-2Z
  • GRW SS688-003-2Z
  • SHIMANO TGT0090
  • SHIMANO TGT0483
  • SHIMANO TGT1234
  • SHIMANO TT0378
  • ADR WX8-ZZ
  • ULZT816X
  • SS-L1680-ZZ
  • SSL1680-ZZ
  • SSL1680ZZ
  • S688AZZMC3
  • S688A-ZZMC3
  • S688-ZZ
  • S6880032Z
  • S688ZZ
  • SS688A-ZZMC3
  • SS688-ZZ
  • SS688ZZ
  • SS6880032Z
  • SS688AZZMC3
  • WX8ZZ
  • 688H-ZZ
  • 688A-Z-MC3
  • 688AZMC3
  • 688HZZ
  • DDL1680ZZ
  • DDL1680KK
  • DD-L1680-KK
  • DD-L1680KK
  • DD-L1680HH
  • DD-L1680-HH
  • DD-L1680-ZZ
  • DDL1680-ZZ
  • DDL1680HH
  • 688ABASIC

Used for

  • Fishing Reel Parts
  • RC Helicopter Parts
  • Silstar - BF15 - Spool Shaft Bearing
  • Bergen Machine - Intrepid 60 - Bearing 8-16-5mm
  • Bergen Machine - Intrepid Gas - Bearing
  • Gaui - Hurricane 550 - 550 Bearing 8-16-5mm
  • Hirobo - Lepton EX - Bearing
  • Hirobo - Sceadu 30 Evolution - Bearing
  • Hirobo - Sceadu 50 Evolution - Bearing
  • JR - Vigor CS - Bearing
  • Kyosho - CALIBER 30 - Bearing
  • Kyosho - CONCEPT 30 SR-T - Bearing
  • Kyosho - CONCEPT 60 SR - Bearing
  • Kyosho - NEXUS 30 - Bearing
  • Mikado - Logo 14 - Bearing
  • Mikado - Logo 14 Carbon - Bearing
  • Mikado - Logo 20 - Bearing
  • Synergy - N9 - Bearing
  • Thunder Tiger - Raptor 30 - 30
  • Thunder Tiger - Raptor 50 SE - 50
  • Thunder Tiger - Raptor 50 SE Complete Kit - 50
  • Thunder Tiger - Raptor 50 Titan - Bearing
  • Thunder Tiger - Raptor 50 V2 - Double Shielded Bearing 8-16-5mm
  • Thunder Tiger - Raptor 60 V2 - Bearing 8-16-5mm
  • Thunder Tiger - Raptor 90 SE - Bearing 8-16-5mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
