688-MC3-AF12 (Each)

Name: Single Row Ball Bearings - 8x16x4 mm Unflanged - Chrome Steel SAE 52100 Bearing - 688-MC3-AF12
Brand: MBA
SKU: 688MC3AF12
Price: 3.14 AUD
Availability: InStock

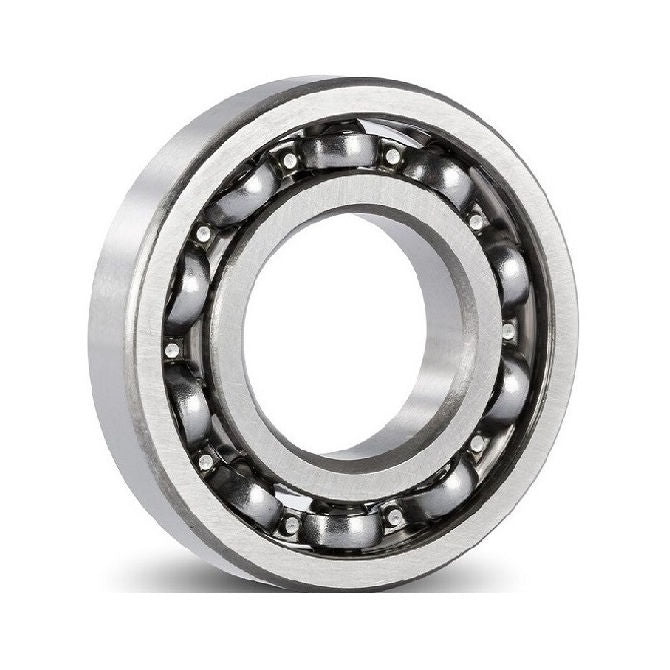

Single Row Ball Bearings - 8x16x4 mm Unflanged - Chrome Steel SAE 52100 Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$3.14 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 52 available now

Order 50 or more
for $2.83 AUD Each

Product Details

Open standard bearing with low-torque light oil lubricant

ID (d): 8.000mm
_{+ 0.000 / - 0.0075}
_{(8.000mm is 0.315 in.)}

Chrome Steel SAE 52100

ID (d): 8.000mm
_{+ 0.000 / - 0.0075}
_{(8.000mm is 0.315 in.)}
O.D. (D): 16.000mm
_{+ 0.000 / - 0.0075}
_{(16.000mm is 0.63 in.)}
Width (B): 4.000mm
_{+ 0.000 / - 0.125}
_{(4.000mm is 0.157 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

SKF 618-8
WIB 618-8
GRW 688
NTN® 688
NTN® 688A
FAG® MR8016
RMB® UL816
NTN® W688
ADR X8
L1680
6188
688AF2
688-AF2
688BASIC

Used for

RC Helicopter Parts

RC Nitro Engine Parts

Kalt® - EnForcer ZR - 31002 Assy Bearing 8-16-4mm

Kalt® - EnForcer ZR - 31008 Assy Bearing 8-16-4mm

Kalt® - EnForcer ZX - Bearing

Cyclone® - 61 All Models - Bearing

Enya® - 09 IV - Replacement Rear Bearing

Enya® - 2C - Cam Shaft Bearing

Enya® - 46 - 4 Stroke New - Camshaft Bearing

Enya® - 46 - 4 Stroke Old - Camshaft Bearing

Enya® - 4C - 35 - Cam Shaft Bearing

Enya® - 4C Cam Shaft - 90 - Cam Shaft Bearing

Enya® - 4CII - 40 - Cam Shaft Bearing

Enya® - 53 - 4 Stroke - Camshaft Bearing

Enya® - 53 4C - 50 - Cam Shaft Bearing

Moki® - C - 120 - Bearing

Norvel® - 15 All Models - Bearing

Russian® - KC - 46 - Bearing
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
