BF0080-0100-0055-DP4 (PK-10)

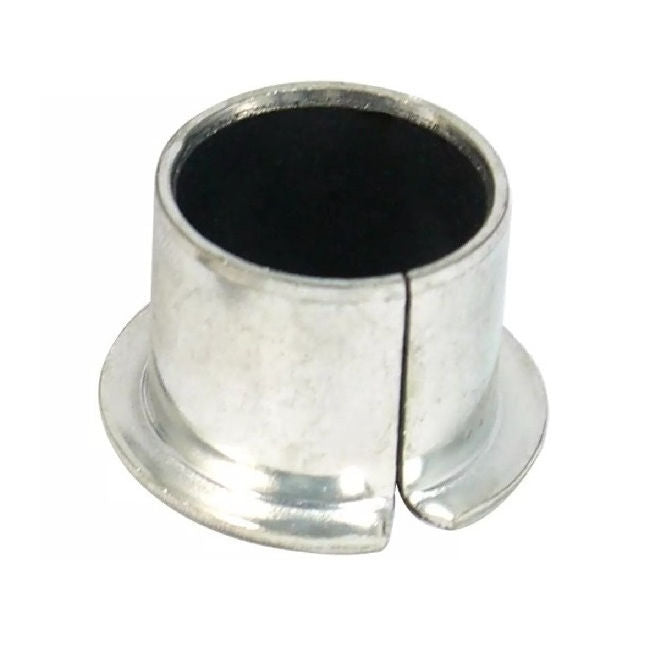

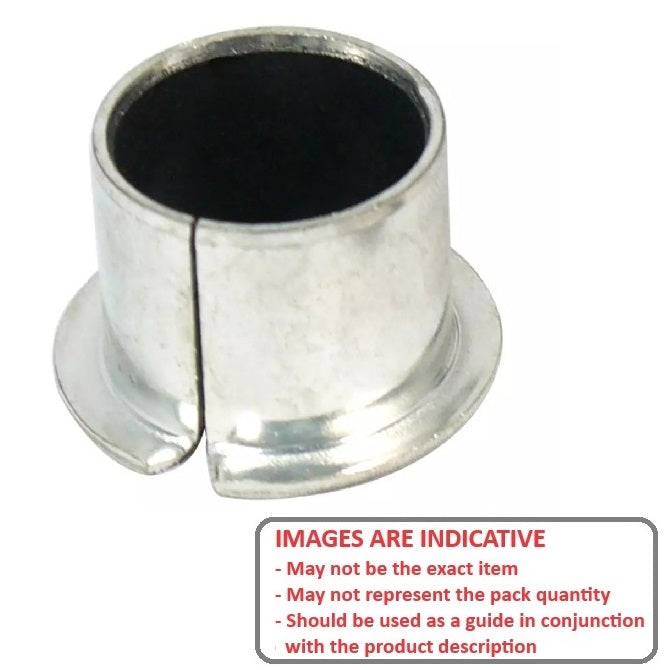

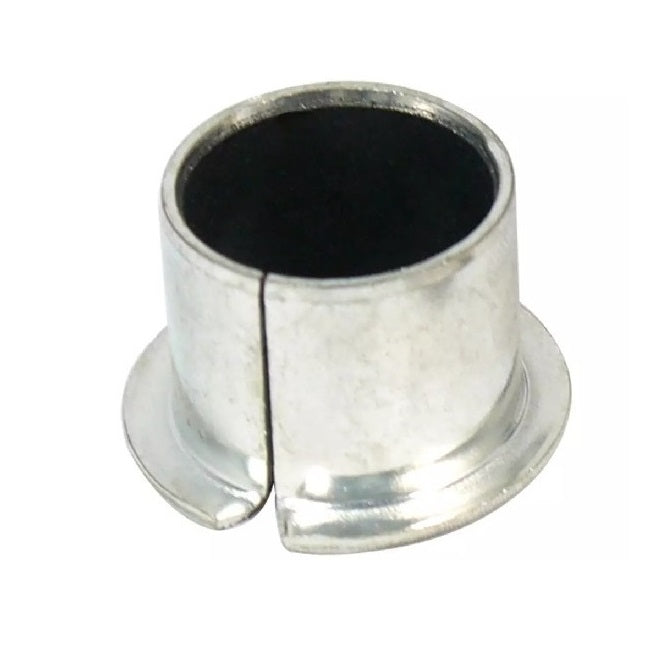

Flanged Bushes - 8x10x5.5 mm Split - DP4 Bush
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleBushes PDF Catalogue
Order 50 or more packs of 10 (500 pcs)
for $7.20 AUD per 10 pack
Couldn't load pickup availability
8x10x5.5 mm Flanged Bushes - DP4 - Sold per pack of 10:
Base Category: Bushes - Flanged
Top Level Category: Bushes - Flanged - Split - Steel - DP4
Product Details
Deleted Item. Available while stocks last.

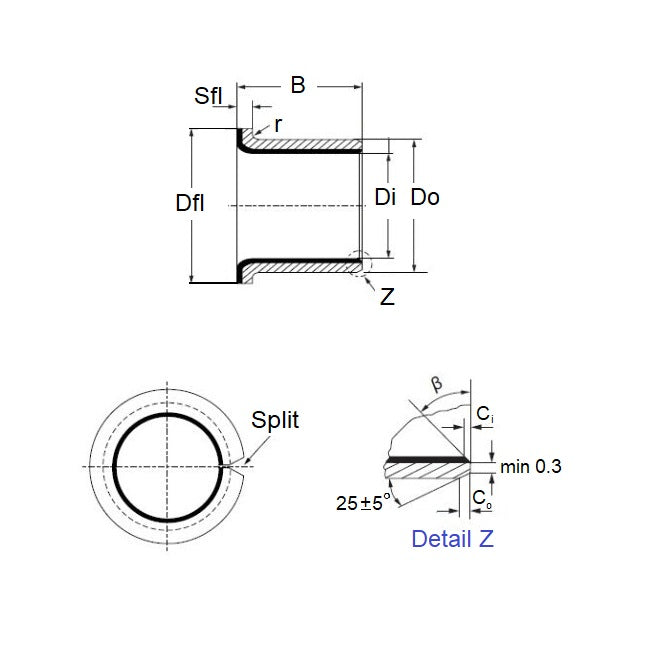

Nominal Inside Diameter (d): 8.000mm
- 0.000 / - 0.028
(8.000mm is 0.315 in.)
DP4
- Nominal Inside Diameter (d): 8.000mm
- 0.000 / - 0.028
(8.000mm is 0.315 in.)
- Nominal Outside Diameter (D): 10.000mm
+ 0.015 / - 0.000
(10.000mm is 0.394 in.)
- Length (s): 5.500mm
+ 0.25 / - 0.25
(5.500mm is 0.217 in.)
- Flange OD (D1): 15.00mm
- Flange Thickness (S1): 1.00mm
Brand: MBA
Country of Origin: TW
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- Glacier® SF-0805.5F-1D
- SF08055F1D
- DP40806BB
- DP4-0806-BB
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BF008001000055DP4, BF008001000055
