Bushes - Flanged - Split - Steel - DP4

Bushes -> Flanged -> Split -> Steel -> DP4

There is only 1 product in the sub-categories of Bushes - Flanged - Split - Steel - DP4. Browse the Bushes - Flanged - Split - Steel - DP4 products table.

Category Details

A selection of DP4 Steel Split Flanged Bushes. Wear resistant helping to prevent wear deposits in the lubricating oil after long working periods. Designed for use in oil pumps and dampers.

  • An expanded range may be available on special order. Please enquire.
  • Operating Temperature -200o to 280o Celsius. Maximum load 250N/mm2.
  • Low static and dynamic friction coefficient, Suitable for sliding, oscillating, reiprocating and rotating applications.
  • High reistance to be cavitation and flow erosion damage of the polymer bearing surface by the lubricant, Excellent wear resistant.
  • Also suitable for use with non-lubricating fluids and in light duty unlubricated applications, Lead free.
  • Speed Limit in oil 3 metres surface speed per second.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bushes - Flanged - Split - Steel - DP4 category on the Small Parts & Bearings online store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Flange OD (D1) Flange Thickness (S1) Indicative
Nominal Inside Diameter (d)
8.000
mm
- 0.000 / - 0.028
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
10.000
mm
+ 0.015 / - 0.000
(Equiv. 0.394 in.)
Length (s)
5.500
mm
+ 0.25 / - 0.25
(Equiv. 0.217 in.)
Flange OD (D1)
15.00
mm
Flange Thickness (S1)
1.00
mm
Flanged Bushes - 8x10x5.5 mm - DP4
Material: DP4
Part Number: BF0080-0100-0055-DP4 (10 Pcs)

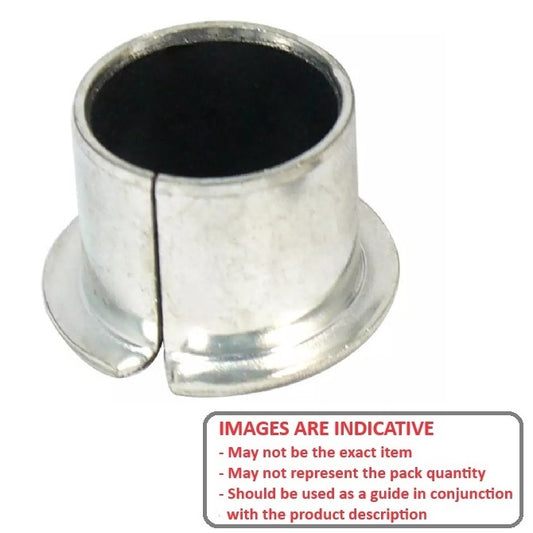

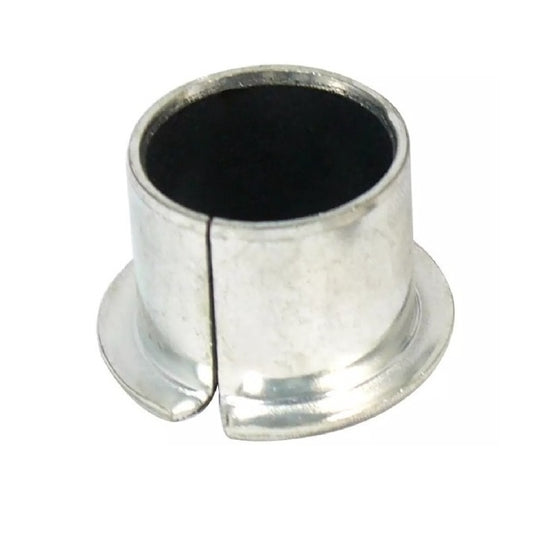

Flanged Bushes - 8x10x5.5 mm Split - DP4 Bush
478 units (4780 pcs) Available Now | Item Discontinued - Up to 478 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

478 units (4780 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Length (s) Flange OD (D1) Indicative
Nominal Inside Diameter (d)
8.000
mm
- 0.000 / - 0.028
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
10.000
mm
+ 0.015 / - 0.000
(Equiv. 0.394 in.)
Length (s)
5.500
mm
+ 0.25 / - 0.25
(Equiv. 0.217 in.)
Flange OD (D1)
15.00
mm
Flanged Bushes - 8x10x5.5 mm - DP4
Material: DP4    Flange Thickness (S1): 1.00 mm
Part Number: BF0080-0100-0055-DP4 (10 Pcs)
Flanged Bushes - 8x10x5.5 mm Split - DP4 Bush
478 units (4780 pcs) Available Now | Item Discontinued - Up to 478 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

478 units (4780 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
