CCI-08255-S15 (Each)

Name: Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip - CCI-08255-S15
Brand: MBA
SKU: CCI08255S15
Price: 180.14 AUD
Availability: BackOrder

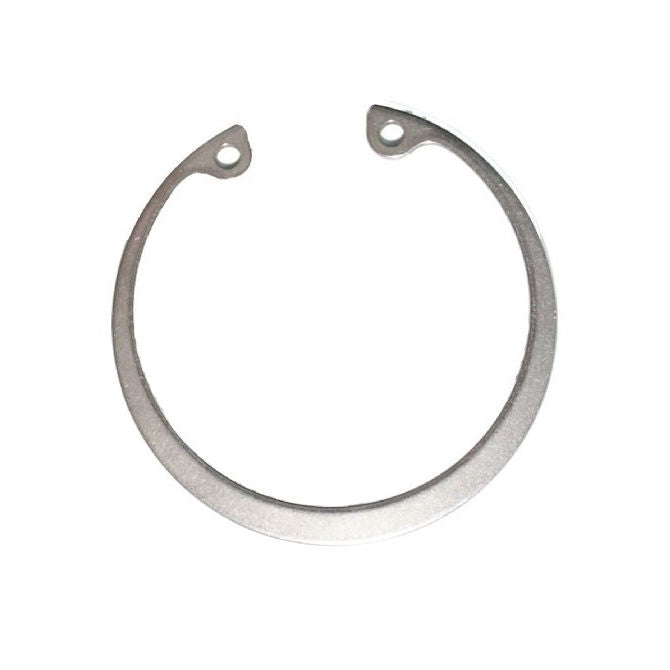

Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$180.14 AUD

~~$421.53 AUD~~ $180.14 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more
for $162.13 AUD Each

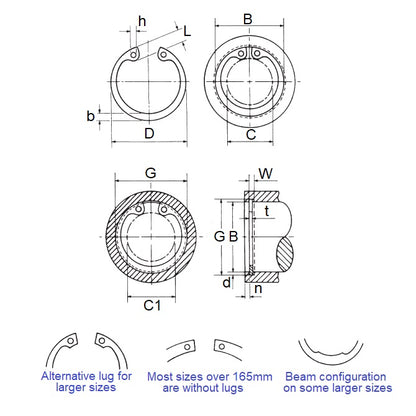

Product Details

Housing Bore (B): 82.55mm
_{(82.55mm is 3.25 in.)}

Stainless Steel Grade PH15-7 Mo

Housing Bore (B): 82.55mm
_{(82.55mm is 3.25 in.)}
Clip Thickness (T): 2.77mm
_{+ 0.00 / - 0.08}
_{(2.77mm is 0.109 in.)}
Groove Dia. (Dg): 87.53mm
_{+/- 0.152}
_{(87.53mm is 3.446 in.)}
Approx. Loose Circlip OD (Dr): 92.02mm
_{+ 1.40 / - 1.40}
Groove Width (W): 3.05mm
_{+ 0.13 / - 0.00}
Clearance in Bore (C): 67.31mm
Clearance in Groove (C1): 72.14mm
Min. Lug Diameter (h): 3.12mm
Min. Extension (n): 7.47

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
91580A287
NoCor® HO-325-SS
HO325SS
N1300-0325BDS
N13000325BDS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
