CCI-08000-C (PK-5)

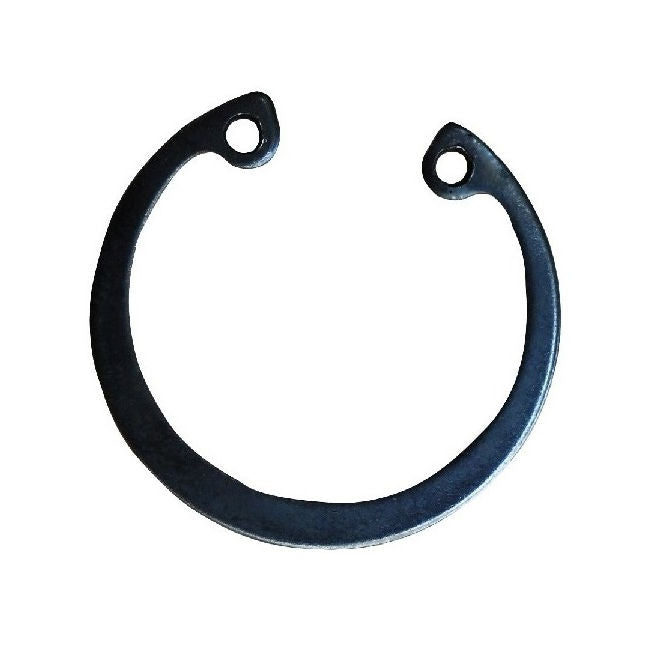

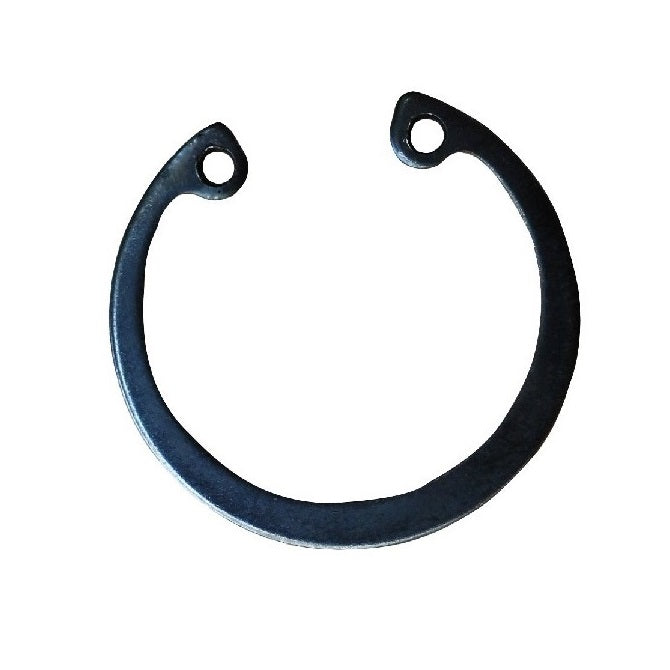

3x3 inch Circlip - 80x2.5x83.5 mm Internal Retaining Rings - Carbon Steel - Sold per pack of 5:

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Product Details

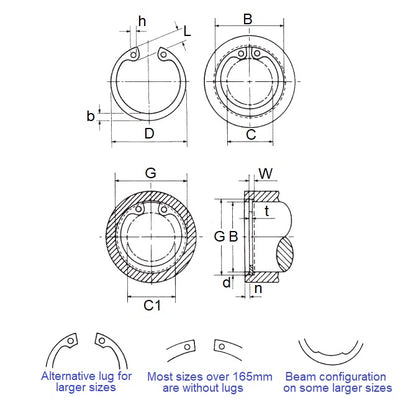

• Housing Bore (B): 80.00mm
  _{(80.00mm is 3.15 in.)}

• Clip Thickness (T): 2.50mm
  _{+ 0.00 / - 0.08
  (2.50mm is 0.098 in.)}

• Groove Dia. (Dg): 83.50mm
  _{+ 0.35 / - 0.00
  (83.50mm is 3.287 in.)}

• Approx. Loose Circlip OD (Dr): 85.50mm
  _{+ 1.30 / - 0.54}

• Groove Width (W): 2.65mm
  _{+ 0.13 / - 0.00}

• Clearance in Bore (C): 62.10mm
• Clearance in Groove (C1): 66.50mm
• Min. Lug Diameter (h): 3.00mm
• Min. Extension (n): 5.30
• Standard: DIN472

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Ellison® 472-080
• ALTPART
• 98455A151
• Bossard® BN-822-080
• Waldes® D1300-080
• Huyett® DHO-080
• NoCor® DHO-080
• Rotor Clip® DHO-080
• Seeger® J-080
• Seeger® J80
• Seeger® J80-S
• Seeger® J80X2.5
• Seeger® NZT.J80
• BN822080
• J080
• J80S
• D1300080
• D1300-0800APP
• D13000800APP
• DHO080
• 472080
