CCI-08000-C - Datasheet
MBA
Category Information

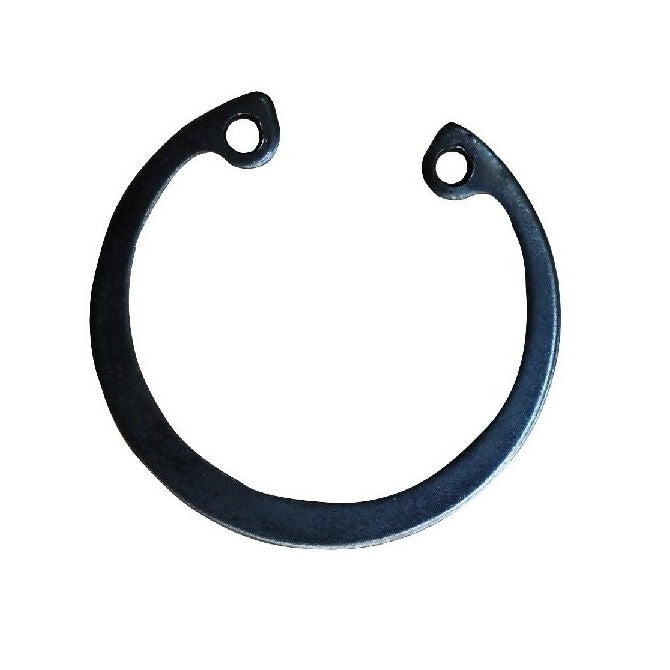

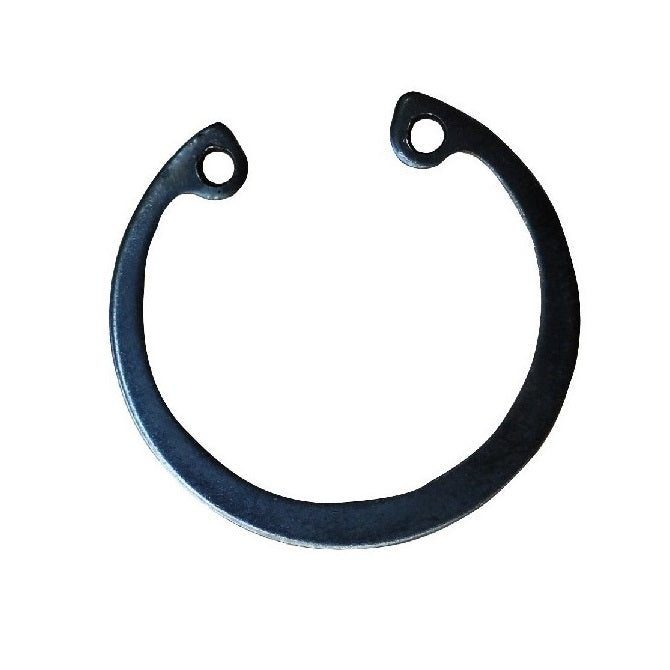

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
80.00
mm
(Equiv. 3.15 in.) - Clip Thickness (T)
2.50
mm
+ 0.35 / - 0.00
(Equiv. 0.098 in.) - Groove Dia. (Dg)
83.50
mm
+ 0.00 / - 0.08
(Equiv. 3.287 in.) - Approx. Loose Circlip OD (Dr) 85.50 mm + 1.30 / - 0.54
- Groove Width (W) 2.65 mm + 0.13 / - 0.00
- Clearance in Bore (C) 62.10 mm
- Clearance in Groove (C1) 66.50 mm
- Min. Lug Diameter (h) 3.00 mm
- Min. Extension (n) 5.30
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-080
- 98455A151
- Bossard BN-822-080
- Waldes D1300-080
- NoCor DHO-080
- Rotor Clip DHO-080
- Seeger J-080
- Seeger J80
- Seeger J80-S
- Seeger J80X2.5
- Seeger NZT.J80
- D13000800
- D1300-0800
- D13000800APP
- D1300-0800APP
- J080
- J80S
- DHO080
- 472080
- BN822080
