IN-RIV-042C-028-R (PK-50)
Rivet Nuts Inserts - 8-32 UNC - 4.17mm - 6.75 - 0.50 - 2.83 Klik
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleAssortment Kits
Order 50 or more packs of 50 (2500 pcs)
for $24.67 AUD per 50 pack
8-32 UNC (4.17mm) 6.75 - 0.50 - 2.83 Rivet Nuts Inserts - - Sold per pack of 50:
Base Category: Inserts - Rivet Nuts
Top Level Category: Inserts - Rivet Nuts - Klik - Ribbed
Product Details
Internal Thread: 8-32 UNC (4.17mm)- Internal Thread: 8-32 UNC (4.17mm)
- Drill Hole Size: 6.75mm
(6.75mm is 0.266 in.)
- Grip Range: 0.50 - 2.83mm
(0.50 - 2.83mm is 0.02 in.)

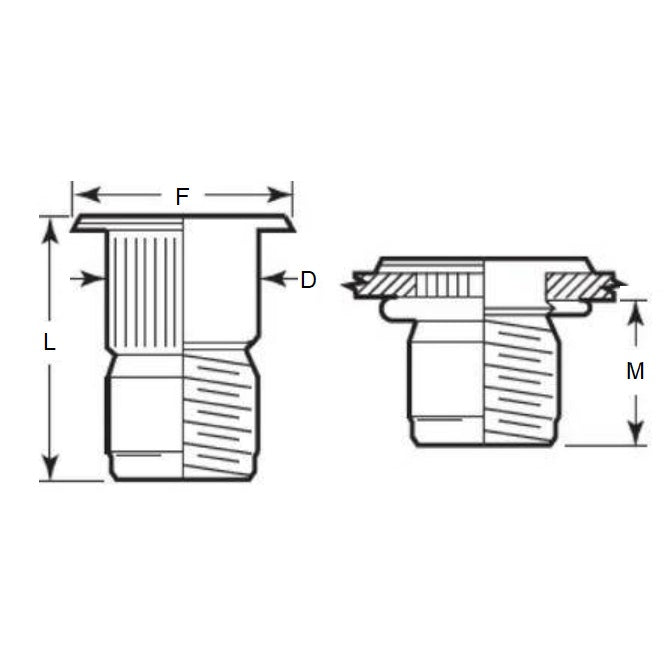

- Body Diameter (D): 6.73mm
- Flange Diameter (F): 9.52mm
- L: 10.998mm
- M: 6.985mm
- 0.50 - 2.83
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 95105A119
- Reid Tool® ALC-47320
- ALC47320
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
INRIV042C028R, INRIV042C
