Inserts - Rivet Nuts - Klik - Ribbed

Inserts -> Rivet Nuts -> Klik -> Ribbed

There are 20 products in the sub-categories of Inserts - Rivet Nuts - Klik - Ribbed. Scroll down or follow the link to Inserts - Rivet Nuts - Klik - Ribbed in the products table to see all these items combined into a handy table with filters.

Category Details

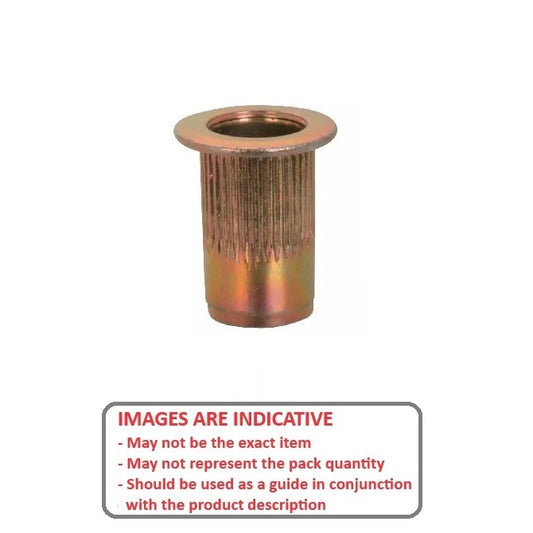

A selection of Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Inserts - Rivet Nuts - Klik - Ribbed category on the Small Parts & Bearings online store.
Internal Thread Drill Hole Size Grip Range Body Diameter (D) Flange Diameter (F) L Indicative
Internal Thread
6-32 UNC (3.5mm)

Drill Hole Size
6.75
mm

(Equiv. 0.266 in.)
Grip Range
0.50 - 2.83
mm

(Equiv. 0.02 in.)
Body Diameter (D)
6.73
mm
Flange Diameter (F)
9.52
mm
L
10.998
mm
Rivet Nuts Inserts - 6-32 UNC -3.5mm- 6.75 - 0.50 - 2.83
M: 6.985 mm
Part Number: IN-RIV-035C-028-R (10 Pcs)
Rivet Nuts Inserts - 6-32 UNC - 3.5mm - 6.75 - 0.50 - 2.83 Klik
1 pack (10 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$4.59 AUD
$5.51 AUD $4.59 AUD
Per 10
Quantity Required

1 pack (10 pcs) Available Now. Backorder if more than 1.
Internal Thread Drill Hole Size Grip Range Body Diameter (D) Indicative
Internal Thread
6-32 UNC (3.5mm)

Drill Hole Size
6.75
mm

(Equiv. 0.266 in.)
Grip Range
0.50 - 2.83
mm

(Equiv. 0.02 in.)
Body Diameter (D)
6.73
mm
Rivet Nuts Inserts - 6-32 UNC -3.5mm- 6.75 - 0.50 - 2.83
Flange Diameter (F): 9.52 mm    L: 10.998 mm    M: 6.985 mm
Part Number: IN-RIV-035C-028-R (10 Pcs)
Rivet Nuts Inserts - 6-32 UNC - 3.5mm - 6.75 - 0.50 - 2.83 Klik
1 pack (10 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$4.59 AUD
$5.51 AUD $4.59 AUD
Per 10
Quantity Required

1 pack (10 pcs) Available Now. Backorder if more than 1.
Internal Thread
6-32 UNC (3.5mm)

Drill Hole Size
6.75
mm

(Equiv. 0.266 in.)
Grip Range
2.03 - 3.32
mm

(Equiv. 0.08 in.)
Body Diameter (D)
6.73
mm
Flange Diameter (F)
9.52
mm
L
12.294
mm
Rivet Nuts Inserts - 6-32 UNC -3.5mm- 6.75 - 2.03 - 3.32
M: 6.985 mm
Part Number: IN-RIV-035C-033-R (10 Pcs)
Rivet Nuts Inserts - 6-32 UNC - 3.5mm - 6.75 - 2.03 - 3.32 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$5.23 AUD
$6.27 AUD $5.23 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Internal Thread
6-32 UNC (3.5mm)

Drill Hole Size
6.75
mm

(Equiv. 0.266 in.)
Grip Range
2.03 - 3.32
mm

(Equiv. 0.08 in.)
Body Diameter (D)
6.73
mm
Rivet Nuts Inserts - 6-32 UNC -3.5mm- 6.75 - 2.03 - 3.32
Flange Diameter (F): 9.52 mm    L: 12.294 mm    M: 6.985 mm
Part Number: IN-RIV-035C-033-R (10 Pcs)
Rivet Nuts Inserts - 6-32 UNC - 3.5mm - 6.75 - 2.03 - 3.32 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$5.23 AUD
$6.27 AUD $5.23 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Internal Thread
M4 (4x0.7mm)

Drill Hole Size
6.8
mm

(Equiv. 0.268 in.)
Grip Range
0.50 - 2.00
mm

(Equiv. 0.02 in.)
Body Diameter (D)
6.75
mm
Flange Diameter (F)
9.5
mm
L
10.900
mm
Rivet Nuts Inserts - M4 -4x0.7mm- 6.8 - 0.50 - 2.00
M: 7.000 mm
Part Number: IN-RIV-040M-020-R (50 Pcs)
Rivet Nuts Inserts - M4 - 4x0.7mm - 6.8 - 0.50 - 2.00 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$30.95 AUD
$30.95 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
M4 (4x0.7mm)

Drill Hole Size
6.8
mm

(Equiv. 0.268 in.)
Grip Range
0.50 - 2.00
mm

(Equiv. 0.02 in.)
Body Diameter (D)
6.75
mm
Rivet Nuts Inserts - M4 -4x0.7mm- 6.8 - 0.50 - 2.00
Flange Diameter (F): 9.5 mm    L: 10.900 mm    M: 7.000 mm
Part Number: IN-RIV-040M-020-R (50 Pcs)
Rivet Nuts Inserts - M4 - 4x0.7mm - 6.8 - 0.50 - 2.00 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$30.95 AUD
$30.95 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Drill Hole Size
6.75
mm

(Equiv. 0.266 in.)
Grip Range
0.50 - 2.83
mm

(Equiv. 0.02 in.)
Body Diameter (D)
6.73
mm
Flange Diameter (F)
9.52
mm
L
10.998
mm
Rivet Nuts Inserts - 8-32 UNC -4.17mm- 6.75 - 0.50 - 2.83
M: 6.985 mm
Part Number: IN-RIV-042C-028-R (50 Pcs)
Rivet Nuts Inserts - 8-32 UNC - 4.17mm - 6.75 - 0.50 - 2.83 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$27.41 AUD
$32.89 AUD $27.41 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Drill Hole Size
6.75
mm

(Equiv. 0.266 in.)
Grip Range
0.50 - 2.83
mm

(Equiv. 0.02 in.)
Body Diameter (D)
6.73
mm
Rivet Nuts Inserts - 8-32 UNC -4.17mm- 6.75 - 0.50 - 2.83
Flange Diameter (F): 9.52 mm    L: 10.998 mm    M: 6.985 mm
Part Number: IN-RIV-042C-028-R (50 Pcs)
Rivet Nuts Inserts - 8-32 UNC - 4.17mm - 6.75 - 0.50 - 2.83 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$27.41 AUD
$32.89 AUD $27.41 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Drill Hole Size
6.75
mm

(Equiv. 0.266 in.)
Grip Range
2.03 - 3.32
mm

(Equiv. 0.08 in.)
Body Diameter (D)
6.73
mm
Flange Diameter (F)
9.52
mm
L
12.294
mm
Rivet Nuts Inserts - 8-32 UNC -4.17mm- 6.75 - 2.03 - 3.32
M: 6.985 mm
Part Number: IN-RIV-042C-033-R (50 Pcs)
Rivet Nuts Inserts - 8-32 UNC - 4.17mm - 6.75 - 2.03 - 3.32 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$33.41 AUD
$40.09 AUD $33.41 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
8-32 UNC (4.17mm)

Drill Hole Size
6.75
mm

(Equiv. 0.266 in.)
Grip Range
2.03 - 3.32
mm

(Equiv. 0.08 in.)
Body Diameter (D)
6.73
mm
Rivet Nuts Inserts - 8-32 UNC -4.17mm- 6.75 - 2.03 - 3.32
Flange Diameter (F): 9.52 mm    L: 12.294 mm    M: 6.985 mm
Part Number: IN-RIV-042C-033-R (50 Pcs)
Rivet Nuts Inserts - 8-32 UNC - 4.17mm - 6.75 - 2.03 - 3.32 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$33.41 AUD
$40.09 AUD $33.41 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-24 UNC (4.76mm)

Drill Hole Size
7.54
mm

(Equiv. 0.297 in.)
Grip Range
0.50 - 3.38
mm

(Equiv. 0.02 in.)
Body Diameter (D)
7.52
mm
Flange Diameter (F)
10.16
mm
L
12.395
mm
Rivet Nuts Inserts - 10-24 UNC -4.76mm- 7.54 - 0.50 - 3.38
M: 7.620 mm
Part Number: IN-RIV-048C-034-R (10 Pcs)
Rivet Nuts Inserts - 10-24 UNC - 4.76mm - 7.54 - 0.50 - 3.38 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$4.95 AUD
$5.95 AUD $4.95 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-24 UNC (4.76mm)

Drill Hole Size
7.54
mm

(Equiv. 0.297 in.)
Grip Range
0.50 - 3.38
mm

(Equiv. 0.02 in.)
Body Diameter (D)
7.52
mm
Rivet Nuts Inserts - 10-24 UNC -4.76mm- 7.54 - 0.50 - 3.38
Flange Diameter (F): 10.16 mm    L: 12.395 mm    M: 7.620 mm
Part Number: IN-RIV-048C-034-R (10 Pcs)
Rivet Nuts Inserts - 10-24 UNC - 4.76mm - 7.54 - 0.50 - 3.38 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$4.95 AUD
$5.95 AUD $4.95 AUD
Per 10
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-24 UNC (4.76mm)

Drill Hole Size
7.54
mm

(Equiv. 0.297 in.)
Grip Range
3.30 - 5.72
mm

(Equiv. 0.13 in.)
Body Diameter (D)
7.52
mm
Flange Diameter (F)
10.16
mm
L
15.088
mm
Rivet Nuts Inserts - 10-24 UNC -4.76mm- 7.54 - 3.30 - 5.72
M: 7.620 mm
Part Number: IN-RIV-048C-057-R (50 Pcs)
Rivet Nuts Inserts - 10-24 UNC - 4.76mm - 7.54 - 3.30 - 5.72 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$37.32 AUD
$37.32 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-24 UNC (4.76mm)

Drill Hole Size
7.54
mm

(Equiv. 0.297 in.)
Grip Range
3.30 - 5.72
mm

(Equiv. 0.13 in.)
Body Diameter (D)
7.52
mm
Rivet Nuts Inserts - 10-24 UNC -4.76mm- 7.54 - 3.30 - 5.72
Flange Diameter (F): 10.16 mm    L: 15.088 mm    M: 7.620 mm
Part Number: IN-RIV-048C-057-R (50 Pcs)
Rivet Nuts Inserts - 10-24 UNC - 4.76mm - 7.54 - 3.30 - 5.72 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$37.32 AUD
$37.32 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Drill Hole Size
7.54
mm

(Equiv. 0.297 in.)
Grip Range
0.50 - 3.38
mm

(Equiv. 0.02 in.)
Body Diameter (D)
7.52
mm
Flange Diameter (F)
10.16
mm
L
12.395
mm
Rivet Nuts Inserts - 10-32 UNF -4.76mm- 7.54 - 0.50 - 3.38
M: 7.620 mm
Part Number: IN-RIV-048F-034-R (50 Pcs)
Rivet Nuts Inserts - 10-32 UNF - 4.76mm - 7.54 - 0.50 - 3.38 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$35.41 AUD
$35.41 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Drill Hole Size
7.54
mm

(Equiv. 0.297 in.)
Grip Range
0.50 - 3.38
mm

(Equiv. 0.02 in.)
Body Diameter (D)
7.52
mm
Rivet Nuts Inserts - 10-32 UNF -4.76mm- 7.54 - 0.50 - 3.38
Flange Diameter (F): 10.16 mm    L: 12.395 mm    M: 7.620 mm
Part Number: IN-RIV-048F-034-R (50 Pcs)
Rivet Nuts Inserts - 10-32 UNF - 4.76mm - 7.54 - 0.50 - 3.38 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$35.41 AUD
$35.41 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Drill Hole Size
7.54
mm

(Equiv. 0.297 in.)
Grip Range
3.30 - 5.72
mm

(Equiv. 0.13 in.)
Body Diameter (D)
7.52
mm
Flange Diameter (F)
10.16
mm
L
15.088
mm
Rivet Nuts Inserts - 10-32 UNF -4.76mm- 7.54 - 3.30 - 5.72
M: 7.620 mm
Part Number: IN-RIV-048F-057-R (50 Pcs)
Rivet Nuts Inserts - 10-32 UNF - 4.76mm - 7.54 - 3.30 - 5.72 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$37.59 AUD
$45.11 AUD $37.59 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
10-32 UNF (4.76mm)

Drill Hole Size
7.54
mm

(Equiv. 0.297 in.)
Grip Range
3.30 - 5.72
mm

(Equiv. 0.13 in.)
Body Diameter (D)
7.52
mm
Rivet Nuts Inserts - 10-32 UNF -4.76mm- 7.54 - 3.30 - 5.72
Flange Diameter (F): 10.16 mm    L: 15.088 mm    M: 7.620 mm
Part Number: IN-RIV-048F-057-R (50 Pcs)
Rivet Nuts Inserts - 10-32 UNF - 4.76mm - 7.54 - 3.30 - 5.72 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$37.59 AUD
$45.11 AUD $37.59 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
M5 (5x0.8mm)

Drill Hole Size
7.6
mm

(Equiv. 0.299 in.)
Grip Range
0.50 - 3.30
mm

(Equiv. 0.02 in.)
Body Diameter (D)
7.55
mm
Flange Diameter (F)
10.1
mm
L
12.300
mm
Rivet Nuts Inserts - M5 -5x0.8mm- 7.6 - 0.50 - 3.30
M: 7.600 mm
Part Number: IN-RIV-050M-033-R (5 Pcs)
Rivet Nuts Inserts - M5 - 5x0.8mm - 7.6 - 0.50 - 3.30 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$3.23 AUD
$3.87 AUD $3.23 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
M5 (5x0.8mm)

Drill Hole Size
7.6
mm

(Equiv. 0.299 in.)
Grip Range
0.50 - 3.30
mm

(Equiv. 0.02 in.)
Body Diameter (D)
7.55
mm
Rivet Nuts Inserts - M5 -5x0.8mm- 7.6 - 0.50 - 3.30
Flange Diameter (F): 10.1 mm    L: 12.300 mm    M: 7.600 mm
Part Number: IN-RIV-050M-033-R (5 Pcs)
Rivet Nuts Inserts - M5 - 5x0.8mm - 7.6 - 0.50 - 3.30 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$3.23 AUD
$3.87 AUD $3.23 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
M5 (5x0.8mm)

Drill Hole Size
7.6
mm

(Equiv. 0.299 in.)
Grip Range
3.30 - 5.70
mm

(Equiv. 0.13 in.)
Body Diameter (D)
7.55
mm
Flange Diameter (F)
10.1
mm
L
15.000
mm
Rivet Nuts Inserts - M5 -5x0.8mm- 7.6 - 3.30 - 5.70
M: 7.600 mm
Part Number: IN-RIV-050M-057-R (50 Pcs)
Rivet Nuts Inserts - M5 - 5x0.8mm - 7.6 - 3.30 - 5.70 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$40.59 AUD
$48.71 AUD $40.59 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
M5 (5x0.8mm)

Drill Hole Size
7.6
mm

(Equiv. 0.299 in.)
Grip Range
3.30 - 5.70
mm

(Equiv. 0.13 in.)
Body Diameter (D)
7.55
mm
Rivet Nuts Inserts - M5 -5x0.8mm- 7.6 - 3.30 - 5.70
Flange Diameter (F): 10.1 mm    L: 15.000 mm    M: 7.600 mm
Part Number: IN-RIV-050M-057-R (50 Pcs)
Rivet Nuts Inserts - M5 - 5x0.8mm - 7.6 - 3.30 - 5.70 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$40.59 AUD
$48.71 AUD $40.59 AUD
Per 50
Quantity Required

Backorder: Out of Stock.
Internal Thread
M6 (6x1mm)

Drill Hole Size
10
mm

(Equiv. 0.394 in.)
Grip Range
0.70 - 4.20
mm

(Equiv. 0.028 in.)
Body Diameter (D)
9.9
mm
Flange Diameter (F)
12.7
mm
L
14.900
mm
Rivet Nuts Inserts - M6 -6x1mm- 10 - 0.70 - 4.20
M: 9.000 mm
Part Number: IN-RIV-060M-042-R (5 Pcs)
Rivet Nuts Inserts - M6 - 6x1mm - 10 - 0.70 - 4.20 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$7.23 AUD
$8.67 AUD $7.23 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
M6 (6x1mm)

Drill Hole Size
10
mm

(Equiv. 0.394 in.)
Grip Range
0.70 - 4.20
mm

(Equiv. 0.028 in.)
Body Diameter (D)
9.9
mm
Rivet Nuts Inserts - M6 -6x1mm- 10 - 0.70 - 4.20
Flange Diameter (F): 12.7 mm    L: 14.900 mm    M: 9.000 mm
Part Number: IN-RIV-060M-042-R (5 Pcs)
Rivet Nuts Inserts - M6 - 6x1mm - 10 - 0.70 - 4.20 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$7.23 AUD
$8.67 AUD $7.23 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
1/4-20 UNC (6.35mm)

Drill Hole Size
9.92
mm

(Equiv. 0.391 in.)
Grip Range
0.69 - 4.19
mm

(Equiv. 0.027 in.)
Body Diameter (D)
9.91
mm
Flange Diameter (F)
12.7
mm
L
14.986
mm
Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 9.92 - 0.69 - 4.19
M: 9.017 mm
Part Number: IN-RIV-064C-042-R (5 Pcs)
Rivet Nuts Inserts - 1/4-20 UNC - 6.35mm - 9.92 - 0.69 - 4.19 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$6.41 AUD
$6.41 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
1/4-20 UNC (6.35mm)

Drill Hole Size
9.92
mm

(Equiv. 0.391 in.)
Grip Range
0.69 - 4.19
mm

(Equiv. 0.027 in.)
Body Diameter (D)
9.91
mm
Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 9.92 - 0.69 - 4.19
Flange Diameter (F): 12.7 mm    L: 14.986 mm    M: 9.017 mm
Part Number: IN-RIV-064C-042-R (5 Pcs)
Rivet Nuts Inserts - 1/4-20 UNC - 6.35mm - 9.92 - 0.69 - 4.19 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$6.41 AUD
$6.41 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
1/4-20 UNC (6.35mm)

Drill Hole Size
9.92
mm

(Equiv. 0.391 in.)
Grip Range
4.19 - 6.61
mm

(Equiv. 0.165 in.)
Body Diameter (D)
9.91
mm
Flange Diameter (F)
12.7
mm
L
17.577
mm
Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 9.92 - 4.19 - 6.61
M: 9.017 mm
Part Number: IN-RIV-064C-066-R (5 Pcs)
Rivet Nuts Inserts - 1/4-20 UNC - 6.35mm - 9.92 - 4.19 - 6.61 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$4.77 AUD
$4.77 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
1/4-20 UNC (6.35mm)

Drill Hole Size
9.92
mm

(Equiv. 0.391 in.)
Grip Range
4.19 - 6.61
mm

(Equiv. 0.165 in.)
Body Diameter (D)
9.91
mm
Rivet Nuts Inserts - 1/4-20 UNC -6.35mm- 9.92 - 4.19 - 6.61
Flange Diameter (F): 12.7 mm    L: 17.577 mm    M: 9.017 mm
Part Number: IN-RIV-064C-066-R (5 Pcs)
Rivet Nuts Inserts - 1/4-20 UNC - 6.35mm - 9.92 - 4.19 - 6.61 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$4.77 AUD
$4.77 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
5/16-18 UNC (7.94mm)

Drill Hole Size
13.49
mm

(Equiv. 0.531 in.)
Grip Range
0.69 - 3.81
mm

(Equiv. 0.027 in.)
Body Diameter (D)
13.46
mm
Flange Diameter (F)
15.24
mm
L
17.526
mm
Rivet Nuts Inserts - 5/16-18 UNC -7.94mm- 13.49 - 0.69 - 3.81
M: 10.922 mm
Part Number: IN-RIV-079C-038-R
Rivet Nuts Inserts - 5/16-18 UNC - 7.94mm - 13.49 - 0.69 - 3.81 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$2.95 AUD
$2.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Internal Thread
5/16-18 UNC (7.94mm)

Drill Hole Size
13.49
mm

(Equiv. 0.531 in.)
Grip Range
0.69 - 3.81
mm

(Equiv. 0.027 in.)
Body Diameter (D)
13.46
mm
Rivet Nuts Inserts - 5/16-18 UNC -7.94mm- 13.49 - 0.69 - 3.81
Flange Diameter (F): 15.24 mm    L: 17.526 mm    M: 10.922 mm
Part Number: IN-RIV-079C-038-R
Rivet Nuts Inserts - 5/16-18 UNC - 7.94mm - 13.49 - 0.69 - 3.81 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$2.95 AUD
$2.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Internal Thread
M8 (8x1.25mm)

Drill Hole Size
13.5
mm

(Equiv. 0.531 in.)
Grip Range
0.70 - 3.80
mm

(Equiv. 0.028 in.)
Body Diameter (D)
13.45
mm
Flange Diameter (F)
17
mm
L
17.500
mm
Rivet Nuts Inserts - M8 -8x1.25mm- 13.5 - 0.70 - 3.80
M: 11.000 mm
Part Number: IN-RIV-080M-038-R (5 Pcs)
Rivet Nuts Inserts - M8 - 8x1.25mm - 13.5 - 0.70 - 3.80 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$6.50 AUD
$7.80 AUD $6.50 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
M8 (8x1.25mm)

Drill Hole Size
13.5
mm

(Equiv. 0.531 in.)
Grip Range
0.70 - 3.80
mm

(Equiv. 0.028 in.)
Body Diameter (D)
13.45
mm
Rivet Nuts Inserts - M8 -8x1.25mm- 13.5 - 0.70 - 3.80
Flange Diameter (F): 17 mm    L: 17.500 mm    M: 11.000 mm
Part Number: IN-RIV-080M-038-R (5 Pcs)
Rivet Nuts Inserts - M8 - 8x1.25mm - 13.5 - 0.70 - 3.80 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$6.50 AUD
$7.80 AUD $6.50 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
M8 (8x1.25mm)

Drill Hole Size
13.5
mm

(Equiv. 0.531 in.)
Grip Range
3.80- 7.90
mm

(Equiv. 0.15 in.)
Body Diameter (D)
13.45
mm
Flange Diameter (F)
17
mm
L
20.400
mm
Rivet Nuts Inserts - M8 -8x1.25mm- 13.5 - 3.80- 7.90
M: 11.000 mm
Part Number: IN-RIV-080M-079-R (25 Pcs)
Rivet Nuts Inserts - M8 - 8x1.25mm - 13.5 - 3.80- 7.90 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$42.95 AUD
$51.55 AUD $42.95 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
Internal Thread
M8 (8x1.25mm)

Drill Hole Size
13.5
mm

(Equiv. 0.531 in.)
Grip Range
3.80- 7.90
mm

(Equiv. 0.15 in.)
Body Diameter (D)
13.45
mm
Rivet Nuts Inserts - M8 -8x1.25mm- 13.5 - 3.80- 7.90
Flange Diameter (F): 17 mm    L: 20.400 mm    M: 11.000 mm
Part Number: IN-RIV-080M-079-R (25 Pcs)
Rivet Nuts Inserts - M8 - 8x1.25mm - 13.5 - 3.80- 7.90 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$42.95 AUD
$51.55 AUD $42.95 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
Internal Thread
3/8-16 UNC (9.53mm)

Drill Hole Size
13.49
mm

(Equiv. 0.531 in.)
Grip Range
0.69 - 3.81
mm

(Equiv. 0.027 in.)
Body Diameter (D)
13.46
mm
Flange Diameter (F)
17.02
mm
L
17.526
mm
Rivet Nuts Inserts - 3/8-16 UNC -9.53mm- 13.49 - 0.69 - 3.81
M: 10.922 mm
Part Number: IN-RIV-095C-038-R (5 Pcs)
Rivet Nuts Inserts - 3/8-16 UNC - 9.53mm - 13.49 - 0.69 - 3.81 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$7.95 AUD
$9.55 AUD $7.95 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
3/8-16 UNC (9.53mm)

Drill Hole Size
13.49
mm

(Equiv. 0.531 in.)
Grip Range
0.69 - 3.81
mm

(Equiv. 0.027 in.)
Body Diameter (D)
13.46
mm
Rivet Nuts Inserts - 3/8-16 UNC -9.53mm- 13.49 - 0.69 - 3.81
Flange Diameter (F): 17.02 mm    L: 17.526 mm    M: 10.922 mm
Part Number: IN-RIV-095C-038-R (5 Pcs)
Rivet Nuts Inserts - 3/8-16 UNC - 9.53mm - 13.49 - 0.69 - 3.81 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$7.95 AUD
$9.55 AUD $7.95 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Internal Thread
M10 (10x1.5mm)

Drill Hole Size
13.5
mm

(Equiv. 0.531 in.)
Grip Range
0.70 - 3.80
mm

(Equiv. 0.028 in.)
Body Diameter (D)
13.45
mm
Flange Diameter (F)
17
mm
L
17.500
mm
Rivet Nuts Inserts - M10 -10x1.5mm- 13.5 - 0.70 - 3.80
M: 11.000 mm
Part Number: IN-RIV-100M-038-R
Rivet Nuts Inserts - M10 - 10x1.5mm - 13.5 - 0.70 - 3.80 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$2.32 AUD
$2.78 AUD $2.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Internal Thread
M10 (10x1.5mm)

Drill Hole Size
13.5
mm

(Equiv. 0.531 in.)
Grip Range
0.70 - 3.80
mm

(Equiv. 0.028 in.)
Body Diameter (D)
13.45
mm
Rivet Nuts Inserts - M10 -10x1.5mm- 13.5 - 0.70 - 3.80
Flange Diameter (F): 17 mm    L: 17.500 mm    M: 11.000 mm
Part Number: IN-RIV-100M-038-R
Rivet Nuts Inserts - M10 - 10x1.5mm - 13.5 - 0.70 - 3.80 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$2.32 AUD
$2.78 AUD $2.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Internal Thread
M10 (10x1.5mm)

Drill Hole Size
13.5
mm

(Equiv. 0.531 in.)
Grip Range
3.80 -7.90
mm

(Equiv. 0.15 in.)
Body Diameter (D)
13.45
mm
Flange Diameter (F)
17
mm
L
20.400
mm
Rivet Nuts Inserts - M10 -10x1.5mm- 13.5 - 3.80 -7.90
M: 11.000 mm
Part Number: IN-RIV-100M-079-R
Rivet Nuts Inserts - M10 - 10x1.5mm - 13.5 - 3.80 -7.90 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$2.95 AUD
$3.55 AUD $2.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Internal Thread
M10 (10x1.5mm)

Drill Hole Size
13.5
mm

(Equiv. 0.531 in.)
Grip Range
3.80 -7.90
mm

(Equiv. 0.15 in.)
Body Diameter (D)
13.45
mm
Rivet Nuts Inserts - M10 -10x1.5mm- 13.5 - 3.80 -7.90
Flange Diameter (F): 17 mm    L: 20.400 mm    M: 11.000 mm
Part Number: IN-RIV-100M-079-R
Rivet Nuts Inserts - M10 - 10x1.5mm - 13.5 - 3.80 -7.90 Klik
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$2.95 AUD
$3.55 AUD $2.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
