G003P-008-M04-040-015-B (10 Pcs)

Spur Gears - 8 tooth - 3.2x1.5 mm Hubless - Brass Gear

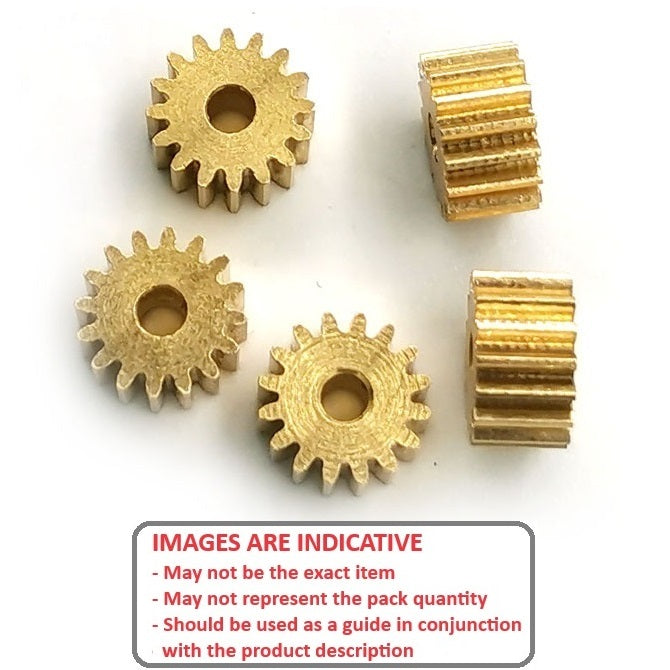

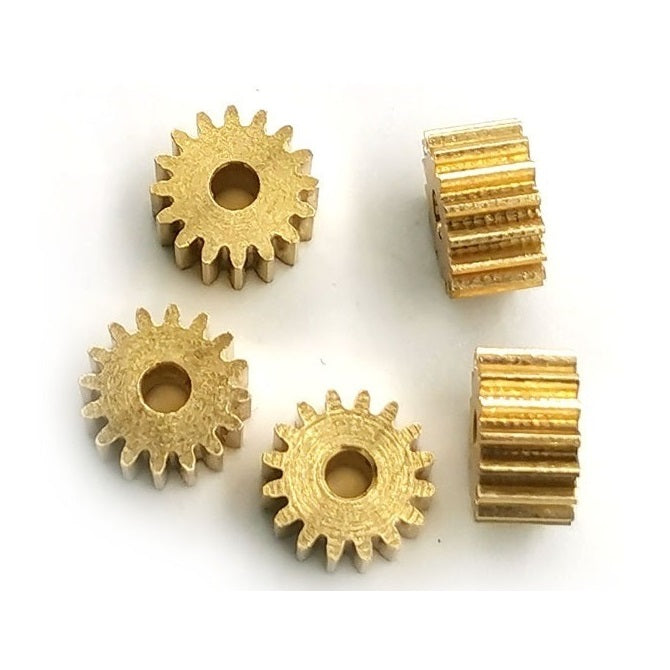

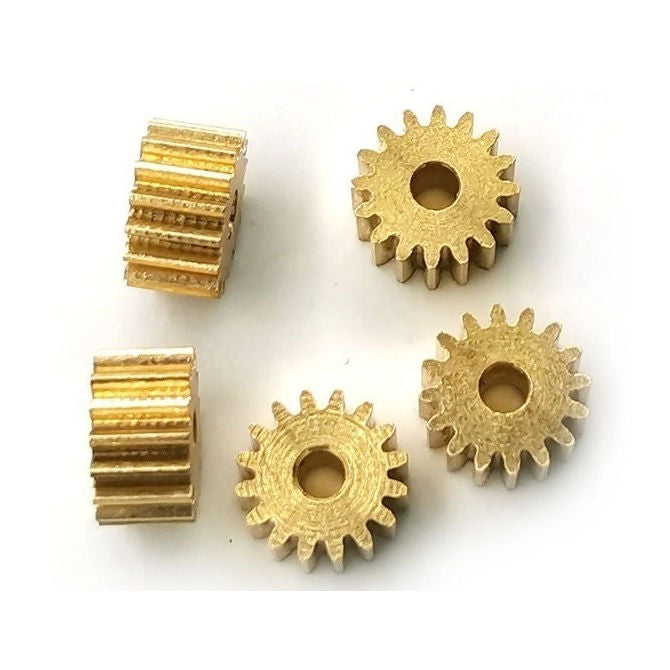

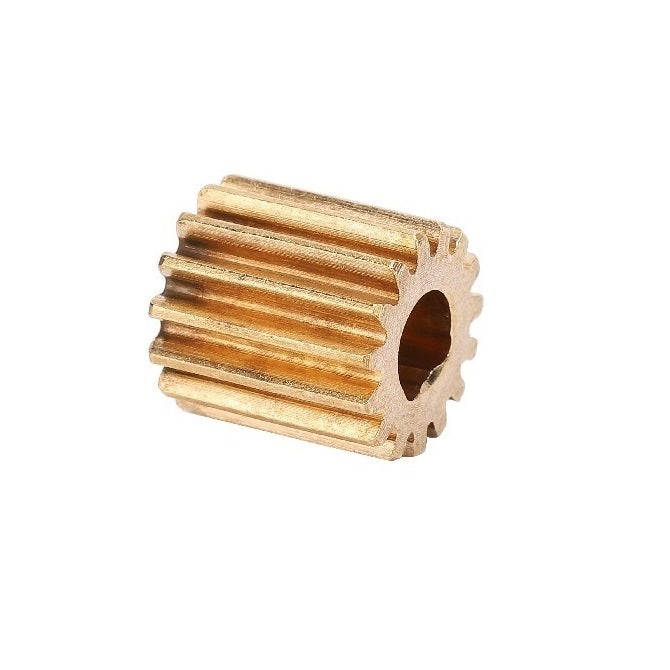

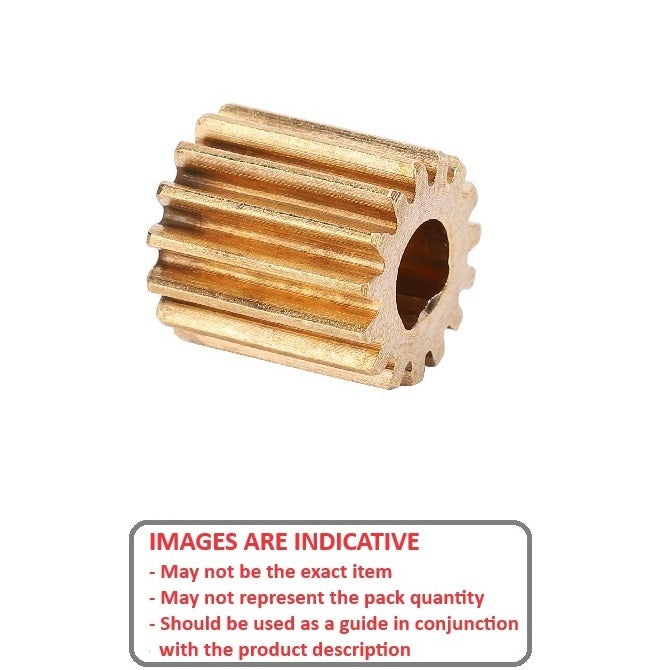

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Spur Gears - 8 tooth - 3.2x1.5 mm Hubless - Brass Gear
1 3

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
per 10
Qty: 83 packs (830 pcs) available now
Order 50 or more packs (500 pcs) for $7.20 AUD per 10
Only 83 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Gears - Spur

Top Level Category: Gears - Spur - Hubless - Module 0.4 - Brass

Product Details

Number of Teeth: 8

Brass

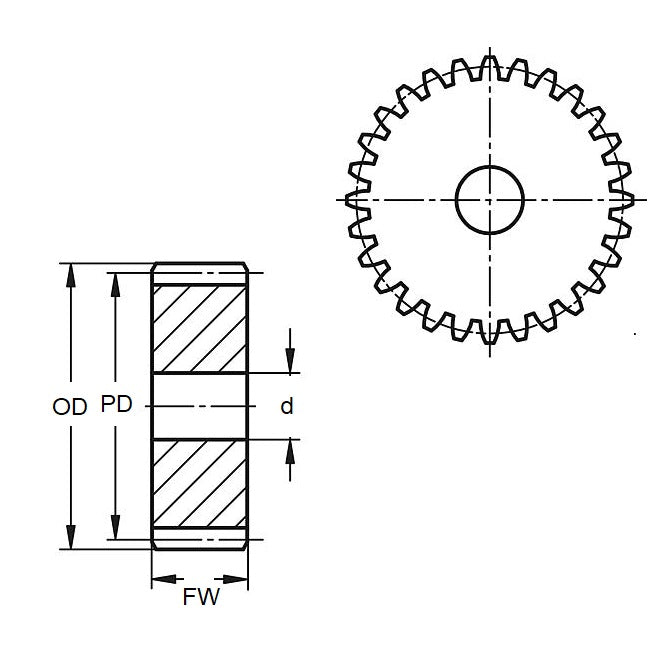

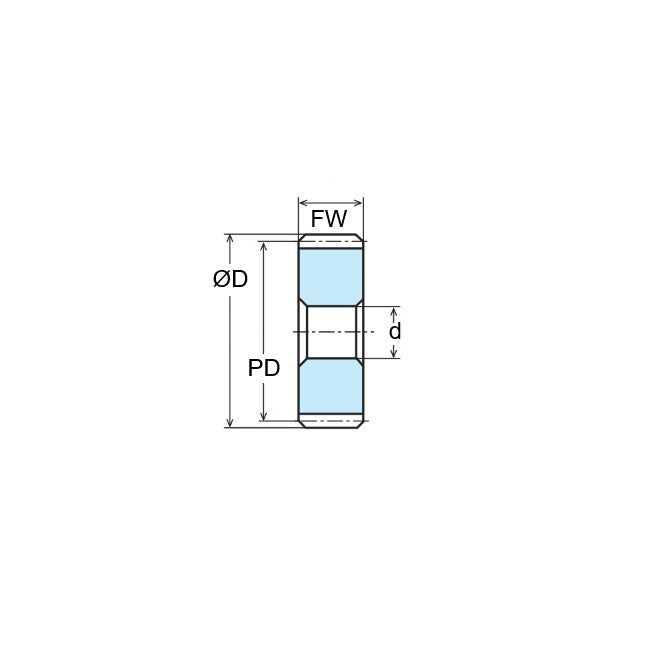

  • Pitch Circle Diameter (PD): 3.20mm
    (3.20mm is 0.126 in.)
  • Bore (d): 1.500mm
    (1.500mm is 0.059 in.)
  • Outside Diameter (OD): 4.000mm
  • Face Width (FW): 4.000mm
  • Type: Hubless
  • Quality: Commercial

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • G003B08M04040015BN

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
