G003P-008-M04-040-015-B - Datasheet
MBA
Category Information

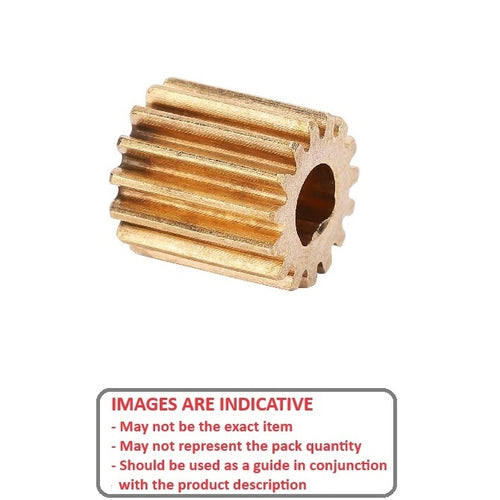

Gears - Spur - Hubless - Module 0.4 - BrassBrass Module 0.4 Hubless Spur Gears. PCD in mm = No. of Teeth x 0.4. 20 Degree Pressure Angle.
- There are more items available in this range than currently listed. Please enquire if you have special requirements. Expanded range includes hardened gears, stainless steel, antibacklash, and special bore sizes.
- Be sure to match the pitch type and tooth angle when selecting spur gears.
- An expanded range may be available on special order. Please enquire.
- The diameter increases by 0.4mm per tooth
- Module 0.4. Approximately 1.26mm between the teeth.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 8

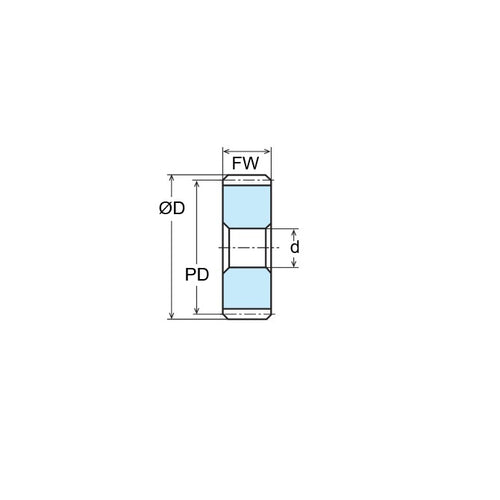

- Pitch Circle Diameter (PD)
3.20
mm
(Equiv. 0.126 in.) - Bore (d)
1.500
mm
(Equiv. 0.059 in.) - Outside Diameter (OD) 4.000 mm
- Face Width (FW) 4.000 mm
- Type Hubless
- Quality Commercial
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- G003B08M04040015BN
