SHLD080-016-PH-S3 (PK-50)
Shoulder Screws - 8x16 mm - M6x1.0 Phillips - Stainless Steel 303/304 Similar to A2 or 18-8 HRB80 Screw
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesalePDF Screws Catalogue
Washers
Nuts

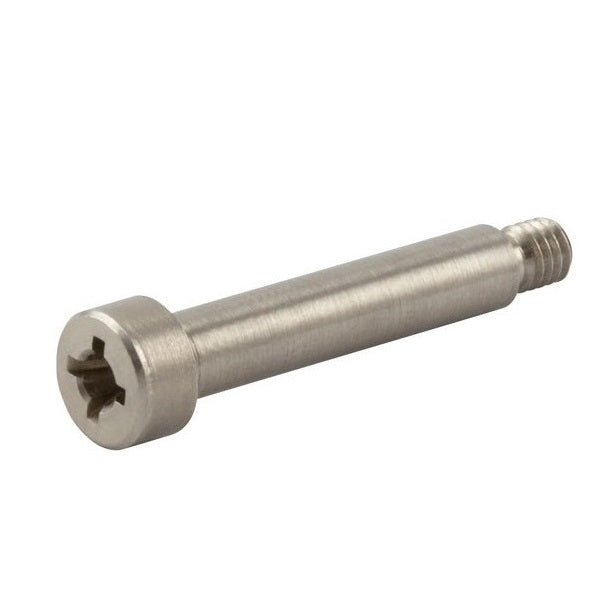

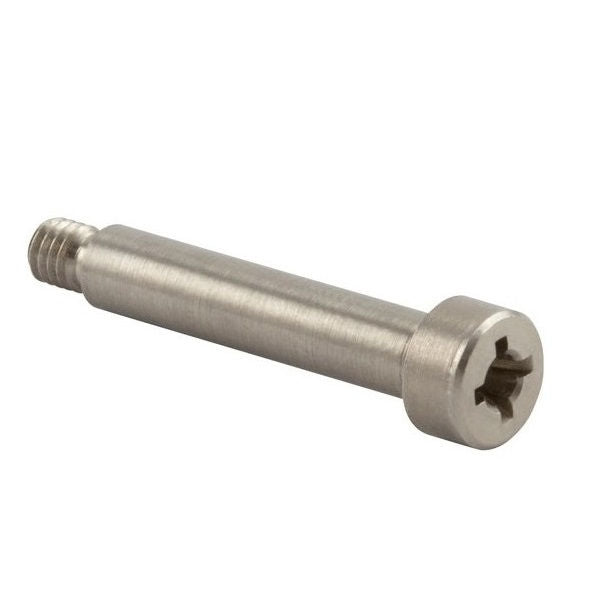

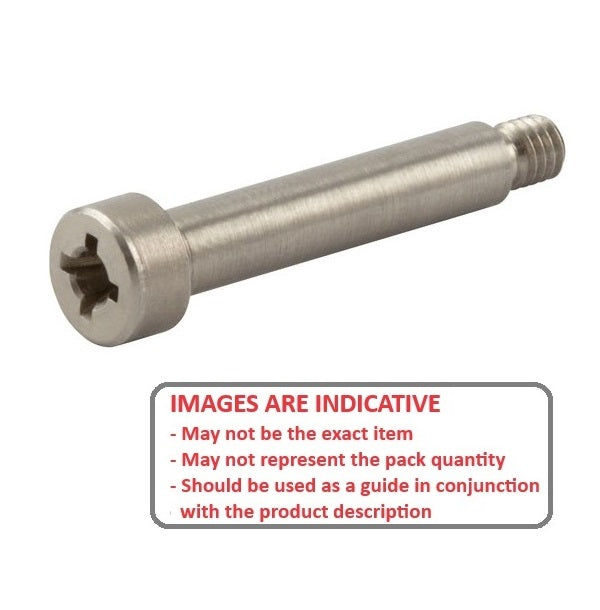

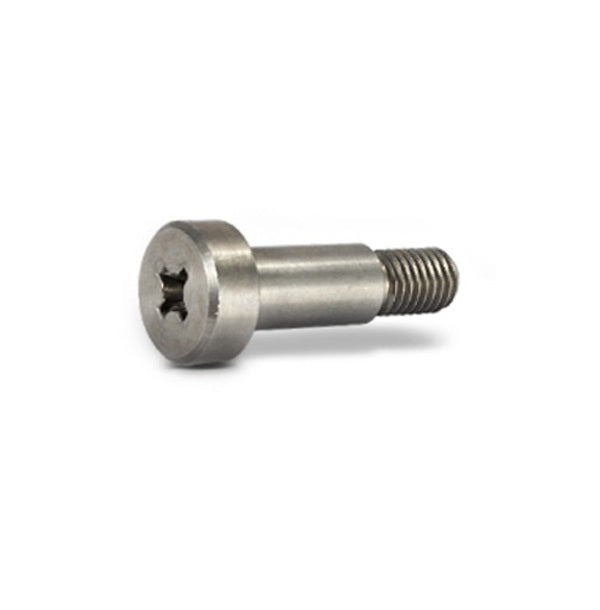

8x16 mm - M6x1.0 Shoulder Screws - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 - Sold per pack of 50:
Base Category: Screws - Shoulder
Top Level Category: Screws - Shoulder - Phillips - Stainless
Product Details

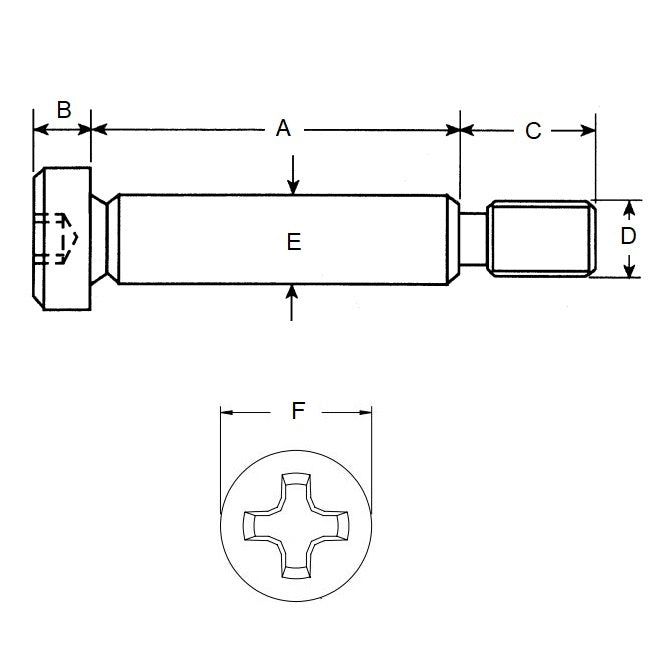

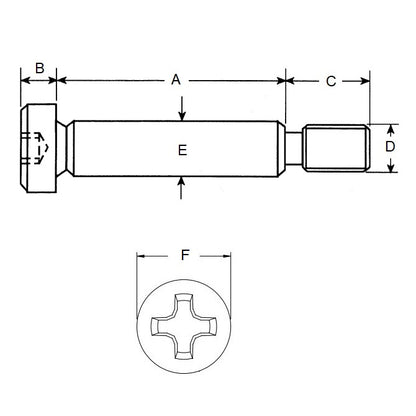

Shoulder Diameter (D1): 8.000mm- 0.013 / - 0.038
(8.000mm is 0.315 in.)
Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
- Shoulder Diameter (D1): 8.000mm
- 0.013 / - 0.038
(8.000mm is 0.315 in.)
- Shoulder Length (A): 16.000mm
+ 0.013 / + 0.063
(16.000mm is 0.63 in.)
- Thread (D): M6x1.0
- Max. Thread Length (l): 11.00mm
- Head Height (H): 6.00mm
- Head Diameter: 12.00mm
- Phillips Drive
- Philips Size: 3
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- S706Y3M6016
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SHLD080016PHS3, SHLD080016PH
