S697-ZZ-MC3

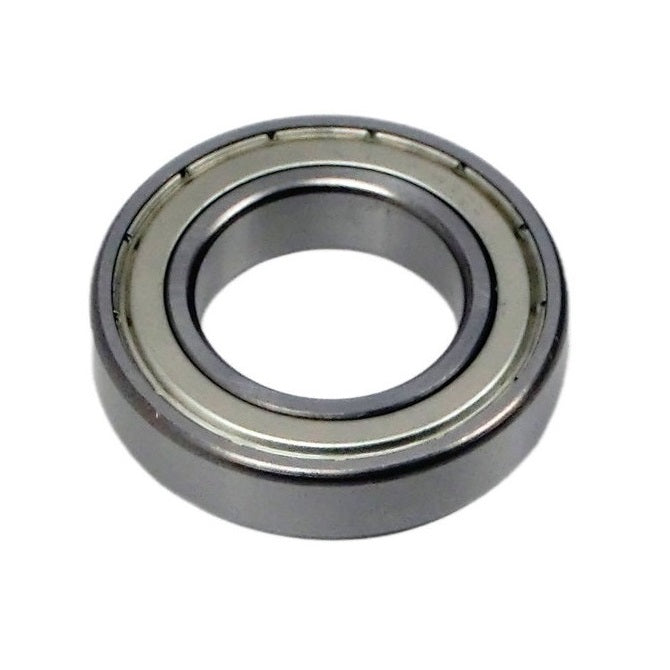

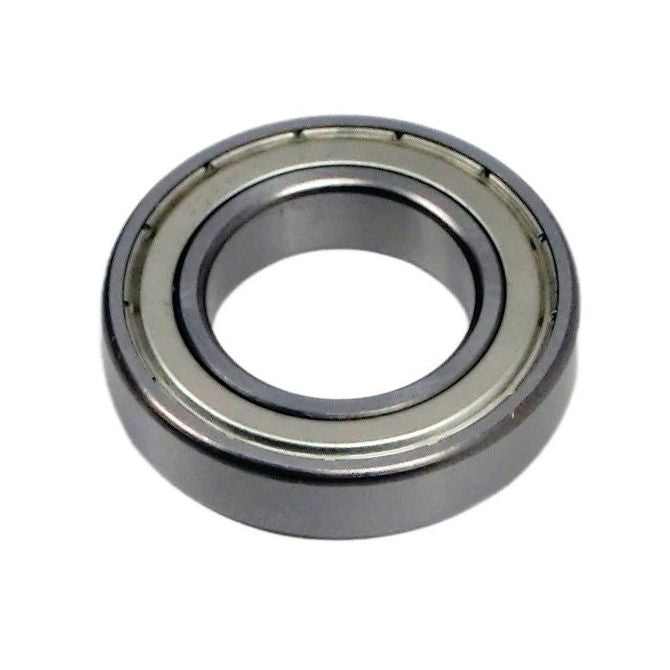

Single Row Ball Bearings - 7x17x5 mm Unflanged - Stainless Steel AISI 440C Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 7x17x5 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$5.77 AUD
$5.77 AUD
Each
Qty: 75 available now
Order 50 or more for $5.19 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 26, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Product Details

ID (d): 7.000mm
+ 0.000 / - 0.0075
(7.000mm is 0.276 in.)

Stainless Steel AISI 440C
  • OD (D): 17.000mm
    + 0.000 / - 0.0075
    (17.000mm is 0.669 in.)
  • Width (B): 5.000mm
    + 0.000 / - 0.125
    (5.000mm is 0.197 in.)
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Stainless 697ZZMC3
  • Stainless 697-ZZ-MC3
  • GRW S697-2Z
  • SHIMANO TGT0019
  • SHIMANO TGT0827
  • SHIMANO TGT1513
  • SHIMANO TLD0028
  • SHIMANO TLD0042
  • SHIMANO TLD01223A
  • SHIMANO TLD0123A
  • SHIMANO TLD0212
  • SHIMANO TLD123A
  • SHIMANO TT0181
  • ADR WAY7-ZZ
  • WAY7ZZ
  • SS697-ZZ
  • SS697ZZ
  • 697H-ZZ
  • 697HZZ
  • S6972Z
  • S697SS
  • S697ZZMC3
  • S697-ZZMC3
  • 697BASIC

Used for

  • Fishing Reel Parts
  • RC Nitro Engine Parts
  • Shimano - TLD25 - Drive Pinion
  • Shimano - TR2000 LD - Drive Pinion
  • ASP - 25 All Models - Bearing 7-17-5mm
  • Bluebird - 21 All Models - Bearing 7-17-5mm
  • Magnum Power - 45 All Models - Bearing 7-17-5mm
  • Magnum Power - XL - 15 - Bearing 7-17-5mm
  • OS - CV-M - 15 - Bearing 7-17-5mm
  • OS - CV-R - 15 - Bearing 7-17-5mm
  • OS - CV-R - 18 - Bearing 7-17-5mm
  • OS - CV-R P With 10 E - 15 - Bearing 7-17-5mm
  • OS - CV-R P With 10C - 12 - Bearing 7-17-5mm
  • OS - CV-R S With 10E - 12 - Bearing 7-17-5mm
  • OS - CV-R S With 10E - 15 - Bearing 7-17-5mm
  • OS - CV-R With 10A - 12 - Bearing 7-17-5mm
  • OS - CV-R With 10C - 15 - Bearing 7-17-5mm
  • OS - CV-R With 10E - 12 - Bearing 7-17-5mm
  • OS - CV-RX - 15 - Bearing 7-17-5mm
  • OS - CV-RX S W10E - 12 - Bearing 7-17-5mm
  • OS - CV-RX S With 10ER - 18 - Bearing 7-17-5mm
  • OS - CV-RX With 10E10A - 15 - Bearing 7-17-5mm
  • OS - TZ - 12 - Bearing 7-17-5mm
  • Saito - 180 All Models - Bearing 7-17-5mm
  • Traxxas - 2.5 Marine - 15 - Bearing 7-17-5mm
  • Traxxas - 25R - 25 - Bearing 7-17-5mm
  • Traxxas - Revo - 15 - Bearing 7-17-5mm
  • Traxxas - Sport Max 75 - Bearing 7-17-5mm
  • Traxxas - T-Max - 15 - Bearing 7-17-5mm
  • Traxxas - TRX - 3.3 - Bearing 7-17-5mm
