BF0070-0120-0080-BS1630TT

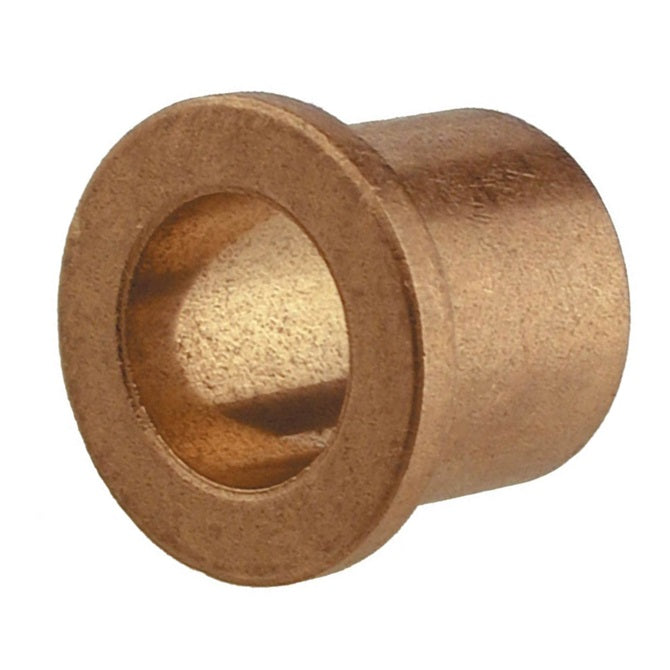

Flanged Bushes - 7x12x8 mm - Bronze SAE 841 Sintered Bush

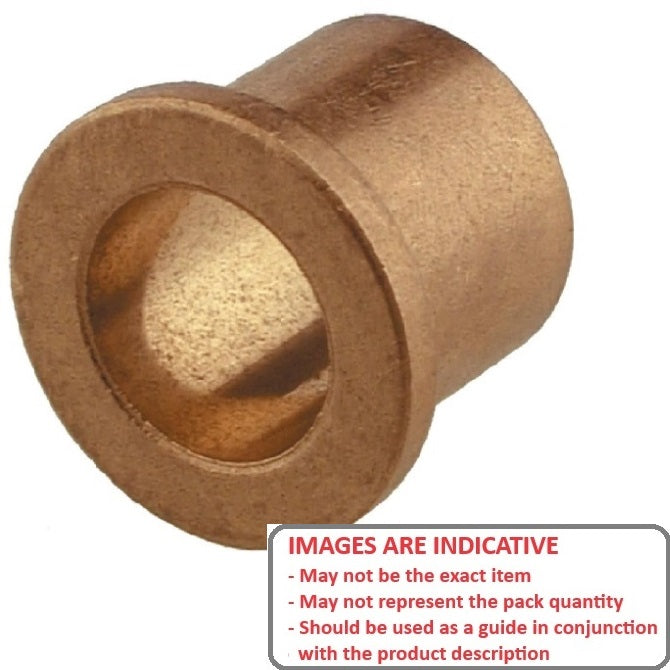

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Bushes PDF Catalogue
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Bushes - Flanged

Top Level Category: Bushes - Flanged - Bronze - Sintered

Product Details

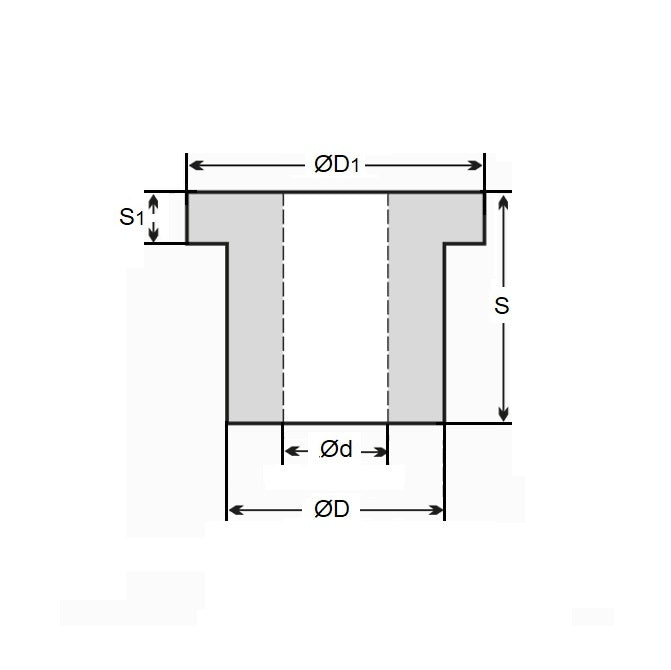

Nominal Inside Diameter (d): 7.000mm
+ 0.025 / + 0.040
(7.000mm is 0.276 in.)

Bronze SAE 841 Sintered
  • Nominal Outside Diameter (D): 12.000mm
    + 0.023 / + 0.041
    (12.000mm is 0.472 in.)
  • Length (s): 8.000mm
    + 0 / - 0.200
    (8.000mm is 0.315 in.)
  • Flange OD (D1): 16.00mm
  • Flange Thickness (S1): 3.00mm

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

Similar to

  • BF007001200080BS
  • BF007001200080BSTL
  • A7B4MF071208

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
