GR-D96-04-0076-09-S41MS (Each)

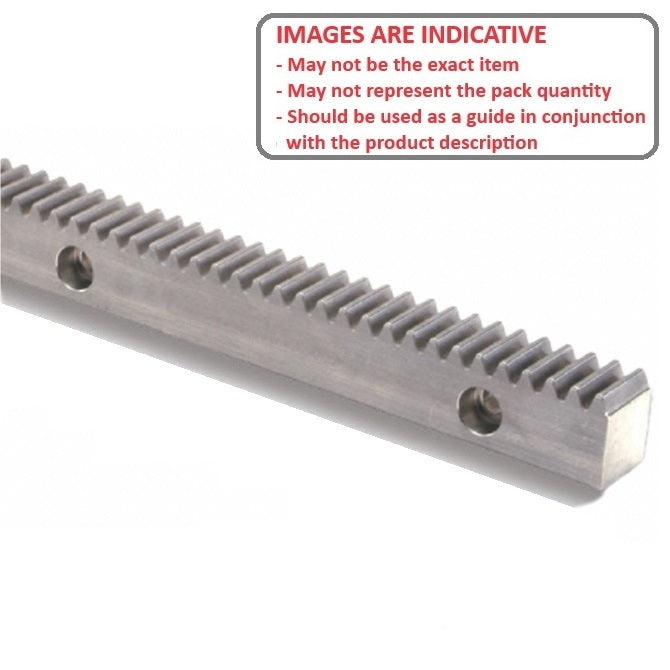

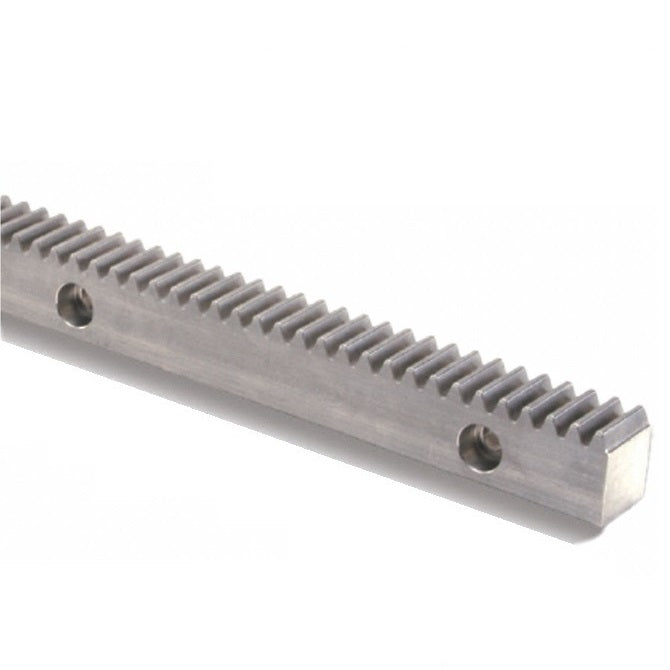

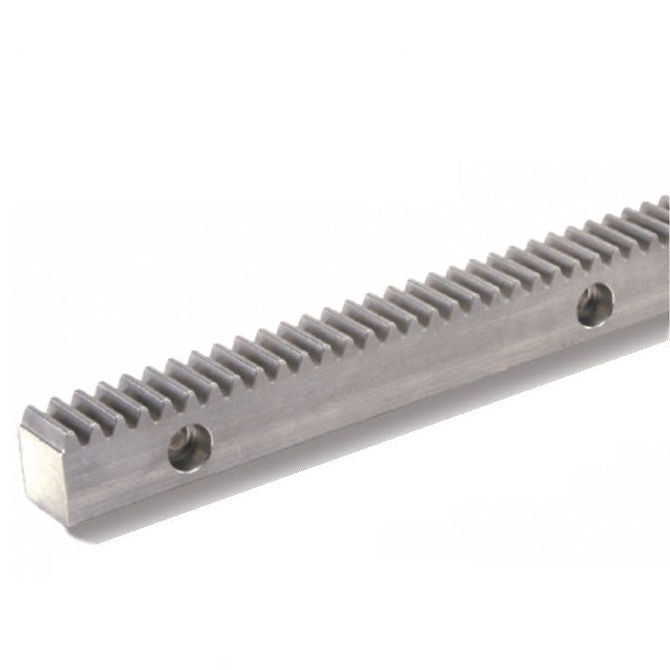

Rack Gears - 76.2x4.242x9.017 mm Imperial - Stainless Steel AISI 416 Rc 36-42
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Spur Gears
Couldn't load pickup availability
3 inch Rack - 76.2x4.242x9.017 mm Rack Gears - Stainless Steel AISI 416 Rc 36-42 - Sold per Each:
Base Category: Gears - Rack
Top Level Category: Gears - Rack - Imperial - 96DP - Stainless - Side Holes
Product Details
Deleted Item. Available while stocks last.

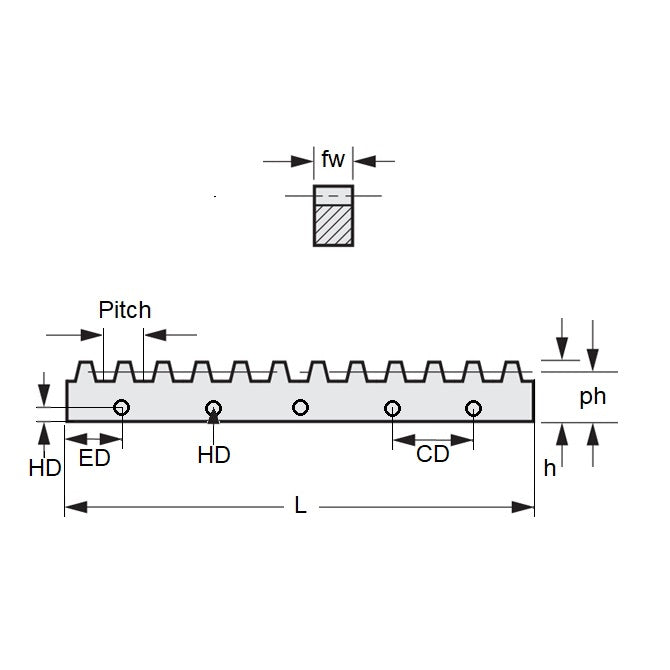

Length (L): 76.2mm
(76.2mm is 3 in.)
Stainless Steel AISI 416 Rc 36-42
- Length (L): 76.2mm
(76.2mm is 3 in.)
- Face Width (fw): 4.242mm
(4.242mm is 0.167 in.)
- Height (h): 9.017mm
(9.017mm is 0.355 in.)
- Pitch Type: 96DP
- Pitch Height (ph): 8.753mm
- Pressure Angle: 20°
- Precision: Precision
- Mounting Hole Details (H.D): 4 x 3.04mm at 22.23mm centres, 3.96mm Centre from Base
- Shape: Rectangular
- Hole Centre Distance (C.D.): 22.23mm
- End Hole Centre to Edge (E.D.): 4.75mm
- Hole Centre to Base: 3.96mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- S1810YRC7
- S1810Y-RC-7
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
