TB-75 (Each)

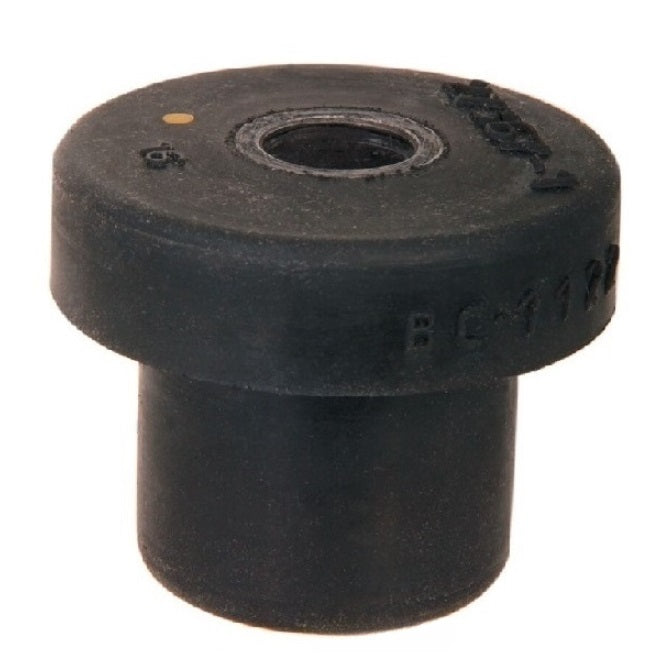

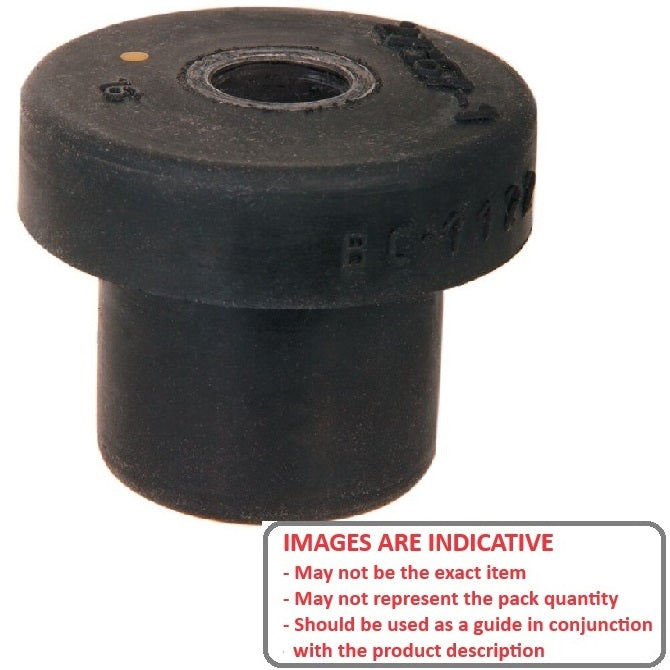

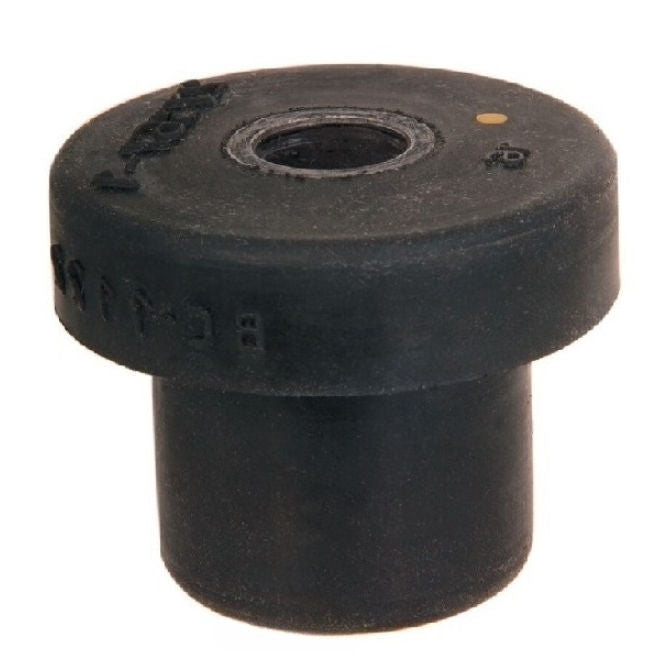

Bonded Mounts - 340 kg - 16.3x75.5 mm Tee Bush Centre Bolt - Neoprene Rubber and Steel Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleCylindrical Bobbin Mounts PDF Quick Guide
Order 50 or more
for $21.81 AUD Each
Couldn't load pickup availability
340 kg - 16.3x75.5 mm Bonded Mounts - Neoprene Rubber and Steel - Sold per Each:
Base Category: Mounts - Bonded
Top Level Category: Mounts - Bonded - Tee Bush Centre Bolt
Product Details
Max Static Load: 340kgNeoprene Rubber and Steel

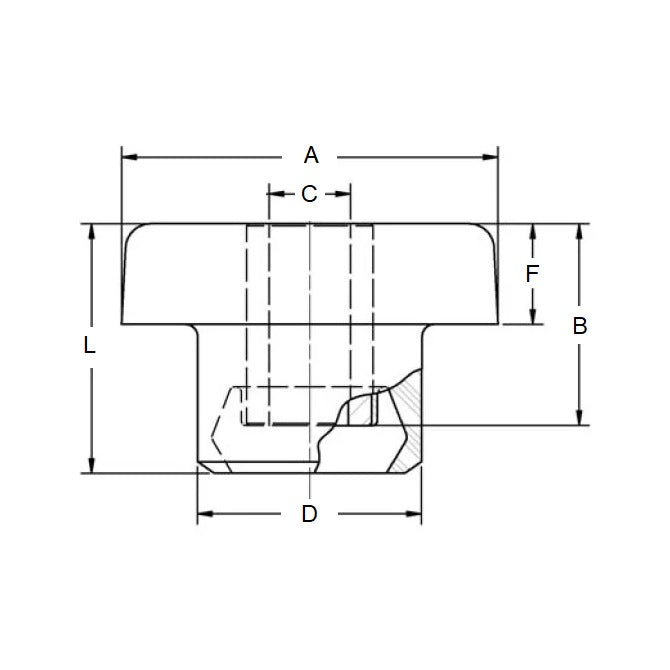

- Max Static Load: 340kg
- Bolt Hole Diameter (C): 16.3mm
(16.3mm is 0.642 in.)
- Flange Diameter (A): 75.5mm
(75.5mm is 2.972 in.)
- Flange Width (F): 20.6mm
- Shoulder Diameter (D): 50.3mm
- Overall Length (B): 64.0mm
Brand: MBA
Country of Origin: GB
