MSF-048F-S3AP (Each)
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $21.31 AUD Each
10-32 UNF (4.76mm) 19.1x13.5 mm Levelling Socket Mounts - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 - Sold per Each:
Base Category: Mounts - Levelling Socket
Top Level Category: Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base
Product Details

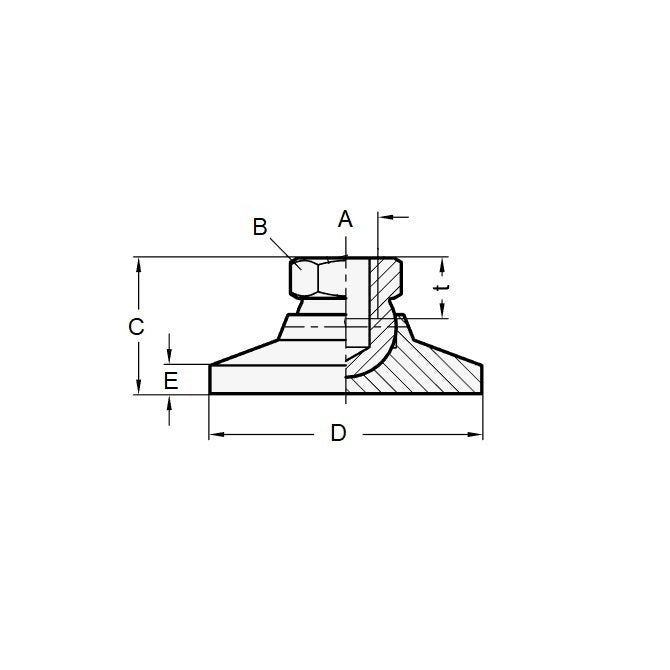

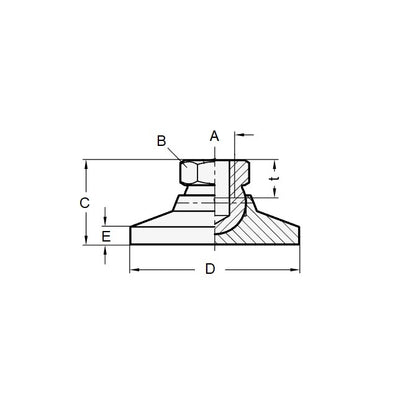

Thread Size (A): 10-32 UNF (4.76mm)Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
- Thread Size (A): 10-32 UNF (4.76mm)
- Base Diameter (D): 19.1mm
(19.1mm is 0.752 in.)
- Foot Height (C): 13.5mm
(13.5mm is 0.531 in.)
- Min. Thread Depth: 4.3mm
- Base Height (E): 2.79mm
- Load Rating: 70Kg
- Pad Material: Delrin
- Hex Flats (B): 9.53mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® LD-5SS
- LD5SS
- MSF0070048F36
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MSF048FS3AP, MSF048F
