Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base

Mounts -> Levelling Socket -> Swivel -> 303 Stainless Acetal Base

There are 5 products in the sub-categories of Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base. Browse the Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base products table.

Category Details

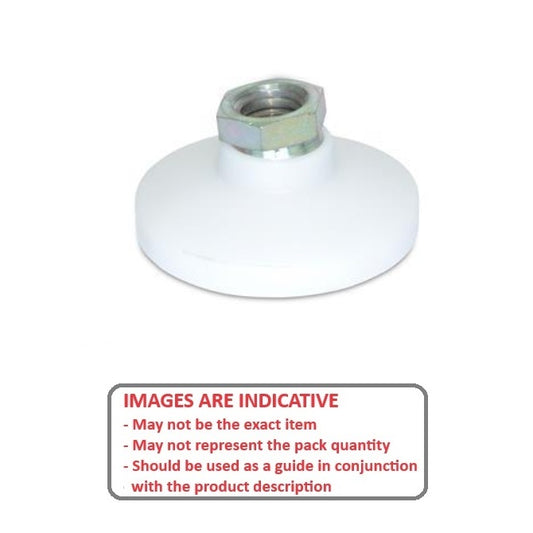

A selection of 303 Stainless Acetal Base Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Socket - Swivel - 303 Stainless Acetal Base category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Base Height (E) Overall Height Indicative
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Min. Thread Depth
4.3
mm
Base Height (E)
2.79
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 70 Kg    Pad Material: Delrin    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S3AP
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$25.23 AUD
$25.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Min. Thread Depth Indicative
Thread Size (A)
10-32 UNF (4.76mm)

Base Diameter (D)
19.1
mm

(Equiv. 0.752 in.)
Foot Height (C)
13.5
mm

(Equiv. 0.531 in.)
Min. Thread Depth
4.3
mm
Levelling Socket Mounts - 10-32 UNF -4.76mm- 19.1x13.5 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 2.79 mm    Load Rating: 70 Kg    Pad Material: Delrin    Hex Flats (B): 9.53 mm
Part Number: MSF-048F-S3AP
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x13.5 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$25.23 AUD
$25.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Base Diameter (D)
25.4
mm

(Equiv. 1 in.)
Foot Height (C)
17.8
mm

(Equiv. 0.701 in.)
Min. Thread Depth
7.9
mm
Base Height (E)
3.81
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 90 Kg    Pad Material: Delrin    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-S3AP
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.8 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$27.95 AUD
$33.55 AUD $27.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Base Diameter (D)
25.4
mm

(Equiv. 1 in.)
Foot Height (C)
17.8
mm

(Equiv. 0.701 in.)
Min. Thread Depth
7.9
mm
Levelling Socket Mounts - 1/4-20 UNC -6.35mm- 25.4x17.8 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 3.81 mm    Load Rating: 90 Kg    Pad Material: Delrin    Hex Flats (B): 12.70 mm
Part Number: MSF-064C-S3AP
Levelling Socket Mounts - 1/4-20 UNC - 6.35mm - 25.4x17.8 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$27.95 AUD
$33.55 AUD $27.95 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
22.2
mm

(Equiv. 0.874 in.)
Min. Thread Depth
9.7
mm
Base Height (E)
4.75
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 140 Kg    Pad Material: Delrin    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-S3AP
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$30.05 AUD
$36.05 AUD $30.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Base Diameter (D)
31.8
mm

(Equiv. 1.252 in.)
Foot Height (C)
22.2
mm

(Equiv. 0.874 in.)
Min. Thread Depth
9.7
mm
Levelling Socket Mounts - 3/8-16 UNC -9.53mm- 31.8x22.2 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 4.75 mm    Load Rating: 140 Kg    Pad Material: Delrin    Hex Flats (B): 15.88 mm
Part Number: MSF-095C-S3AP
Levelling Socket Mounts - 3/8-16 UNC - 9.53mm - 31.8x22.2 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$30.05 AUD
$36.05 AUD $30.05 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
28.6
mm

(Equiv. 1.126 in.)
Min. Thread Depth
11.2
mm
Base Height (E)
6.35
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 315 Kg    Pad Material: Delrin    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-S3AP
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$28.77 AUD
$34.53 AUD $28.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Base Diameter (D)
47.6
mm

(Equiv. 1.874 in.)
Foot Height (C)
28.6
mm

(Equiv. 1.126 in.)
Min. Thread Depth
11.2
mm
Levelling Socket Mounts - 1/2-13 UNC -12.7mm- 47.6x28.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 6.35 mm    Load Rating: 315 Kg    Pad Material: Delrin    Hex Flats (B): 19.05 mm
Part Number: MSF-127C-S3AP
Levelling Socket Mounts - 1/2-13 UNC - 12.7mm - 47.6x28.6 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$28.77 AUD
$34.53 AUD $28.77 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1-8 UNC (25.4mm)

Base Diameter (D)
101.6
mm

(Equiv. 4 in.)
Foot Height (C)
47.6
mm

(Equiv. 1.874 in.)
Min. Thread Depth
20.6
mm
Base Height (E)
27.76
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Load Rating: 1090 Kg    Pad Material: Delrin    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-S3AP
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$171.41 AUD
$205.69 AUD $171.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1-8 UNC (25.4mm)

Base Diameter (D)
101.6
mm

(Equiv. 4 in.)
Foot Height (C)
47.6
mm

(Equiv. 1.874 in.)
Min. Thread Depth
20.6
mm
Levelling Socket Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80    Base Height (E): 27.76 mm    Load Rating: 1090 Kg    Pad Material: Delrin    Hex Flats (B): 34.93 mm
Part Number: MSF-254C-S3AP
Levelling Socket Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Mount
Out of Stock | Backorder Now | Orders can be expected around Sat, Sep 27, 2025
$171.41 AUD
$205.69 AUD $171.41 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
