CCI-00794-CZY (PK-100)

Name: Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip (Sold Per PK-100) - - CCI-00794-CZY
Brand: MBA
SKU: CCI00794CZY
Price: 23.23 AUD
Availability: BackOrder

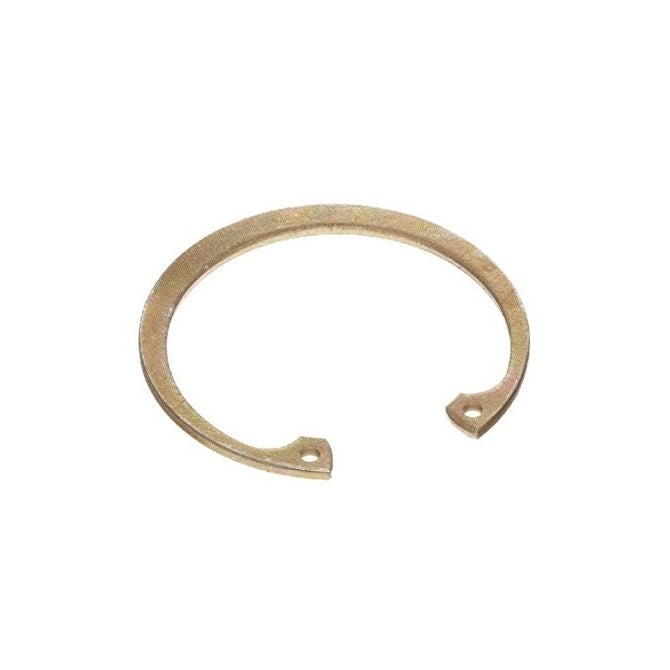

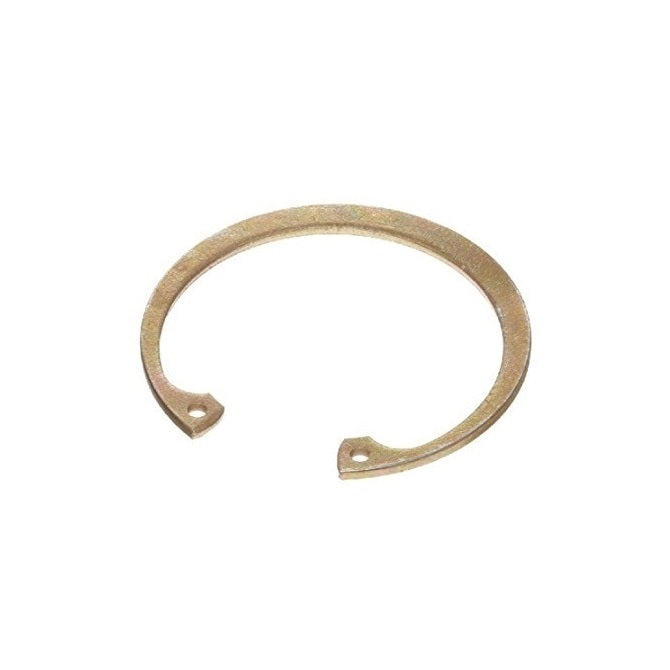

Internal Retaining Rings - 7.94x0.31x8.38 mm Circlips - Carbon Steel Zinc Plated Circlip

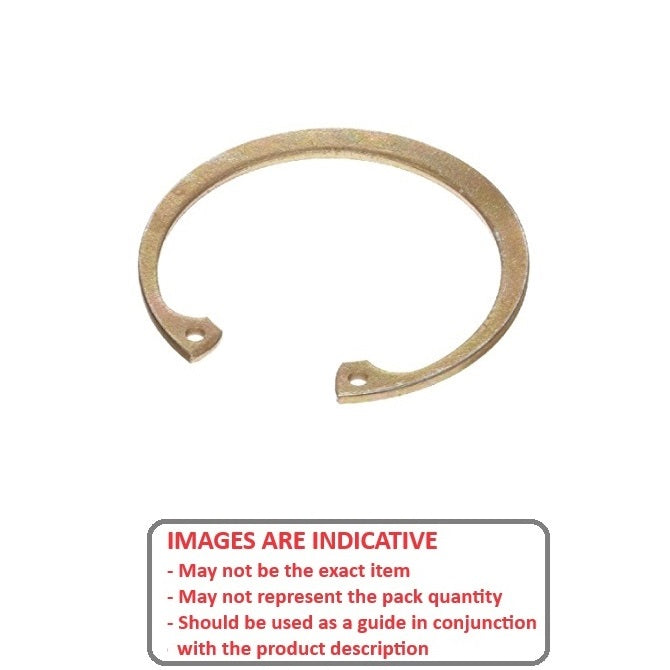

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$23.23 AUD

~~$54.40 AUD~~ $23.23 AUD

Priced, Stocked and Sold Per 100 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 100 (5000 pcs)
for $20.91 AUD per 100 pack

Product Details

Additional stock available from USA subject to Prior Sale = 12154

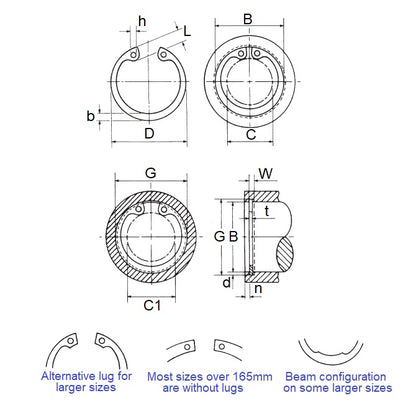

Housing Bore (B): 7.94mm
_{(7.94mm is 0.313 in.)}

Carbon Steel Zinc Plated

Housing Bore (B): 7.94mm
_{(7.94mm is 0.313 in.)}
Clip Thickness (T): 0.31mm
_{+ 0.00 / - 0.05}
_{(0.31mm is 0.012 in.)}
Groove Dia. (Dg): 8.38mm
_{+/- 0.025}
_{(8.38mm is 0.33 in.)}
Approx. Loose Circlip OD (Dr): 8.79mm
_{+ 0.25 / - 0.13}
Groove Width (W): 0.51mm
_{+ 0.05 / - 0.00}
Clearance in Bore (C): 4.32mm
Clearance in Groove (C1): 4.83mm
Min. Lug Diameter (h): 0.74mm
Min. Extension (n): 0.69
Standard: MIL-16625

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
98409A116
Huyett® HO-031-ZD
NoCor® HO-031-ZD
Small Parts RI-5
HO031ZD
RI5
N1300-0031AZD
N13000031AZD

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
