ECB-0064-0079-S15 (250 Pcs)

E-Clips Retaining Rings - 7.94x6.35x0.89 mm Bowed - Stainless Steel Grade PH15-7 Mo E-Clip

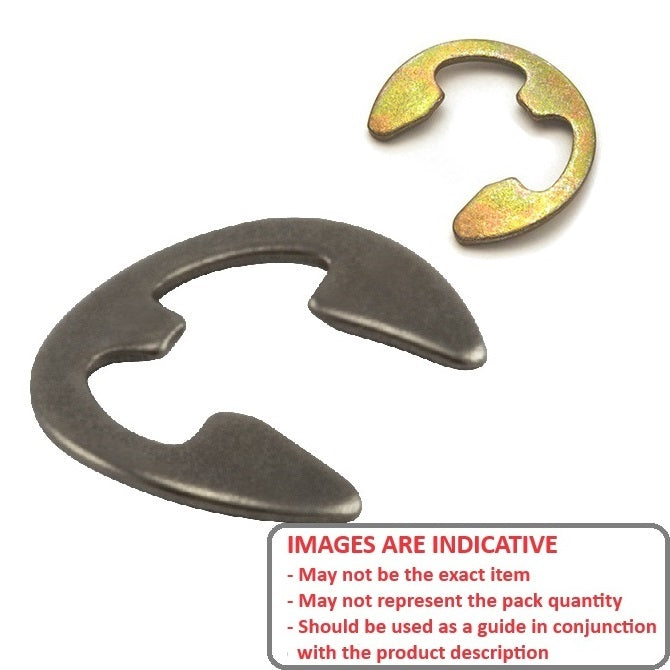

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • E-Clips Retaining Rings - 7.94x6.35x0.89 mm - Stainless Steel Grade PH15-7 Mo
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Assortment Kits
Price:
$1,604.32 AUD
$1,604.32 AUD
per 250
Backorder
Order 50 or more pack (12500 pcs) for $1,443.89 AUD per 250
Backorder now! Backorders for more than the stock quantity are expected before Dec 15, 2025

Base Category: Retaining Rings - E-Clips

Top Level Category: Retaining Rings - E-Clips - Bowed

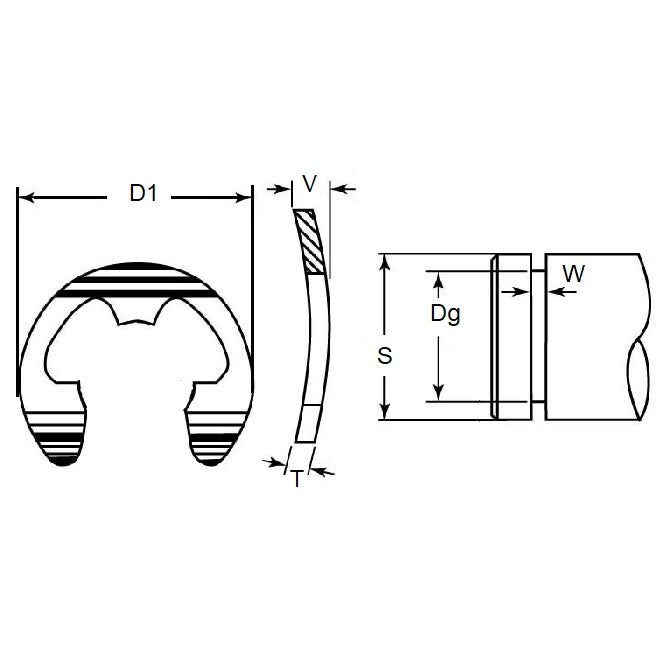

Product Details

Minimum Rec. Shaft Dia (S): 7.94mm
(7.94mm is 0.313 in.)

Stainless Steel Grade PH15-7 Mo
  • Groove Dia. (Dg): 6.35mm
    + 0.076 / - 0.000
    (6.35mm is 0.25 in.)
  • Clip Thickness (T): 0.89mm
    +/ - 0.051
    (0.89mm is 0.035 in.)
  • Clip OD Loose (D1): 12.70mm
  • Groove Width (W): 1.19mm
  • Ring Width (X): 1.27mm
  • Force Required to Flatten: 13.4kg

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • NoCor BSE-031-SS
  • BSE031SS
  • N1501X031KSF
  • N1501-X031KSF
  • S73KW2-131-31
  • S73KW213131

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
