ECB-0064-0079-S15 - Datasheet
MBA
Category Information

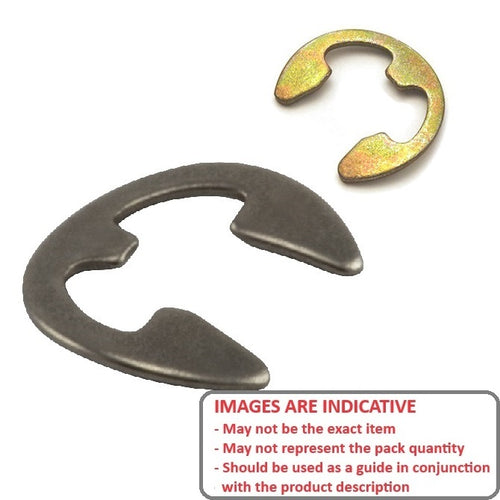

Retaining Rings - E-Clips - BowedBowed E-Clips Retaining Rings. For end play take up.
- An expanded range may be available on special order. Please enquire.
- Thickness tolerance +/- 0.025.

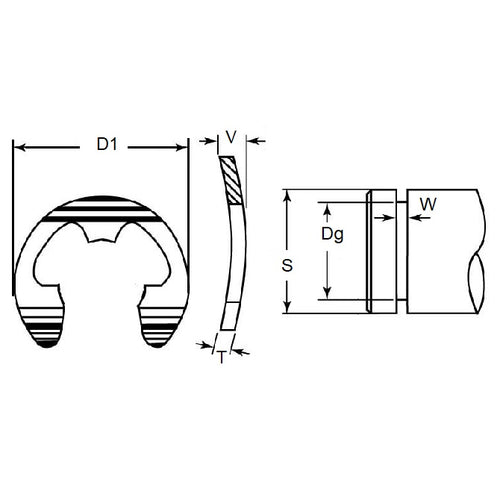

Product Data
- Minimum Rec. Shaft Dia (S)
:
7.94
mm
(Equiv. 0.313 in.) - Groove Dia. (Dg)
6.35
mm
+ 0.076 / - 0.000
(Equiv. 0.25 in.) - Clip Thickness (T)
0.89
mm
+/ - 0.051
(Equiv. 0.035 in.) - Clip OD Loose (D1) 12.70 mm
- Groove Width (W) 1.19 mm
- Ring Width (X) 1.27 mm
- Force Required to Flatten 13.4 kg
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- NoCor BSE-031-SS
- BSE031SS
- N1501X031KSF
- N1501-X031KSF
- S73KW2-131-31
- S73KW213131
