BLP-079-0540-CZ (PK-3)

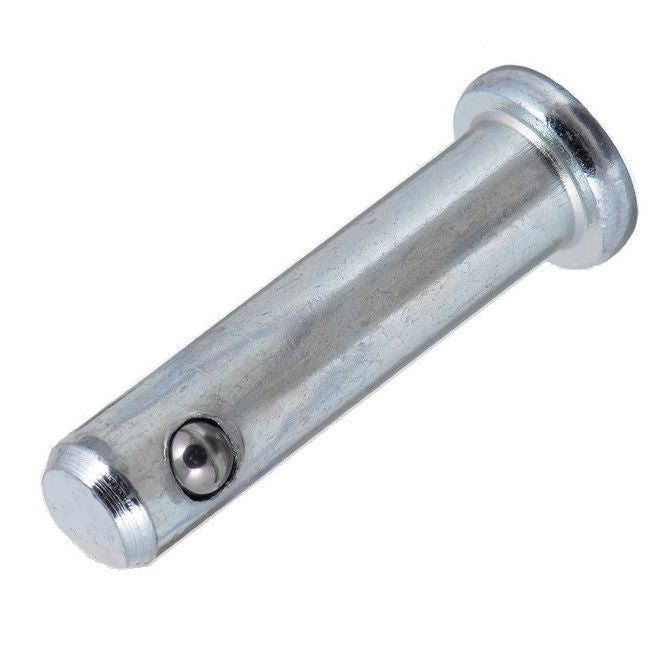

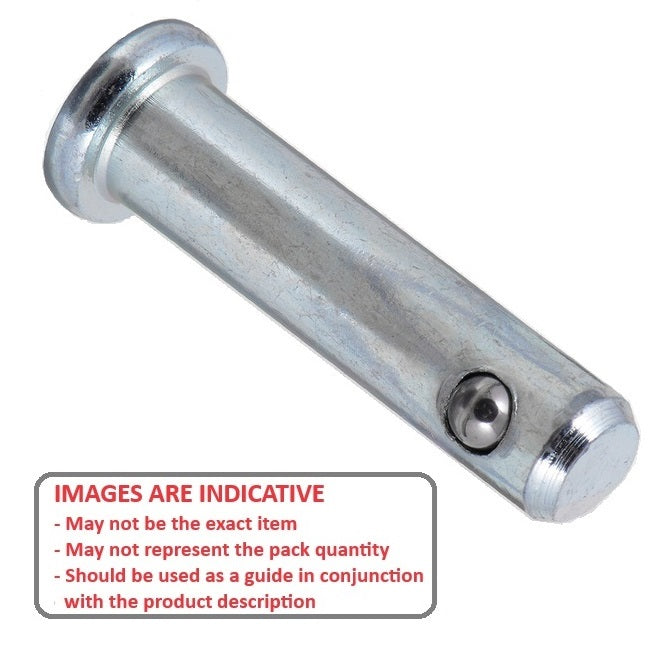

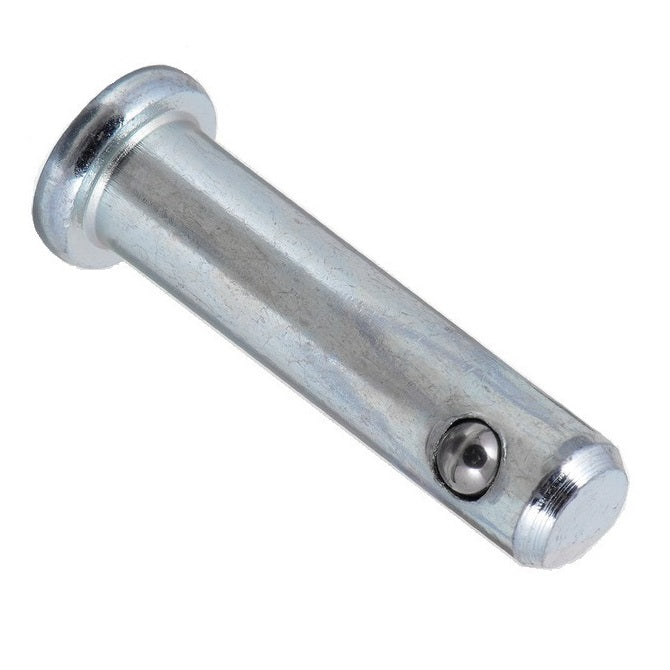

Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleMaster Pins Catalogue PDF
Assortment Kits
Order 50 or more packs of 3 (150 pcs)
for $8.79 AUD per 3 pack
Base Category: Pins - Clevis
Top Level Category: Pins - Clevis - Self Locking Zinc Plated
Product Details
Additional stock available from USA subject to Prior Sale = 194

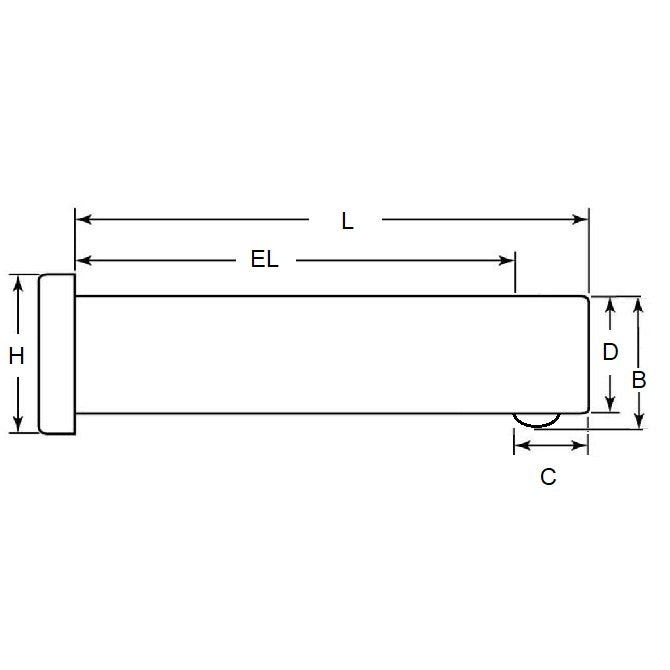

Nominal Pin Diameter (A): 7.94mm
- 0.05 / - 0.18
(7.94mm is 0.313 in.)
Zinc Plated Low Carbon Steel
- Nominal Pin Diameter (A): 7.94mm
- 0.05 / - 0.18
(7.94mm is 0.313 in.)
- Grip Length (EL): 53.97mm
+ 0.51 / - 0.00
(53.97mm is 2.125 in.)
- Nom. Length (L): 63.50mm
+ 0.51 / - 0.00
(63.50mm is 2.5 in.)
- Locking Ball to End (C): 9.53mm
- Open Ball Distance (B): 0.64 to 0.76mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Huyett® CLPCZ-0312-2500
- NoCor® CLPCZ-0312-2500
- BLP0790540Z
- CLPCZ03122500
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
