Collection: Pins - Clevis - Self Locking Zinc Plated

Pins -> Clevis -> Self Locking Zinc Plated

There are 33 products in the sub-categories of Pins - Clevis - Self Locking Zinc Plated. Scroll down or follow the link to Pins - Clevis - Self Locking Zinc Plated in the products table to see all these items combined into a handy table with filters.

Category Details

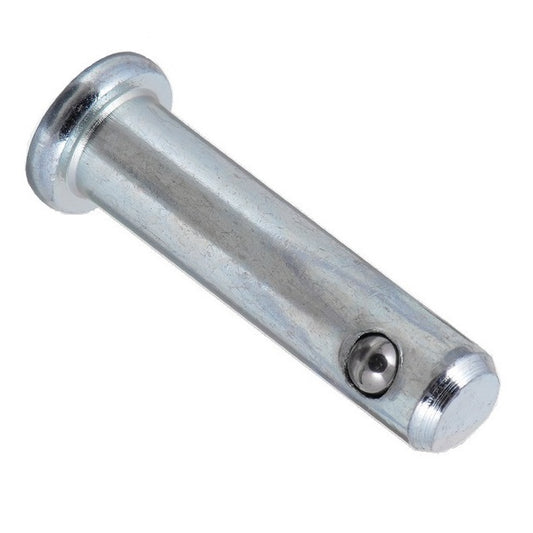

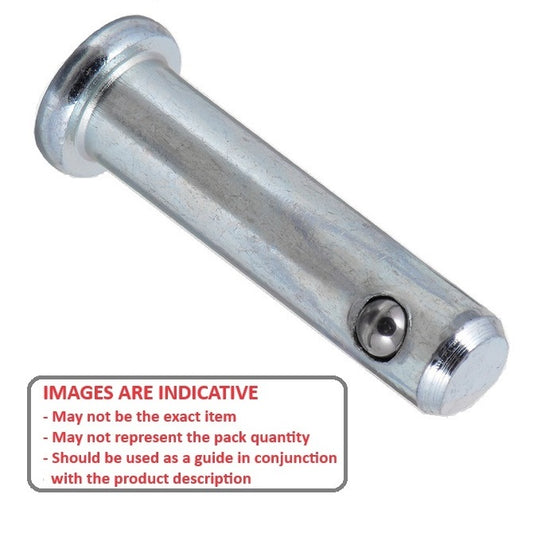

A selection of Self Locking Zinc Plated Clevis Pins. Inexpensive ball lock pin type. No need for cotter pins.

Self locking and reusable with a spring loaded ball lock
Zinc plated low carbon steel with stainless steel ball

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pins - Clevis - Self Locking Zinc Plated category on the Small Parts & Bearings online store.

Nominal Pin Diameter (A)	Grip Length (EL)	Nom. Length (L)	Indicative Image
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 20.64 mm _{+ 0.51 / - 0.00} (Equiv. 0.813 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0206-CZ (2 Pcs) Clevis Pins - 4.76x20.64x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 103 units (206 pcs) Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2 Quantity Required 103 units (206 pcs) Available Now. Backorder if more than 103.
Nominal Pin Diameter (A)	Grip Length (EL)	Nom. Length (L)	Indicative Image
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 20.64 mm _{+ 0.51 / - 0.00} (Equiv. 0.813 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0206-CZ (2 Pcs) Clevis Pins - 4.76x20.64x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 103 units (206 pcs) Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Per 2 Quantity Required 103 units (206 pcs) Available Now. Backorder if more than 103.
BLP-048-0206-CZ (2 Pcs) --- Clevis Pins - 4.76x20.64x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-048-0206-CZ (2 Pcs) --- Clevis Pins - 4.76x20.64x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 103 Available Now
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 33.34 mm _{+ 0.51 / - 0.00} (Equiv. 1.313 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0333-CZ Clevis Pins - 4.76x33.34x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 62 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required 62 Available Now. Backorder if more than 62.
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 33.34 mm _{+ 0.51 / - 0.00} (Equiv. 1.313 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0333-CZ Clevis Pins - 4.76x33.34x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 62 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required 62 Available Now. Backorder if more than 62.
BLP-048-0333-CZ --- Clevis Pins - 4.76x33.34x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-048-0333-CZ --- Clevis Pins - 4.76x33.34x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per 62 Available Now
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 46.04 mm _{+ 0.51 / - 0.00} (Equiv. 1.813 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0460-CZ (4 Pcs) Clevis Pins - 4.76x46.04x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $5.77 AUD Regular price ~~$6.93 AUD~~ Sale price $5.77 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 46.04 mm _{+ 0.51 / - 0.00} (Equiv. 1.813 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0460-CZ (4 Pcs) Clevis Pins - 4.76x46.04x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $5.77 AUD Regular price ~~$6.93 AUD~~ Sale price $5.77 AUD Unit price per Per 4 Quantity Required Backorder: Out of Stock.
BLP-048-0460-CZ (4 Pcs) --- Clevis Pins - 4.76x46.04x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-048-0460-CZ (4 Pcs) --- Clevis Pins - 4.76x46.04x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $5.77 AUD Regular price ~~$6.93 AUD~~ Sale price $5.77 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 58.74 mm _{+ 0.51 / - 0.00} (Equiv. 2.313 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0587-CZ (5 Pcs) Clevis Pins - 4.76x58.74x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 58.74 mm _{+ 0.51 / - 0.00} (Equiv. 2.313 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0587-CZ (5 Pcs) Clevis Pins - 4.76x58.74x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
BLP-048-0587-CZ (5 Pcs) --- Clevis Pins - 4.76x58.74x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-048-0587-CZ (5 Pcs) --- Clevis Pins - 4.76x58.74x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 71.44 mm _{+ 0.51 / - 0.00} (Equiv. 2.813 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0714-CZ Clevis Pins - 4.76x71.44x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 21 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required 21 Available Now. Backorder if more than 21.
Nominal Pin Diameter (A) 4.76 mm _{- 0.04 / - 0.16} (Equiv. 0.187 in.)	Grip Length (EL) 71.44 mm _{+ 0.51 / - 0.00} (Equiv. 2.813 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 4.76 mm Open Ball Distance (B): 0.38 to 0.51 mm
Part Number: BLP-048-0714-CZ Clevis Pins - 4.76x71.44x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 21 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required 21 Available Now. Backorder if more than 21.
BLP-048-0714-CZ --- Clevis Pins - 4.76x71.44x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-048-0714-CZ --- Clevis Pins - 4.76x71.44x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per 21 Available Now
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 19.05 mm _{+ 0.51 / - 0.00} (Equiv. 0.75 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0191-CZ Clevis Pins - 6.35x19.05x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 68 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per Each Quantity Required 68 Available Now. Backorder if more than 68.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 19.05 mm _{+ 0.51 / - 0.00} (Equiv. 0.75 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0191-CZ Clevis Pins - 6.35x19.05x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 68 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per Each Quantity Required 68 Available Now. Backorder if more than 68.
BLP-064-0191-CZ --- Clevis Pins - 6.35x19.05x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-064-0191-CZ --- Clevis Pins - 6.35x19.05x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.59 AUD Regular price Sale price $3.59 AUD Unit price per 68 Available Now
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 31.75 mm _{+ 0.51 / - 0.00} (Equiv. 1.25 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0318-CZ (2 Pcs) Clevis Pins - 6.35x31.75x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 17 units (34 pcs) Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $2.41 AUD Regular price ~~$4.36 AUD~~ Sale price $2.41 AUD Unit price per Per 2 Quantity Required 17 units (34 pcs) Available Now. Backorder if more than 17.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 31.75 mm _{+ 0.51 / - 0.00} (Equiv. 1.25 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0318-CZ (2 Pcs) Clevis Pins - 6.35x31.75x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 17 units (34 pcs) Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $2.41 AUD Regular price ~~$4.36 AUD~~ Sale price $2.41 AUD Unit price per Per 2 Quantity Required 17 units (34 pcs) Available Now. Backorder if more than 17.
BLP-064-0318-CZ (2 Pcs) --- Clevis Pins - 6.35x31.75x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0318-CZ (2 Pcs) --- Clevis Pins - 6.35x31.75x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.41 AUD Regular price ~~$4.36 AUD~~ Sale price $2.41 AUD Unit price per 17 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 44.45 mm _{+ 0.51 / - 0.00} (Equiv. 1.75 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0445-CZ Clevis Pins - 6.35x44.45x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 96 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per Each Quantity Required 96 Available Now. Backorder if more than 96.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 44.45 mm _{+ 0.51 / - 0.00} (Equiv. 1.75 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0445-CZ Clevis Pins - 6.35x44.45x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 96 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per Each Quantity Required 96 Available Now. Backorder if more than 96.
BLP-064-0445-CZ --- Clevis Pins - 6.35x44.45x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-064-0445-CZ --- Clevis Pins - 6.35x44.45x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per 96 Available Now
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 57.15 mm _{+ 0.51 / - 0.00} (Equiv. 2.25 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0572-CZ Clevis Pins - 6.35x57.15x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 9 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $1.86 AUD Regular price ~~$3.32 AUD~~ Sale price $1.86 AUD Unit price per Each Quantity Required 9 Available Now. Backorder if more than 9.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 57.15 mm _{+ 0.51 / - 0.00} (Equiv. 2.25 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0572-CZ Clevis Pins - 6.35x57.15x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 9 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $1.86 AUD Regular price ~~$3.32 AUD~~ Sale price $1.86 AUD Unit price per Each Quantity Required 9 Available Now. Backorder if more than 9.
BLP-064-0572-CZ --- Clevis Pins - 6.35x57.15x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0572-CZ --- Clevis Pins - 6.35x57.15x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $1.86 AUD Regular price ~~$3.32 AUD~~ Sale price $1.86 AUD Unit price per 9 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 69.85 mm _{+ 0.51 / - 0.00} (Equiv. 2.75 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0699-CZ Clevis Pins - 6.35x69.85x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 91 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $1.95 AUD Regular price ~~$3.52 AUD~~ Sale price $1.95 AUD Unit price per Each Quantity Required 91 Available Now. Backorder if more than 91.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 69.85 mm _{+ 0.51 / - 0.00} (Equiv. 2.75 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0699-CZ Clevis Pins - 6.35x69.85x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 91 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $1.95 AUD Regular price ~~$3.52 AUD~~ Sale price $1.95 AUD Unit price per Each Quantity Required 91 Available Now. Backorder if more than 91.
BLP-064-0699-CZ --- Clevis Pins - 6.35x69.85x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0699-CZ --- Clevis Pins - 6.35x69.85x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $1.95 AUD Regular price ~~$3.52 AUD~~ Sale price $1.95 AUD Unit price per 91 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 82.55 mm _{+ 0.51 / - 0.00} (Equiv. 3.25 in.)	Nom. Length (L) 88.90 mm _{+ 0.51 / - 0.00} (Equiv. 3.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0826-CZ Clevis Pins - 6.35x82.55x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 98 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $2.32 AUD Regular price ~~$4.02 AUD~~ Sale price $2.32 AUD Unit price per Each Quantity Required 98 Available Now. Backorder if more than 98.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 82.55 mm _{+ 0.51 / - 0.00} (Equiv. 3.25 in.)	Nom. Length (L) 88.90 mm _{+ 0.51 / - 0.00} (Equiv. 3.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0826-CZ Clevis Pins - 6.35x82.55x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 98 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $2.32 AUD Regular price ~~$4.02 AUD~~ Sale price $2.32 AUD Unit price per Each Quantity Required 98 Available Now. Backorder if more than 98.
BLP-064-0826-CZ --- Clevis Pins - 6.35x82.55x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0826-CZ --- Clevis Pins - 6.35x82.55x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.32 AUD Regular price ~~$4.02 AUD~~ Sale price $2.32 AUD Unit price per 98 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 95.25 mm _{+ 0.51 / - 0.00} (Equiv. 3.75 in.)	Nom. Length (L) 101.60 mm _{+ 0.51 / - 0.00} (Equiv. 4 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0953-CZ Clevis Pins - 6.35x95.25x101.6 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 20 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $2.50 AUD Regular price ~~$4.39 AUD~~ Sale price $2.50 AUD Unit price per Each Quantity Required 20 Available Now. Backorder if more than 20.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 95.25 mm _{+ 0.51 / - 0.00} (Equiv. 3.75 in.)	Nom. Length (L) 101.60 mm _{+ 0.51 / - 0.00} (Equiv. 4 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-0953-CZ Clevis Pins - 6.35x95.25x101.6 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 20 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $2.50 AUD Regular price ~~$4.39 AUD~~ Sale price $2.50 AUD Unit price per Each Quantity Required 20 Available Now. Backorder if more than 20.
BLP-064-0953-CZ --- Clevis Pins - 6.35x95.25x101.6 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-0953-CZ --- Clevis Pins - 6.35x95.25x101.6 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.50 AUD Regular price ~~$4.39 AUD~~ Sale price $2.50 AUD Unit price per 20 Available Now Sale
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 120.65 mm _{+ 0.51 / - 0.00} (Equiv. 4.75 in.)	Nom. Length (L) 127.00 mm _{+ 0.51 / - 0.00} (Equiv. 5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-1207-CZ Clevis Pins - 6.35x120.65x127 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 15 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $2.86 AUD Regular price ~~$4.99 AUD~~ Sale price $2.86 AUD Unit price per Each Quantity Required 15 Available Now. Backorder if more than 15.
Nominal Pin Diameter (A) 6.35 mm _{- 0.05 / - 0.18} (Equiv. 0.25 in.)	Grip Length (EL) 120.65 mm _{+ 0.51 / - 0.00} (Equiv. 4.75 in.)	Nom. Length (L) 127.00 mm _{+ 0.51 / - 0.00} (Equiv. 5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 6.35 mm Open Ball Distance (B): 0.51 to 0.64 mm
Part Number: BLP-064-1207-CZ Clevis Pins - 6.35x120.65x127 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 15 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $2.86 AUD Regular price ~~$4.99 AUD~~ Sale price $2.86 AUD Unit price per Each Quantity Required 15 Available Now. Backorder if more than 15.
BLP-064-1207-CZ --- Clevis Pins - 6.35x120.65x127 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-064-1207-CZ --- Clevis Pins - 6.35x120.65x127 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.86 AUD Regular price ~~$4.99 AUD~~ Sale price $2.86 AUD Unit price per 15 Available Now Sale
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 15.87 mm _{+ 0.51 / - 0.00} (Equiv. 0.625 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0159-CZ (2 Pcs) Clevis Pins - 7.94x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 units (20 pcs) Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.05 AUD Regular price ~~$5.60 AUD~~ Sale price $3.05 AUD Unit price per Per 2 Quantity Required 10 units (20 pcs) Available Now. Backorder if more than 10.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 15.87 mm _{+ 0.51 / - 0.00} (Equiv. 0.625 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0159-CZ (2 Pcs) Clevis Pins - 7.94x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 units (20 pcs) Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $3.05 AUD Regular price ~~$5.60 AUD~~ Sale price $3.05 AUD Unit price per Per 2 Quantity Required 10 units (20 pcs) Available Now. Backorder if more than 10.
BLP-079-0159-CZ (2 Pcs) --- Clevis Pins - 7.94x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-079-0159-CZ (2 Pcs) --- Clevis Pins - 7.94x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.05 AUD Regular price ~~$5.60 AUD~~ Sale price $3.05 AUD Unit price per 10 Available Now Sale
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 28.58 mm _{+ 0.51 / - 0.00} (Equiv. 1.125 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0286-CZ Clevis Pins - 7.94x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 28.58 mm _{+ 0.51 / - 0.00} (Equiv. 1.125 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0286-CZ Clevis Pins - 7.94x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
BLP-079-0286-CZ --- Clevis Pins - 7.94x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-079-0286-CZ --- Clevis Pins - 7.94x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per 10 Available Now
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 41.27 mm _{+ 0.51 / - 0.00} (Equiv. 1.625 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0413-CZ Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 6 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 41.27 mm _{+ 0.51 / - 0.00} (Equiv. 1.625 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0413-CZ Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 6 Available Now \| Further orders can be expected around Fri, Apr 24, 2026 Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
BLP-079-0413-CZ --- Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-079-0413-CZ --- Clevis Pins - 7.94x41.27x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $4.32 AUD Regular price Sale price $4.32 AUD Unit price per 6 Available Now
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 53.97 mm _{+ 0.51 / - 0.00} (Equiv. 2.125 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0540-CZ (3 Pcs) Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $7.05 AUD Regular price ~~$8.45 AUD~~ Sale price $7.05 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 53.97 mm _{+ 0.51 / - 0.00} (Equiv. 2.125 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0540-CZ (3 Pcs) Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $7.05 AUD Regular price ~~$8.45 AUD~~ Sale price $7.05 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
BLP-079-0540-CZ (3 Pcs) --- Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-079-0540-CZ (3 Pcs) --- Clevis Pins - 7.94x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $7.05 AUD Regular price ~~$8.45 AUD~~ Sale price $7.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 66.68 mm _{+ 0.51 / - 0.00} (Equiv. 2.625 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0667-CZ Clevis Pins - 7.94x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 45 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Each Quantity Required 45 Available Now. Backorder if more than 45.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 66.68 mm _{+ 0.51 / - 0.00} (Equiv. 2.625 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0667-CZ Clevis Pins - 7.94x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 45 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Each Quantity Required 45 Available Now. Backorder if more than 45.
BLP-079-0667-CZ --- Clevis Pins - 7.94x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-079-0667-CZ --- Clevis Pins - 7.94x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 45 Available Now
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 79.37 mm _{+ 0.51 / - 0.00} (Equiv. 3.125 in.)	Nom. Length (L) 88.90 mm _{+ 0.51 / - 0.00} (Equiv. 3.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0794-CZ Clevis Pins - 7.94x79.37x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.32 AUD Regular price ~~$5.22 AUD~~ Sale price $2.32 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Pin Diameter (A) 7.94 mm _{- 0.05 / - 0.18} (Equiv. 0.313 in.)	Grip Length (EL) 79.37 mm _{+ 0.51 / - 0.00} (Equiv. 3.125 in.)	Nom. Length (L) 88.90 mm _{+ 0.51 / - 0.00} (Equiv. 3.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-079-0794-CZ Clevis Pins - 7.94x79.37x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 1 Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.32 AUD Regular price ~~$5.22 AUD~~ Sale price $2.32 AUD Unit price per Each Quantity Required 1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
BLP-079-0794-CZ --- Clevis Pins - 7.94x79.37x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-079-0794-CZ --- Clevis Pins - 7.94x79.37x88.9 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.32 AUD Regular price ~~$5.22 AUD~~ Sale price $2.32 AUD Unit price per 1 Available Now Sale
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 15.87 mm _{+ 0.51 / - 0.00} (Equiv. 0.625 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-095-0159-CZ Clevis Pins - 9.53x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 15.87 mm _{+ 0.51 / - 0.00} (Equiv. 0.625 in.)	Nom. Length (L) 25.40 mm _{+ 0.51 / - 0.00} (Equiv. 1 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.64 to 0.76 mm
Part Number: BLP-095-0159-CZ Clevis Pins - 9.53x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-095-0159-CZ --- Clevis Pins - 9.53x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-095-0159-CZ --- Clevis Pins - 9.53x15.87x25.4 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $3.41 AUD Regular price Sale price $3.41 AUD Unit price per Out of stock! Backorder Now
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 28.58 mm _{+ 0.51 / - 0.00} (Equiv. 1.125 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm
Part Number: BLP-095-0286-CZ Clevis Pins - 9.53x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $2.32 AUD Regular price ~~$4.09 AUD~~ Sale price $2.32 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 28.58 mm _{+ 0.51 / - 0.00} (Equiv. 1.125 in.)	Nom. Length (L) 38.10 mm _{+ 0.51 / - 0.00} (Equiv. 1.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm
Part Number: BLP-095-0286-CZ Clevis Pins - 9.53x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 10 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $2.32 AUD Regular price ~~$4.09 AUD~~ Sale price $2.32 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
BLP-095-0286-CZ --- Clevis Pins - 9.53x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-095-0286-CZ --- Clevis Pins - 9.53x28.58x38.1 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $2.32 AUD Regular price ~~$4.09 AUD~~ Sale price $2.32 AUD Unit price per 10 Available Now Sale
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 41.28 mm _{+ 0.51 / - 0.00} (Equiv. 1.625 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm
Part Number: BLP-095-0413-CZ Clevis Pins - 9.53x41.28x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 80 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each Quantity Required 80 Available Now. Backorder if more than 80.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 41.28 mm _{+ 0.51 / - 0.00} (Equiv. 1.625 in.)	Nom. Length (L) 50.80 mm _{+ 0.51 / - 0.00} (Equiv. 2 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm
Part Number: BLP-095-0413-CZ Clevis Pins - 9.53x41.28x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 80 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per Each Quantity Required 80 Available Now. Backorder if more than 80.
BLP-095-0413-CZ --- Clevis Pins - 9.53x41.28x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-095-0413-CZ --- Clevis Pins - 9.53x41.28x50.8 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $5.77 AUD Regular price Sale price $5.77 AUD Unit price per 80 Available Now
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 53.97 mm _{+ 0.51 / - 0.00} (Equiv. 2.125 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm
Part Number: BLP-095-0540-CZ (3 Pcs) Clevis Pins - 9.53x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 53.97 mm _{+ 0.51 / - 0.00} (Equiv. 2.125 in.)	Nom. Length (L) 63.50 mm _{+ 0.51 / - 0.00} (Equiv. 2.5 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm
Part Number: BLP-095-0540-CZ (3 Pcs) Clevis Pins - 9.53x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 22, 2025 Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Per 3 Quantity Required Backorder: Out of Stock.
BLP-095-0540-CZ (3 Pcs) --- Clevis Pins - 9.53x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Sale BLP-095-0540-CZ (3 Pcs) --- Clevis Pins - 9.53x53.97x63.5 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 66.68 mm _{+ 0.51 / - 0.00} (Equiv. 2.625 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm
Part Number: BLP-095-0667-CZ Clevis Pins - 9.53x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 40 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Each Quantity Required 40 Available Now. Backorder if more than 40.
Nominal Pin Diameter (A) 9.53 mm _{- 0.05 / - 0.18} (Equiv. 0.375 in.)	Grip Length (EL) 66.68 mm _{+ 0.51 / - 0.00} (Equiv. 2.625 in.)	Nom. Length (L) 76.20 mm _{+ 0.51 / - 0.00} (Equiv. 3 in.)
Material: Zinc Plated Low Carbon Steel Locking Ball to End (C): 9.53 mm Open Ball Distance (B): 0.76 to 1.0 mm
Part Number: BLP-095-0667-CZ Clevis Pins - 9.53x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin 40 Available Now \| Further orders can be expected around Mon, Sep 22, 2025 Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per Each Quantity Required 40 Available Now. Backorder if more than 40.
BLP-095-0667-CZ --- Clevis Pins - 9.53x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin BLP-095-0667-CZ --- Clevis Pins - 9.53x66.68x76.2 mm Self Locking Zinc Plated - Zinc Plated Low Carbon Steel Pin Regular price $8.32 AUD Regular price Sale price $8.32 AUD Unit price per 40 Available Now

Country/region

Collection: Pins - Clevis - Self Locking Zinc Plated

Category Details

Filter

Filter

Subscribe to our emails
