BLP-079-0317-BT-S17 (Each)

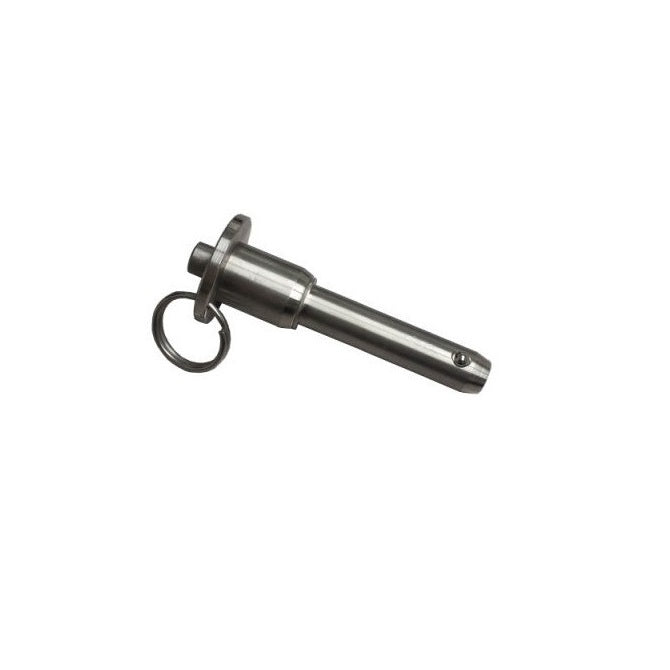

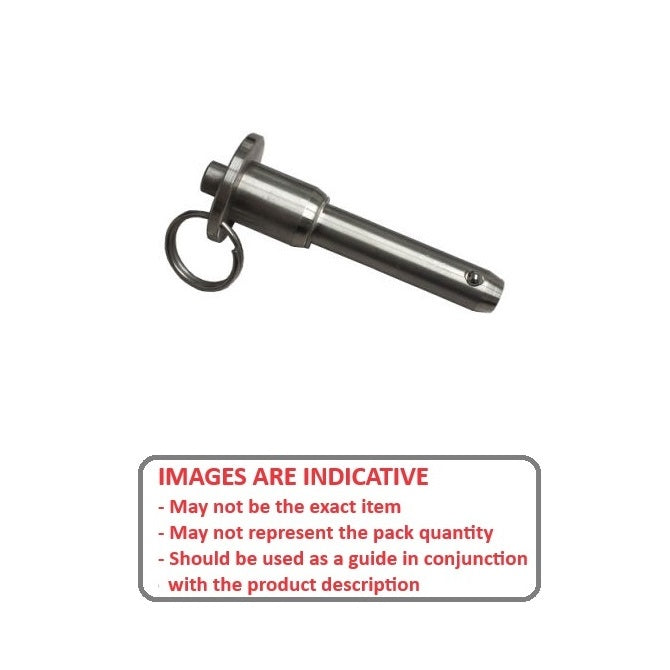

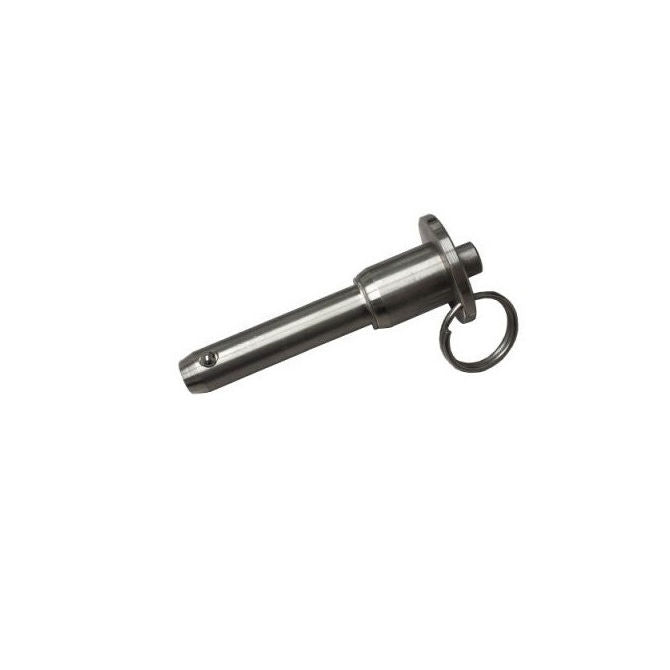

Ball Lock Pins - 7.94x31.75 mm - 17-4 PH Stainless / Aluminium Handle Button Handle Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Order 50 or more
for $65.83 AUD Each
5/16x1-1/4 inch Pin - 7.94x31.75 mm - 17-4 PH Stainless / Aluminium Handle Ball Lock Pins - Stainless Steel 17-4 PH with Aluminium Handle - Sold per Each:
Base Category: Pins - Ball Lock
Top Level Category: Pins - Ball Lock - Button Handle - Industrial Stainless Steel
Product Details

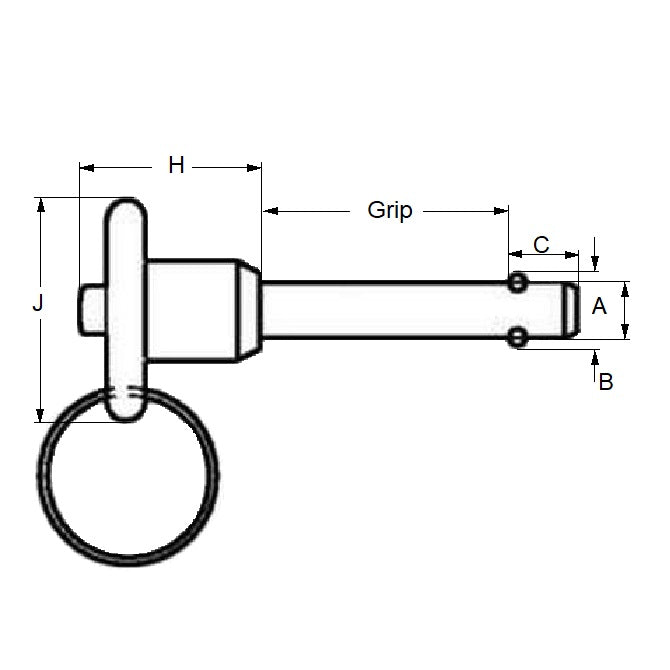

Nominal Diameter: 7.94mm(7.94mm is 0.313 in.)
Stainless Steel 17-4 PH with Aluminium Handle
- Nominal Diameter: 7.94mm
(7.94mm is 0.313 in.)
- Grip Length (B): 31.75mm
(31.75mm is 1.25 in.)
- Pin Material Grade: 17-4 PH Stainless / Aluminium Handle
- Locking Ball to End (C): 8.38mm
- Open Ball Distance (B): 9.52mm
- Ring Diameter (F): 26.92mm
- Handle Length (R): 23.62mm
- Pull Out Strength: 230.00Kg
- Calc. Double Shear Strength: 6516Kg
- Max. Diameter: 7.89mm
- Min. Diameter: 7.86mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® BLBS-0515
- Reid Tool® BLBS-0515A
- BLBS0515A
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLP0790317BTS17, BLP0790317
