REF-079-R-CT-A (Each)

Female Rod Ends - 7.938 - mm - 5/16-24 UNF Right - Steel with PTFE lined Raceway Rod End

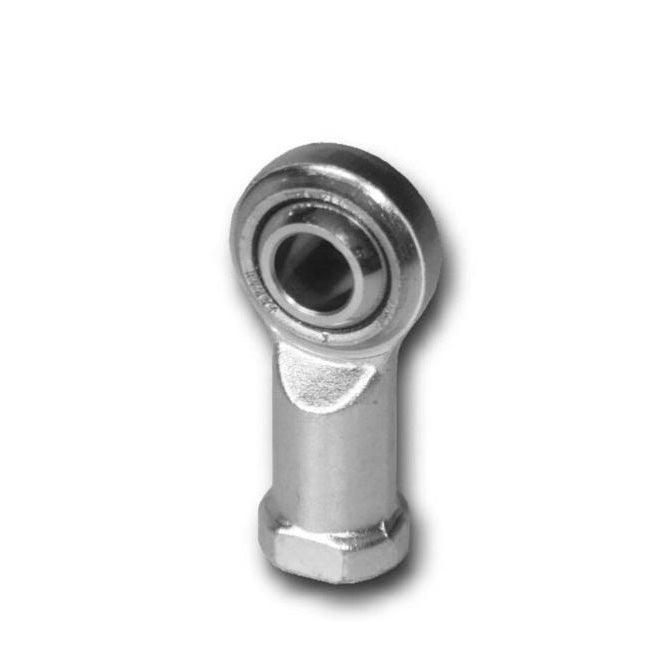

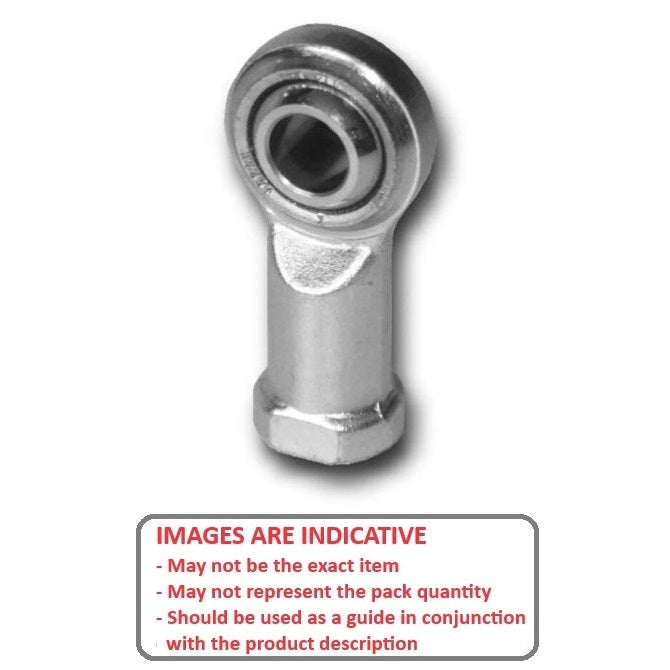

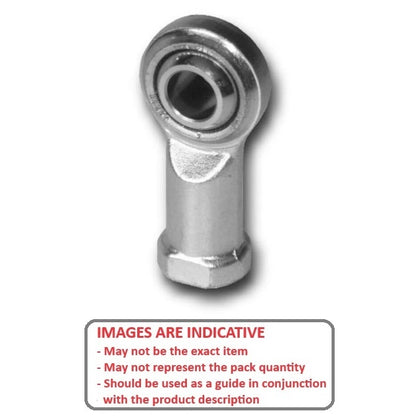

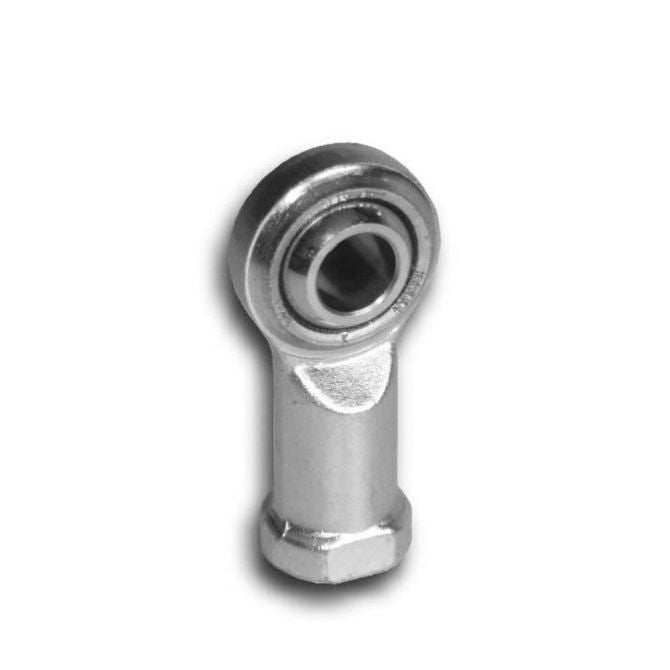

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Female Rod Ends - 7.938 - mm - 5/16-24 UNF Right - Steel with PTFE lined Raceway
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$28.59 AUD
$34.31 AUD $28.59 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $25.73 AUD Each
Backorder now! Backorders are expected before Jun 27, 2026

Base Category: Rod Ends - Female

Top Level Category: Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit

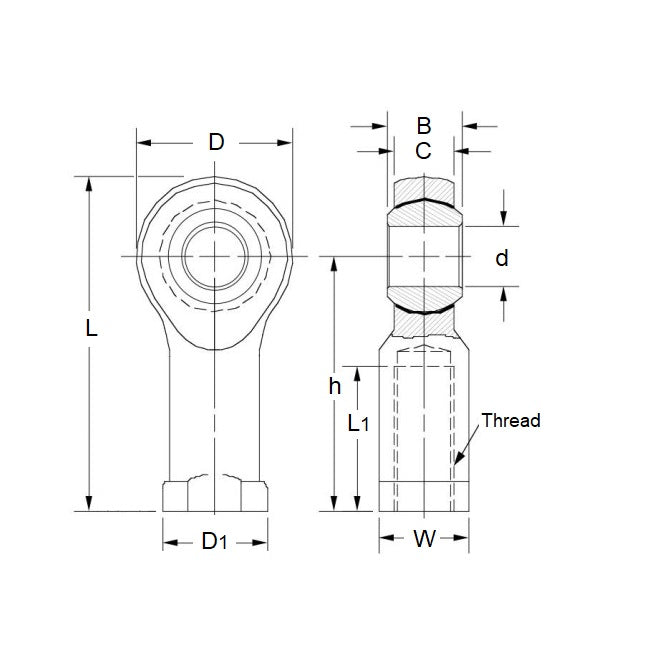

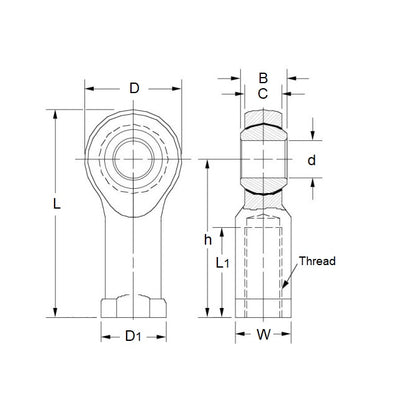

Product Details

Eye Size (d1): 7.938mm
(7.938mm is 0.313 in.)

Steel with PTFE lined Raceway
  • Eye Size (d1): 7.938mm
    (7.938mm is 0.313 in.)
  • Overall Length (L): -mm
  • Thread Size: 5/16-24 UNF Right
  • Thread Length (l2): 17.45mm
  • Head Width (W): 8.73mm
  • Eye Width (W1): 11.11mm
  • Head Diameter (D): 22.23mm
  • Centre Height (l1): 34.93mm
  • Body Width/Flange Width(W2/D3): 11.11 / 12.70mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 2458K33-RIGHT
  • Reid Tool® EF-5T
  • 2458K33RIGHT
  • EF5T

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
REF079
View full details
