CSC-075-017-07-M

Conical Springs - 7.5x17.5x5.2 mm - Spring Steel Music Wire

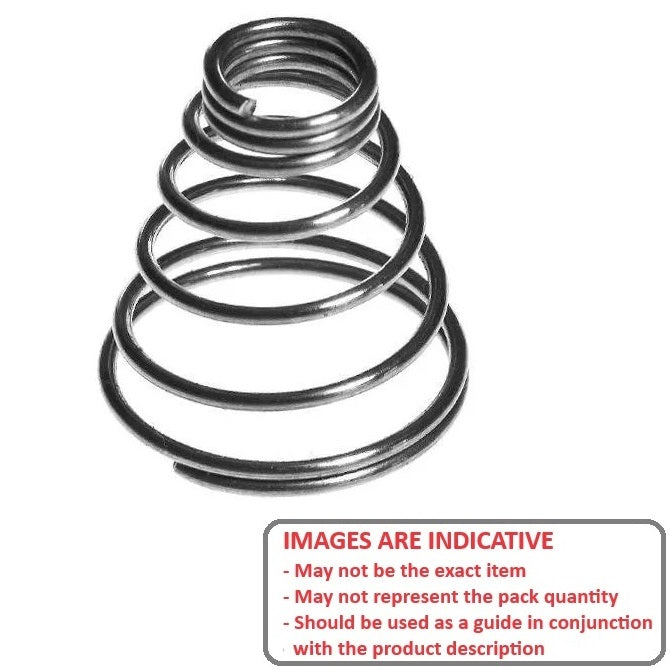

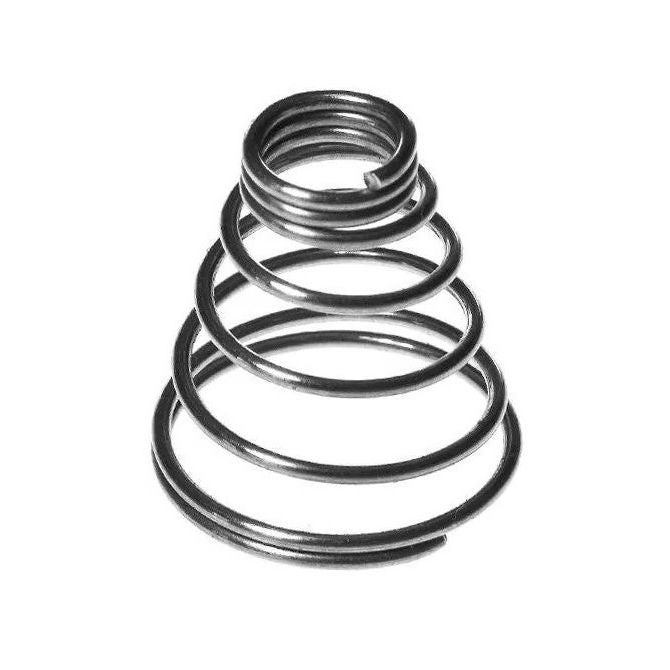

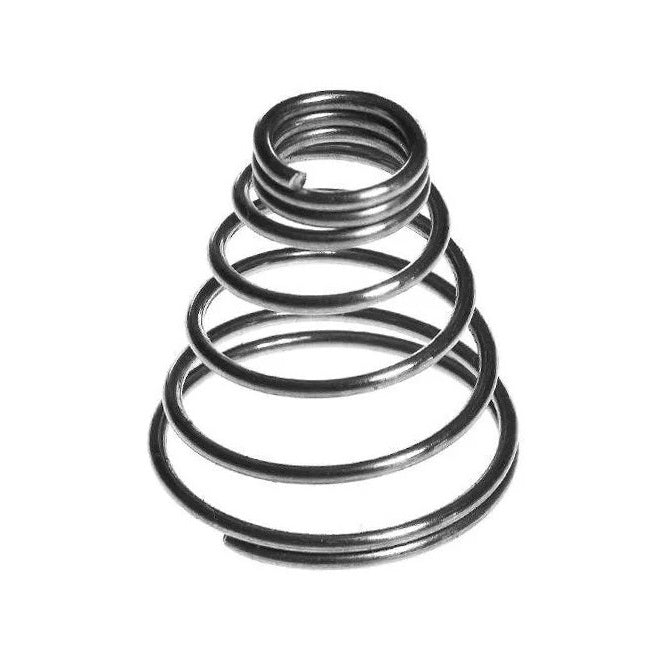

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Category: Springs - Conical
Additional resources:
Spings Catalogue PDF
Price:
$6.14 AUD
$6.14 AUD
Each
Qty: 17 available now
Order 50 or more for $5.53 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before May 01, 2025

Base Category: Springs - Conical

Top Level Category: Springs - Conical

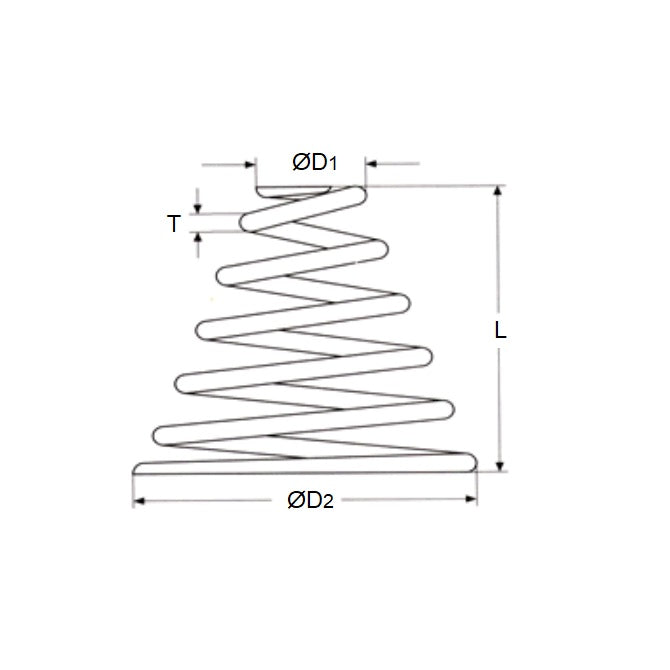

Product Details:

Large End OD: 7.50mm
Spring Steel Music Wire
  • Free Length: 17.5mm
  • Small End OD: 5.2mm
  • Inside Diameter Clearance: 3.8mm
  • Wire Thickness: 0.69mm
  • Rate: 0.2kg/mm
  • Inside Diameter: 3.8mm

Brand: MBA
Country of Origin: US

Alternative Parts Include: CX-7

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
