DB060-077-200 (Pack of 10)

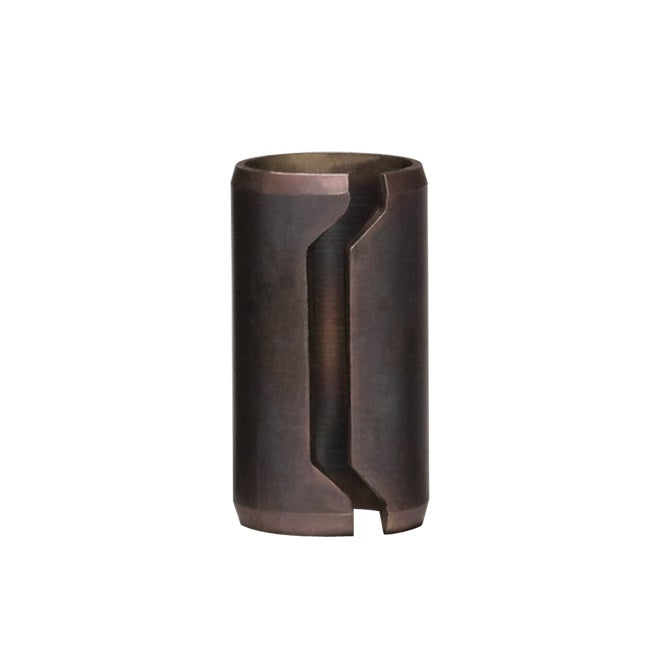

Dowel Bushings Pins - 6x20x7.67 mm - Carbon Steel Pin
NoCor
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleDowel Pins Catalogue PDF
Master Pins Catalogue PDF
Order 50 or more packs of 10 (500 pcs)
for $4.37 AUD per 10 pack
Couldn't load pickup availability
6x20x7.67 mm Dowel Bushings Pins - Carbon Steel - Sold Per 10:
Base Category: Pins - Dowel Bushings
Top Level Category: Pins - Dowel Bushings
Product Details
Suitable Bolt Size: 6.00mm(6.00mm is 0.236 in.)
Carbon Steel
- Suitable Bolt Size: 6.00mm
(6.00mm is 0.236 in.)
- Length : 20.00mm
+ 0.0 / - 1.0
(20.00mm is 0.787 in.)
- Rec. Hole Diameter Min: 7.67mm
(7.67mm is 0.302 in.)

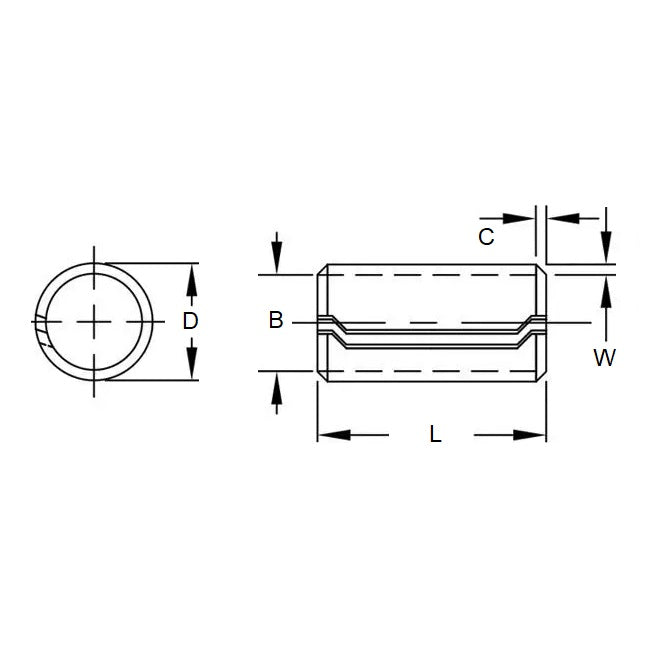

- Unassembled Diameter (D) Min: 7.92mm
- Unassembled Diameter (D) Max: 8.18mm
- Wall Thickness: 0.71mm
- Rec. Hole Diameter Max: 7.80mm
- Minimum Single Shear: 11.40kN
Brand: NoCor
Country of Origin: DE
Product Compliance and Data
Similar to
- DB6-19
- DB619
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
DB060077200, DB060077
