Pins - Dowel Bushings

Pins -> Dowel Bushings

There are 15 products in the sub-categories of Pins - Dowel Bushings. Browse the Pins - Dowel Bushings products table.

Category Details

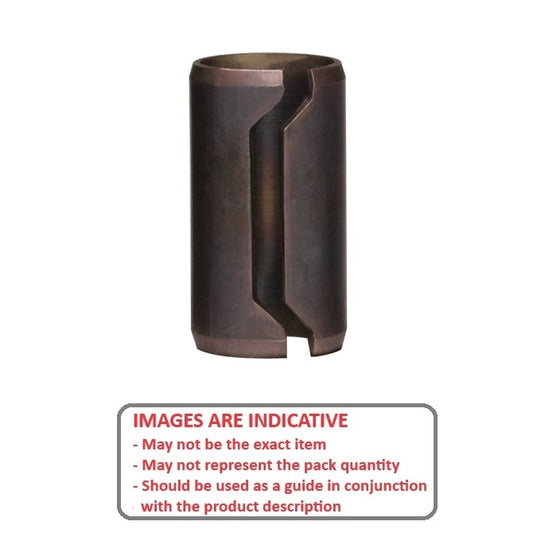

A selection of Dowel Bushings Pins. Series DB100 Spirol

  • An expanded range may be available on special order. Please enquire.
  • Spring Steel.
  • Precision rolled bushes manufactured from spring steel.
  • Designed to eliminate the need for separate dowling where two components are to be located accurately together and fastened with bolts.
  • They are available for use with bolts from M5 to M12.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Dowel Bushings category on the Small Parts & Bearings online store.
Suitable Bolt Size Length Rec. Hole Diameter Min Unassembled Diameter (D) Min Unassembled Diameter (D) Max Indicative
Suitable Bolt Size
5.00
mm

(Equiv. 0.197 in.)
Length
10.00
mm
+ 0.0 / - 1.0
(Equiv. 0.394 in.)
Rec. Hole Diameter Min
6.35
mm

(Equiv. 0.25 in.)
Unassembled Diameter (D) Min
6.60
mm
Unassembled Diameter (D) Max
6.86
mm
Dowel Bushings Pins - 5x10x6.35 mm
Wall Thickness: 0.56 mm    Rec. Hole Diameter Max: 6.48 mm    Minimum Single Shear: 17.40 kN
Part Number: DB050-064-100
Dowel Bushings Pins - 5x10x6.35 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size Length Rec. Hole Diameter Min Indicative
Suitable Bolt Size
5.00
mm

(Equiv. 0.197 in.)
Length
10.00
mm
+ 0.0 / - 1.0
(Equiv. 0.394 in.)
Rec. Hole Diameter Min
6.35
mm

(Equiv. 0.25 in.)
Dowel Bushings Pins - 5x10x6.35 mm
Unassembled Diameter (D) Min: 6.60 mm    Unassembled Diameter (D) Max: 6.86 mm    Wall Thickness: 0.56 mm    Rec. Hole Diameter Max: 6.48 mm    Minimum Single Shear: 17.40 kN
Part Number: DB050-064-100
Dowel Bushings Pins - 5x10x6.35 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
5.00
mm

(Equiv. 0.197 in.)
Length
12.00
mm
+ 0.0 / - 1.0
(Equiv. 0.472 in.)
Rec. Hole Diameter Min
6.35
mm

(Equiv. 0.25 in.)
Unassembled Diameter (D) Min
6.60
mm
Unassembled Diameter (D) Max
6.86
mm
Dowel Bushings Pins - 5x12x6.35 mm
Wall Thickness: 0.56 mm    Rec. Hole Diameter Max: 6.48 mm    Minimum Single Shear: 17.40 kN
Part Number: DB050-064-120 (3 Pcs)
Dowel Bushings Pins - 5x12x6.35 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
5.00
mm

(Equiv. 0.197 in.)
Length
12.00
mm
+ 0.0 / - 1.0
(Equiv. 0.472 in.)
Rec. Hole Diameter Min
6.35
mm

(Equiv. 0.25 in.)
Dowel Bushings Pins - 5x12x6.35 mm
Unassembled Diameter (D) Min: 6.60 mm    Unassembled Diameter (D) Max: 6.86 mm    Wall Thickness: 0.56 mm    Rec. Hole Diameter Max: 6.48 mm    Minimum Single Shear: 17.40 kN
Part Number: DB050-064-120 (3 Pcs)
Dowel Bushings Pins - 5x12x6.35 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
5.00
mm

(Equiv. 0.197 in.)
Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.)
Rec. Hole Diameter Min
6.35
mm

(Equiv. 0.25 in.)
Unassembled Diameter (D) Min
6.60
mm
Unassembled Diameter (D) Max
6.86
mm
Dowel Bushings Pins - 5x20x6.35 mm
Wall Thickness: 0.56 mm    Rec. Hole Diameter Max: 6.48 mm    Minimum Single Shear: 17.40 kN
Part Number: DB050-064-200
Dowel Bushings Pins - 5x20x6.35 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
5.00
mm

(Equiv. 0.197 in.)
Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.)
Rec. Hole Diameter Min
6.35
mm

(Equiv. 0.25 in.)
Dowel Bushings Pins - 5x20x6.35 mm
Unassembled Diameter (D) Min: 6.60 mm    Unassembled Diameter (D) Max: 6.86 mm    Wall Thickness: 0.56 mm    Rec. Hole Diameter Max: 6.48 mm    Minimum Single Shear: 17.40 kN
Part Number: DB050-064-200
Dowel Bushings Pins - 5x20x6.35 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
6.00
mm

(Equiv. 0.236 in.)
Length
12.00
mm
+ 0.0 / - 1.0
(Equiv. 0.472 in.)
Rec. Hole Diameter Min
7.67
mm

(Equiv. 0.302 in.)
Unassembled Diameter (D) Min
7.92
mm
Unassembled Diameter (D) Max
8.18
mm
Dowel Bushings Pins - 6x12x7.67 mm
Wall Thickness: 0.71 mm    Rec. Hole Diameter Max: 7.80 mm    Minimum Single Shear: 11.40 kN
Part Number: DB060-077-120
Dowel Bushings Pins - 6x12x7.67 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
6.00
mm

(Equiv. 0.236 in.)
Length
12.00
mm
+ 0.0 / - 1.0
(Equiv. 0.472 in.)
Rec. Hole Diameter Min
7.67
mm

(Equiv. 0.302 in.)
Dowel Bushings Pins - 6x12x7.67 mm
Unassembled Diameter (D) Min: 7.92 mm    Unassembled Diameter (D) Max: 8.18 mm    Wall Thickness: 0.71 mm    Rec. Hole Diameter Max: 7.80 mm    Minimum Single Shear: 11.40 kN
Part Number: DB060-077-120
Dowel Bushings Pins - 6x12x7.67 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
6.00
mm

(Equiv. 0.236 in.)
Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.)
Rec. Hole Diameter Min
7.67
mm

(Equiv. 0.302 in.)
Unassembled Diameter (D) Min
7.92
mm
Unassembled Diameter (D) Max
8.18
mm
Dowel Bushings Pins - 6x20x7.67 mm - Carbon Steel Pin
Material: Carbon Steel    Wall Thickness: 0.71 mm    Rec. Hole Diameter Max: 7.80 mm    Minimum Single Shear: 11.40 kN
Part Number: DB060-077-200 (10 Pcs)
Dowel Bushings Pins - 6x20x7.67 mm - Carbon Steel Pin
493 units (4930 pcs) Available Now | Further orders can be expected around Sun, Nov 02, 2025
$4.86 AUD
$4.86 AUD
Per 10
Quantity Required

493 units (4930 pcs) Available Now. Backorder if more than 493.
Suitable Bolt Size
6.00
mm

(Equiv. 0.236 in.)
Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.)
Rec. Hole Diameter Min
7.67
mm

(Equiv. 0.302 in.)
Dowel Bushings Pins - 6x20x7.67 mm - Carbon Steel Pin
Material: Carbon Steel    Unassembled Diameter (D) Min: 7.92 mm    Unassembled Diameter (D) Max: 8.18 mm    Wall Thickness: 0.71 mm    Rec. Hole Diameter Max: 7.80 mm    Minimum Single Shear: 11.40 kN
Part Number: DB060-077-200 (10 Pcs)
Dowel Bushings Pins - 6x20x7.67 mm - Carbon Steel Pin
493 units (4930 pcs) Available Now | Further orders can be expected around Sun, Nov 02, 2025
$4.86 AUD
$4.86 AUD
Per 10
Quantity Required

493 units (4930 pcs) Available Now. Backorder if more than 493.
Suitable Bolt Size
6.00
mm

(Equiv. 0.236 in.)
Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.)
Rec. Hole Diameter Min
7.67
mm

(Equiv. 0.302 in.)
Unassembled Diameter (D) Min
7.92
mm
Unassembled Diameter (D) Max
8.18
mm
Dowel Bushings Pins - 6x25x7.67 mm
Wall Thickness: 0.71 mm    Rec. Hole Diameter Max: 7.80 mm    Minimum Single Shear: 11.40 kN
Part Number: DB060-077-250
Dowel Bushings Pins - 6x25x7.67 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
6.00
mm

(Equiv. 0.236 in.)
Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.)
Rec. Hole Diameter Min
7.67
mm

(Equiv. 0.302 in.)
Dowel Bushings Pins - 6x25x7.67 mm
Unassembled Diameter (D) Min: 7.92 mm    Unassembled Diameter (D) Max: 8.18 mm    Wall Thickness: 0.71 mm    Rec. Hole Diameter Max: 7.80 mm    Minimum Single Shear: 11.40 kN
Part Number: DB060-077-250
Dowel Bushings Pins - 6x25x7.67 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Length
12.00
mm
+ 0.0 / - 1.0
(Equiv. 0.472 in.)
Rec. Hole Diameter Min
9.93
mm

(Equiv. 0.391 in.)
Unassembled Diameter (D) Min
10.18
mm
Unassembled Diameter (D) Max
10.44
mm
Dowel Bushings Pins - 8x12x9.93 mm
Wall Thickness: 0.89 mm    Rec. Hole Diameter Max: 10.06 mm    Minimum Single Shear: 18.70 kN
Part Number: DB080-099-120
Dowel Bushings Pins - 8x12x9.93 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Length
12.00
mm
+ 0.0 / - 1.0
(Equiv. 0.472 in.)
Rec. Hole Diameter Min
9.93
mm

(Equiv. 0.391 in.)
Dowel Bushings Pins - 8x12x9.93 mm
Unassembled Diameter (D) Min: 10.18 mm    Unassembled Diameter (D) Max: 10.44 mm    Wall Thickness: 0.89 mm    Rec. Hole Diameter Max: 10.06 mm    Minimum Single Shear: 18.70 kN
Part Number: DB080-099-120
Dowel Bushings Pins - 8x12x9.93 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.)
Rec. Hole Diameter Min
9.93
mm

(Equiv. 0.391 in.)
Unassembled Diameter (D) Min
10.18
mm
Unassembled Diameter (D) Max
10.44
mm
1080889 | DB080-099-200 (10 Pcs) --- Dowel Bushings Pins - 8x20x9.93 mm - Carbon Steel Pin
Material: Carbon Steel    Wall Thickness: 0.89 mm    Rec. Hole Diameter Max: 10.06 mm    Minimum Single Shear: 18.70 kN
Part Number: DB080-099-200 (10 Pcs)
Dowel Bushings Pins - 8x20x9.93 mm - Carbon Steel Pin
38 units (380 pcs) Available Now | Further orders can be expected around Sun, Nov 02, 2025
$21.77 AUD
$21.77 AUD
Per 10
Quantity Required

38 units (380 pcs) Available Now. Backorder if more than 38.
Suitable Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.)
Rec. Hole Diameter Min
9.93
mm

(Equiv. 0.391 in.)
1080889 | DB080-099-200 (10 Pcs) --- Dowel Bushings Pins - 8x20x9.93 mm - Carbon Steel Pin
Material: Carbon Steel    Unassembled Diameter (D) Min: 10.18 mm    Unassembled Diameter (D) Max: 10.44 mm    Wall Thickness: 0.89 mm    Rec. Hole Diameter Max: 10.06 mm    Minimum Single Shear: 18.70 kN
Part Number: DB080-099-200 (10 Pcs)
Dowel Bushings Pins - 8x20x9.93 mm - Carbon Steel Pin
38 units (380 pcs) Available Now | Further orders can be expected around Sun, Nov 02, 2025
$21.77 AUD
$21.77 AUD
Per 10
Quantity Required

38 units (380 pcs) Available Now. Backorder if more than 38.
Suitable Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.)
Rec. Hole Diameter Min
9.93
mm

(Equiv. 0.391 in.)
Unassembled Diameter (D) Min
10.18
mm
Unassembled Diameter (D) Max
10.44
mm
Dowel Bushings Pins - 8x25x9.93 mm - Carbon Steel Pin
Material: Carbon Steel    Wall Thickness: 0.89 mm    Rec. Hole Diameter Max: 10.06 mm    Minimum Single Shear: 18.70 kN
Part Number: DB080-099-250
Dowel Bushings Pins - 8x25x9.93 mm - Carbon Steel Pin
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.)
Rec. Hole Diameter Min
9.93
mm

(Equiv. 0.391 in.)
Dowel Bushings Pins - 8x25x9.93 mm - Carbon Steel Pin
Material: Carbon Steel    Unassembled Diameter (D) Min: 10.18 mm    Unassembled Diameter (D) Max: 10.44 mm    Wall Thickness: 0.89 mm    Rec. Hole Diameter Max: 10.06 mm    Minimum Single Shear: 18.70 kN
Part Number: DB080-099-250
Dowel Bushings Pins - 8x25x9.93 mm - Carbon Steel Pin
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
10.00
mm

(Equiv. 0.394 in.)
Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.)
Rec. Hole Diameter Min
12.50
mm

(Equiv. 0.492 in.)
Unassembled Diameter (D) Min
12.75
mm
Unassembled Diameter (D) Max
13.01
mm
Dowel Bushings Pins - 10x20x12.5 mm - Carbon Steel Pin
Material: Carbon Steel    Wall Thickness: 1.07 mm    Rec. Hole Diameter Max: 12.63 mm    Minimum Single Shear: 28.50 kN
Part Number: DB100-125-200 (3 Pcs)
Dowel Bushings Pins - 10x20x12.5 mm - Carbon Steel Pin
1 pack (3 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.80 AUD
$7.22 AUD $3.80 AUD
Per 3
Quantity Required

1 pack (3 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
10.00
mm

(Equiv. 0.394 in.)
Length
20.00
mm
+ 0.0 / - 1.0
(Equiv. 0.787 in.)
Rec. Hole Diameter Min
12.50
mm

(Equiv. 0.492 in.)
Dowel Bushings Pins - 10x20x12.5 mm - Carbon Steel Pin
Material: Carbon Steel    Unassembled Diameter (D) Min: 12.75 mm    Unassembled Diameter (D) Max: 13.01 mm    Wall Thickness: 1.07 mm    Rec. Hole Diameter Max: 12.63 mm    Minimum Single Shear: 28.50 kN
Part Number: DB100-125-200 (3 Pcs)
Dowel Bushings Pins - 10x20x12.5 mm - Carbon Steel Pin
1 pack (3 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.80 AUD
$7.22 AUD $3.80 AUD
Per 3
Quantity Required

1 pack (3 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
10.00
mm

(Equiv. 0.394 in.)
Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.)
Rec. Hole Diameter Min
12.50
mm

(Equiv. 0.492 in.)
Unassembled Diameter (D) Min
12.75
mm
Unassembled Diameter (D) Max
13.01
mm
Dowel Bushings Pins - 10x25x12.5 mm
Wall Thickness: 1.07 mm    Rec. Hole Diameter Max: 12.63 mm    Minimum Single Shear: 28.50 kN
Part Number: DB100-125-250
Dowel Bushings Pins - 10x25x12.5 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
10.00
mm

(Equiv. 0.394 in.)
Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.)
Rec. Hole Diameter Min
12.50
mm

(Equiv. 0.492 in.)
Dowel Bushings Pins - 10x25x12.5 mm
Unassembled Diameter (D) Min: 12.75 mm    Unassembled Diameter (D) Max: 13.01 mm    Wall Thickness: 1.07 mm    Rec. Hole Diameter Max: 12.63 mm    Minimum Single Shear: 28.50 kN
Part Number: DB100-125-250
Dowel Bushings Pins - 10x25x12.5 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
10.00
mm

(Equiv. 0.394 in.)
Length
30.00
mm
+ 0.0 / - 1.0
(Equiv. 1.181 in.)
Rec. Hole Diameter Min
12.50
mm

(Equiv. 0.492 in.)
Unassembled Diameter (D) Min
12.75
mm
Unassembled Diameter (D) Max
13.01
mm
Dowel Bushings Pins - 10x30x12.5 mm
Wall Thickness: 1.07 mm    Rec. Hole Diameter Max: 12.63 mm    Minimum Single Shear: 28.50 kN
Part Number: DB100-125-300
Dowel Bushings Pins - 10x30x12.5 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
10.00
mm

(Equiv. 0.394 in.)
Length
30.00
mm
+ 0.0 / - 1.0
(Equiv. 1.181 in.)
Rec. Hole Diameter Min
12.50
mm

(Equiv. 0.492 in.)
Dowel Bushings Pins - 10x30x12.5 mm
Unassembled Diameter (D) Min: 12.75 mm    Unassembled Diameter (D) Max: 13.01 mm    Wall Thickness: 1.07 mm    Rec. Hole Diameter Max: 12.63 mm    Minimum Single Shear: 28.50 kN
Part Number: DB100-125-300
Dowel Bushings Pins - 10x30x12.5 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
12.00
mm

(Equiv. 0.472 in.)
Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.)
Rec. Hole Diameter Min
15.09
mm

(Equiv. 0.594 in.)
Unassembled Diameter (D) Min
15.34
mm
Unassembled Diameter (D) Max
15.60
mm
Dowel Bushings Pins - 12x25x15.09 mm
Wall Thickness: 1.45 mm    Rec. Hole Diameter Max: 15.22 mm    Minimum Single Shear: 46.50 kN
Part Number: DB120-151-250
Dowel Bushings Pins - 12x25x15.09 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
12.00
mm

(Equiv. 0.472 in.)
Length
25.00
mm
+ 0.0 / - 1.0
(Equiv. 0.984 in.)
Rec. Hole Diameter Min
15.09
mm

(Equiv. 0.594 in.)
Dowel Bushings Pins - 12x25x15.09 mm
Unassembled Diameter (D) Min: 15.34 mm    Unassembled Diameter (D) Max: 15.60 mm    Wall Thickness: 1.45 mm    Rec. Hole Diameter Max: 15.22 mm    Minimum Single Shear: 46.50 kN
Part Number: DB120-151-250
Dowel Bushings Pins - 12x25x15.09 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
12.00
mm

(Equiv. 0.472 in.)
Length
30.00
mm
+ 0.0 / - 1.0
(Equiv. 1.181 in.)
Rec. Hole Diameter Min
15.09
mm

(Equiv. 0.594 in.)
Unassembled Diameter (D) Min
15.34
mm
Unassembled Diameter (D) Max
15.60
mm
Dowel Bushings Pins - 12x30x15.09 mm
Wall Thickness: 1.45 mm    Rec. Hole Diameter Max: 15.22 mm    Minimum Single Shear: 46.50 kN
Part Number: DB120-151-300
Dowel Bushings Pins - 12x30x15.09 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
12.00
mm

(Equiv. 0.472 in.)
Length
30.00
mm
+ 0.0 / - 1.0
(Equiv. 1.181 in.)
Rec. Hole Diameter Min
15.09
mm

(Equiv. 0.594 in.)
Dowel Bushings Pins - 12x30x15.09 mm
Unassembled Diameter (D) Min: 15.34 mm    Unassembled Diameter (D) Max: 15.60 mm    Wall Thickness: 1.45 mm    Rec. Hole Diameter Max: 15.22 mm    Minimum Single Shear: 46.50 kN
Part Number: DB120-151-300
Dowel Bushings Pins - 12x30x15.09 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
12.00
mm

(Equiv. 0.472 in.)
Length
40.00
mm
+ 0.0 / - 1.0
(Equiv. 1.575 in.)
Rec. Hole Diameter Min
15.09
mm

(Equiv. 0.594 in.)
Unassembled Diameter (D) Min
15.34
mm
Unassembled Diameter (D) Max
15.60
mm
Dowel Bushings Pins - 12x40x15.09 mm
Wall Thickness: 1.45 mm    Rec. Hole Diameter Max: 15.22 mm    Minimum Single Shear: 46.50 kN
Part Number: DB120-151-400
Dowel Bushings Pins - 12x40x15.09 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Suitable Bolt Size
12.00
mm

(Equiv. 0.472 in.)
Length
40.00
mm
+ 0.0 / - 1.0
(Equiv. 1.575 in.)
Rec. Hole Diameter Min
15.09
mm

(Equiv. 0.594 in.)
Dowel Bushings Pins - 12x40x15.09 mm
Unassembled Diameter (D) Min: 15.34 mm    Unassembled Diameter (D) Max: 15.60 mm    Wall Thickness: 1.45 mm    Rec. Hole Diameter Max: 15.22 mm    Minimum Single Shear: 46.50 kN
Part Number: DB120-151-400
Dowel Bushings Pins - 12x40x15.09 mm
Contact Us | Item Discontinued - Please contact us if you need a large quantity
Quantity Required

Contact Us. These are priced to quit. Please contact us for a quote if you require more.
