SF606-MC3-AF12

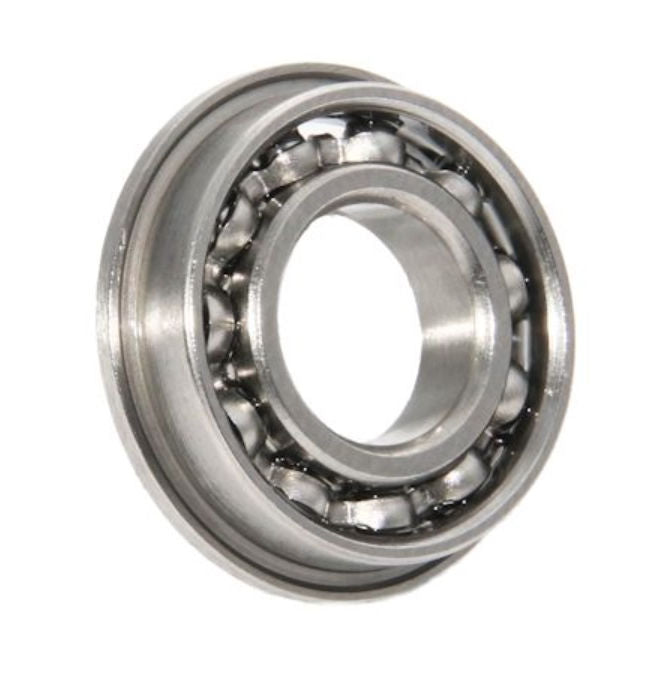

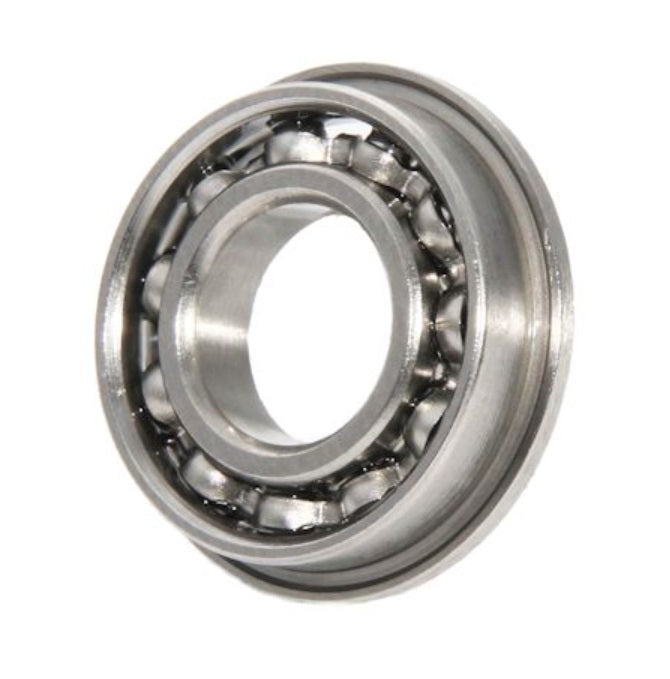

Single Row Ball Bearings - 6x17x6 mm Flanged - Stainless Steel AISI 440C

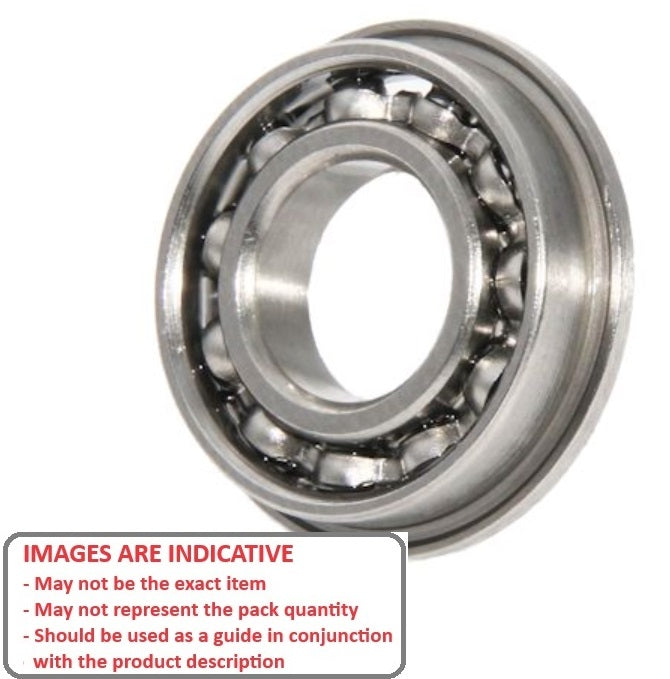

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 6x17x6 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$47.41 AUD
$98.23 AUD $47.41 AUD
Each
Backorder
Order 50 or more for $42.67 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Aug 24, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

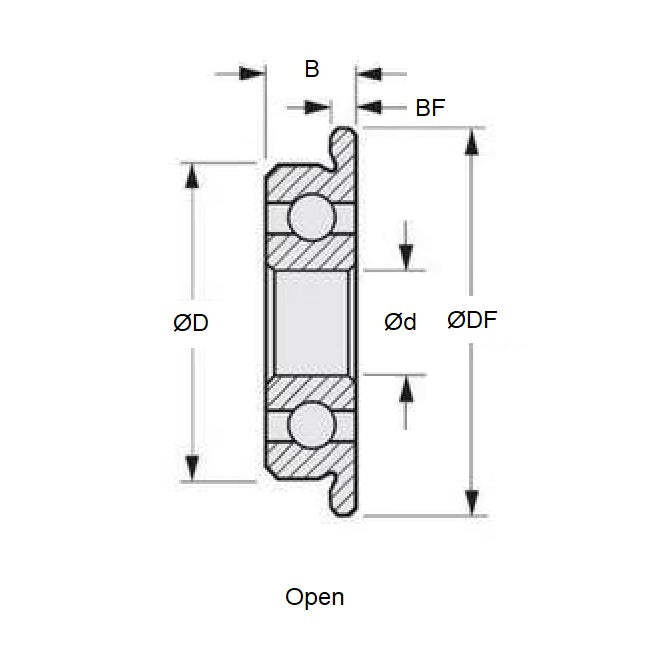

Product Details:

ID (d): 6.000mm
+ 0.000 / - 0.0075
(6.000mm is 0.236 in.)

Stainless Steel AISI 440C
  • OD (D): 17.000mm
    + 0.000 / - 0.0075
    (17.000mm is 0.669 in.)
  • Width (B): 6.000mm
    + 0.000 / - 0.125
    (6.000mm is 0.236 in.)
  • Flange Diameter (DF): 19.000mm
  • Flange Width (BF): 1.200mm
  • Precision Grade: Abec 1
  • Closure Type: Open
  • Bearing Type: Radial Flanged

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Alternative Parts Include:

  • ALTPART 57155K482
  • ISO F606H
  • Alternative To Check FLW606
  • NTN FLW606
  • DDRF1760
  • DD-RF1760
  • SSRF1760
  • SS-RF1760
  • F606BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
