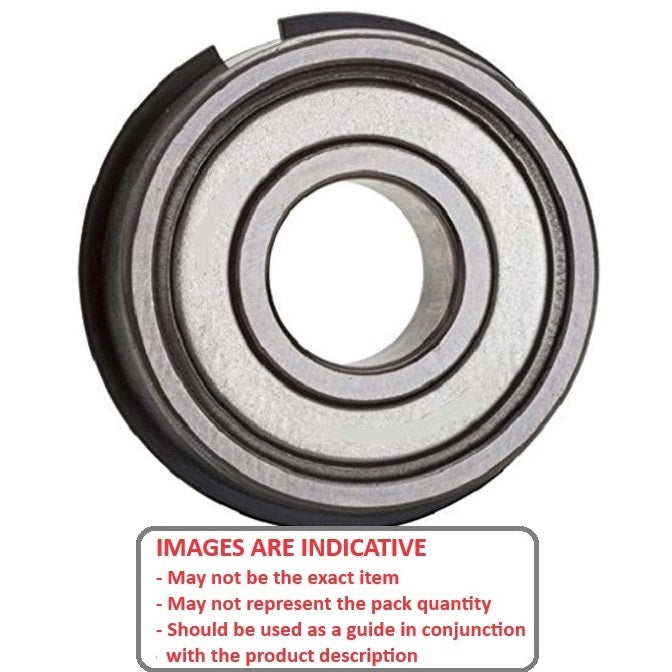

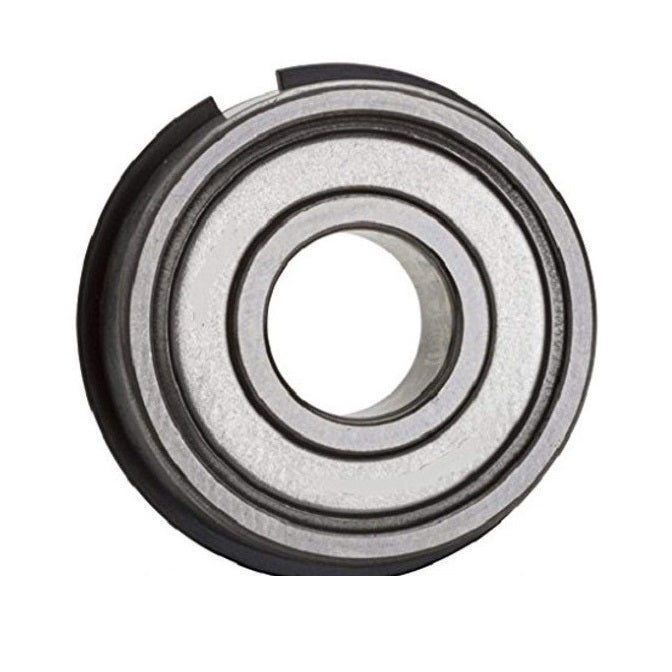

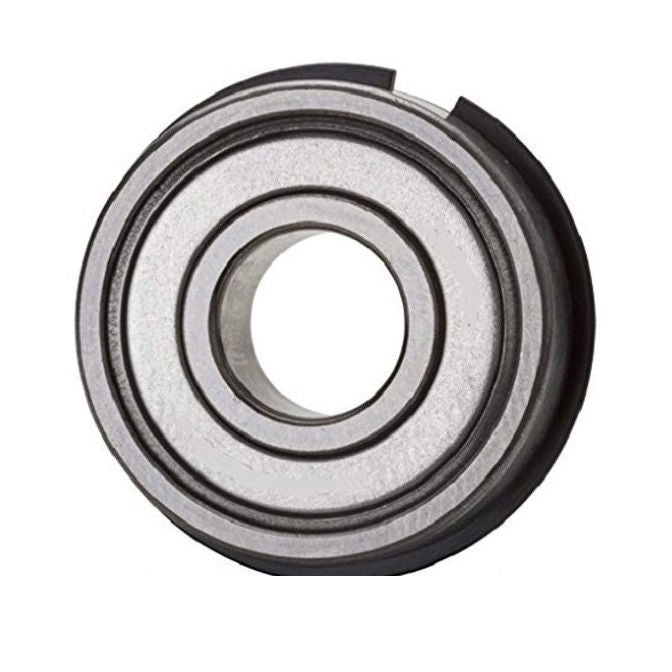

696-ZZ-MC3-NR (Each)
Single Row Ball Bearings - 6x15x5 mm with Snap Ring - Chrome Steel SAE 52100 Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Order 50 or more
for $1.35 AUD Each
Couldn't load pickup availability
6x15x5 mm Single Row Ball Bearings - Chrome Steel SAE 52100 - Sold per Each:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - with Snap Ring - Standard - Chrome Steel
Product Details
This bearing has a snap ring on the OD

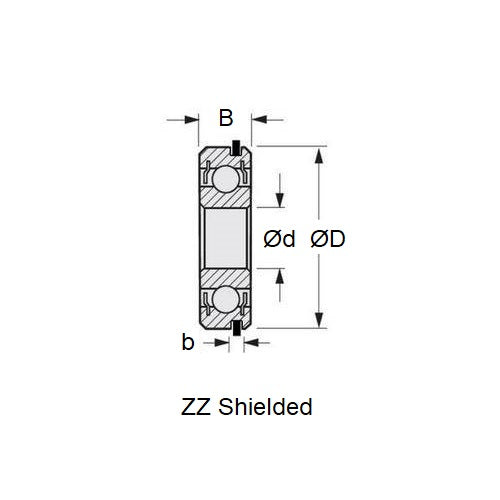

ID (d): 6.000mm
+ 0.000 / - 0.0075
(6.000mm is 0.236 in.)
Chrome Steel SAE 52100
- ID (d): 6.000mm
+ 0.000 / - 0.0075
(6.000mm is 0.236 in.)
- O.D. (D): 15.000mm
+ 0.000 / - 0.0075
(15.000mm is 0.591 in.)
- Width (B): 5.000mm
+ 0.000 / - 0.125
(5.000mm is 0.197 in.)
- Closure Type: ZZ
- Bearing Type: Radial with Snp Ring
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- NTN® SC6A17-ZZNR
- SC6A17ZZNR
- 696ZZNR
- 696BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
696ZZMC3NR, 696
