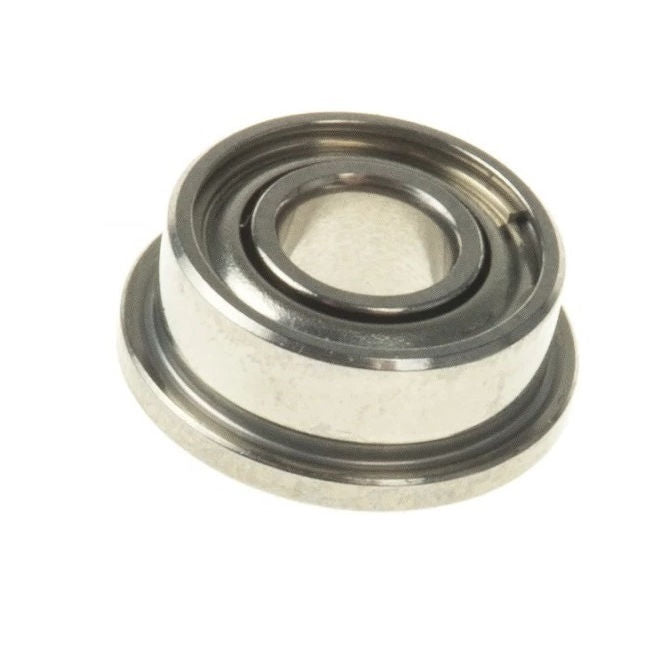

FMR106A-CSN-ZZS-ACO-ECO

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

Product Details

Deleted Item. Available while stocks last.

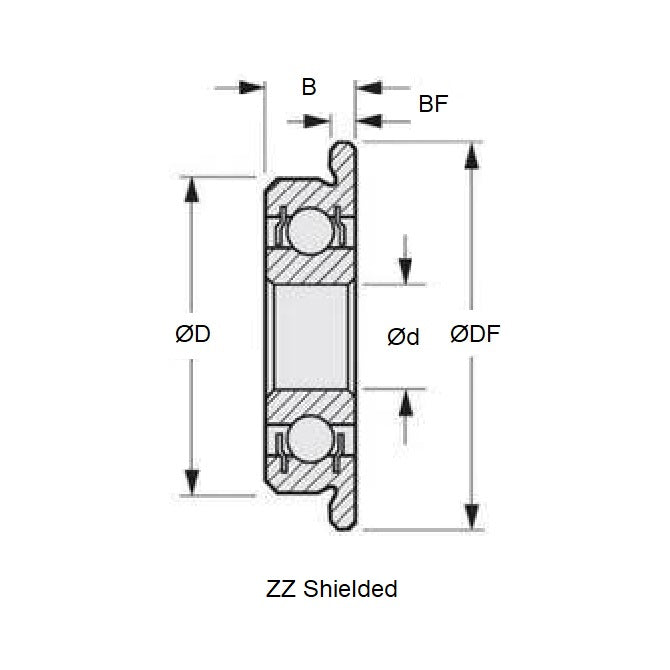

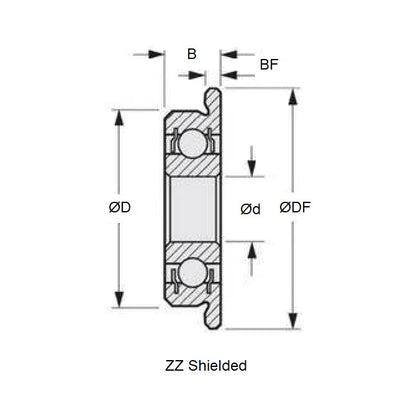

ID (d): 6.000mm
_{(6.000mm is 0.236 in.)}

Chrome Steel SAE 52100 - Ceramic Si3N4 Balls

• ID (d): 6.000mm
  _{(6.000mm is 0.236 in.)}

• OD (D): 10.000mm
  _{(10.000mm is 0.394 in.)}

• Width (B): 3.000mm
  _{(3.000mm is 0.118 in.)}

• Flange Diameter (DF): 11.200mm
• Flange Width (BF): 0.600mm
• Precision Grade: Abec 1
• Closure Type: ZZS
• Bearing Type: Radial Flanged

Brand: ECO
Country of Origin: TW

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Shielded Width A FMR106/3
• Shielded FMR106A / 3
• Similar Part FMR106A-CSN-ZZ-ACO-ECO
• ISO MF106ZZC
• ISO MF106-ZZC
• FMR106ABASIC

Used for

• RC Car Parts
• Academy and MRC - SP-3 Extreme 1/2 Scale EP - Flanged Bearing 6-10-3mm
• Academy and MRC - SP-3 Matiz 1/12 Scale - Flanged Bearing 6-10-3mm
• Academy and MRC - SP-3 X - Flanged Bearing 6-10-3mm
• Cox - Bandito - Flanged Bearing 6-10-3mm
• Cox - Ultra Stock - Flanged Bearing 6-10-3mm
• Cross Fire Force - F1 Electric - Flanged Bearing 6-10-3mm
• GS General Silicone - Storm Pro Gas - Flanged Bearing 6-10-3mm
• HPI - Proceed - Flanged Bearing 6-10-3mm
• HPI - Proceed Update - Flanged Bearing 6-10-3mm
• Kyosho - Montero - Flanged Bearing 6-10-3mm
• NEO - 4WD Sport - Flanged Bearing 6-10-3mm
• NEO - T21 Nitro - Flanged Bearing 6-10-3mm
• NEO - T21 Nitro 4WD Pro - Flanged Bearing 6-10-3mm
• Picco - Integra 1/8 Gas - Flanged Bearing 6-10-3mm
• Picco - Shepherd Speed 1/8 - Flanged Bearing 6-10-3mm
• Royal - Superbike - Flanged Bearing 6-10-3mm
• Serpent - 835 1-10 2WD - Flanged Bearing 6-10-3mm
• Serpent - 835 1-10 4WD - Flanged Bearing 6-10-3mm
• Serpent - 950 - Flanged Bearing 6-10-3mm
• Serpent - 950R - Flanged Bearing 6-10-3mm
• Serpent - 950R With Front Wheel Upgrade - Flanged Bearing 6-10-3mm
• Serpent - 950R With STE Ten and Front Wheel UP - Flanged Bearing 6-10-3mm
• Serpent - 950R With Steering and Tensioner - Flanged Bearing 6-10-3mm
• Serpent - 960 - Flanged Bearing 6-10-3mm
• Serpent - 960 FD - Flanged Bearing 6-10-3mm
• Serpent - Excel 1/8 Gas - Flanged Bearing 6-10-3mm
• Serpent - Impact 10 M2 Challenger - Flanged Bearing 6-10-3mm
• Serpent - Impact 10 Pro 2 - Flanged Bearing 6-10-3mm
• Serpent - Impact M2 Spec 2000 4WD - Flanged Bearing 6-10-3mm
• Serpent - Impulse Pro 1/10 4WD - Flanged Bearing 6-10-3mm
• Serpent - Impulse Street 2 Speed 4WD - Flanged Bearing 6-10-3mm
• Serpent - Impulse Street Spec 4WD - Flanged Bearing 6-10-3mm
• Serpent - Vector - Flanged Bearing 6-10-3mm
• Serpent - Vector Spec 2000 - Flanged Bearing 6-10-3mm
• XTM Racing - Nitro X-Cellerator Racer - Flanged Bearing 6-10-3mm
• XTM Racing - Nitro X-Cellerator RTR 2WD - Flanged Bearing 6-10-3mm
• XTM Racing - X-Cellerator Stadium Truck RTR - Flanged Bearing 6-10-3mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
